Series 105

105 F 40 70 3 P

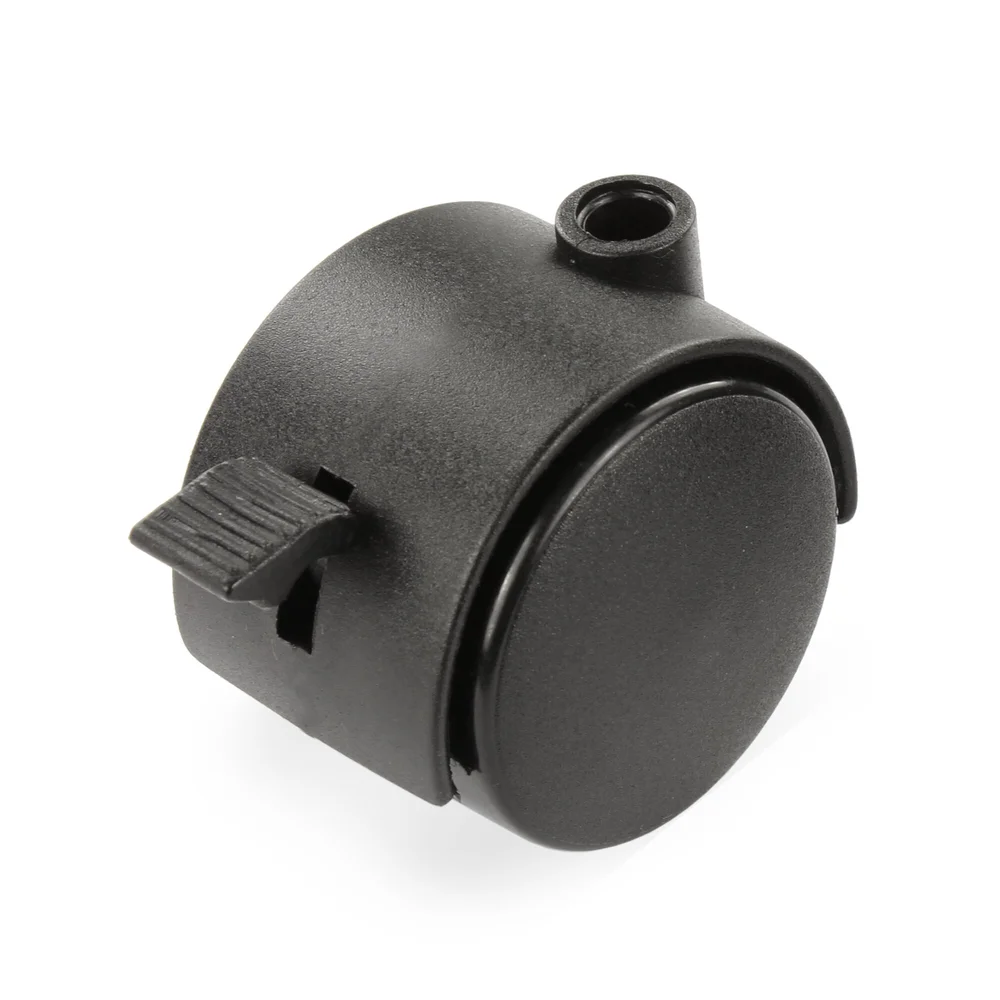

Name: Polyamide double castor 40/2x10 mm, black
SKU: 105 F 40 70 3 P

Intro

Series 105 is our classic double castor for the furniture sector - functional, durable and economical. It shows that a good price-performance ratio can go hand in hand with high quality. Available with 3P wheel (polyamide) - ideal for soft floors such as carpet, or as a 3PU version (polyurethane) for hard floors such as parquet or tiles. Sold hundreds of thousands of times, it stands for reliable function and solid workmanship in office, contract and home furniture.

Technical details

Download data sheet

Polyamide double castor 40/2x10 mm, black

Wheel diameter

40 mm
Load capacity

40 kg
Overall height

56 mm
Plate size

38x38 mm
Wheel width

2x10 mm
Bandage

Hard
Tread material

Polyamide
Housing material

Polyamide
Wheel type

Dual role
Locking device

Locking device
Minimal screw hole removal

25x25 mm

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Bolt length	Plate size	Actions
105 F 40 70 3 P	40 mm	40 kg	56 mm	-	38x38 mm
105 40 30 3 P	40 mm	40 kg	52 mm	11x22 mm	-	105 40 30 3 P from series Series 105
105 40 41 3 P	40 mm	40 kg	52 mm	M10x15 mm	-	105 40 41 3 P from series Series 105
105 40 45 3 P	40 mm	40 kg	52 mm	M8x15 mm	-	105 40 45 3 P from series Series 105
105 40 70 3 P	40 mm	40 kg	56 mm	-	38x38 mm	105 40 70 3 P from series Series 105
105 F 40 30 3 P	40 mm	40 kg	52 mm	11x22 mm	-	105 F 40 30 3 P from series Series 105
105 F 40 41 3 P	40 mm	40 kg	52 mm	M10x15 mm	-	105 F 40 41 3 P from series Series 105
105 F 40 45 3 P	40 mm	40 kg	52 mm	M8x15 mm	-	105 F 40 45 3 P from series Series 105
105 50 30 3 P	50 mm	45 kg	60 mm	11x22 mm	-	105 50 30 3 P from series Series 105
105 50 41 3 P	50 mm	45 kg	60 mm	M10x15 mm	-	105 50 41 3 P from series Series 105
105 50 45 3 P	50 mm	45 kg	60 mm	M8x15 mm	-	105 50 45 3 P from series Series 105
105 50 70 3 P	50 mm	45 kg	64 mm	-	38x38 mm	105 50 70 3 P from series Series 105
105 F 50 30 3 P	50 mm	45 kg	60 mm	11x22 mm	-	105 F 50 30 3 P from series Series 105
105 F 50 41 3 P	50 mm	45 kg	60 mm	M10x15 mm	-	105 F 50 41 3 P from series Series 105
105 F 50 45 3 P	50 mm	45 kg	60 mm	M8x15 mm	-	105 F 50 45 3 P from series Series 105
105 F 50 70 3 P	50 mm	45 kg	64 mm	-	38x38 mm	105 F 50 70 3 P from series Series 105
105 50 30 3 PU	50 mm	45 kg	60 mm	11x22 mm	-	105 50 30 3 PU from series Series 105
105 50 41 3 PU	50 mm	45 kg	60 mm	M10x15 mm	-	105 50 41 3 PU from series Series 105
105 50 45 3 PU	50 mm	45 kg	60 mm	M8x15 mm	-	105 50 45 3 PU from series Series 105
105 50 70 3 PU	50 mm	45 kg	64 mm	-	38x38 mm	105 50 70 3 PU from series Series 105
105 F 50 30 3 PU	50 mm	45 kg	60 mm	11x22 mm	-	105 F 50 30 3 PU from series Series 105
105 F 50 41 3 PU	50 mm	45 kg	60 mm	M10x15 mm	-	105 F 50 41 3 PU from series Series 105
105 F 50 45 3 PU	50 mm	45 kg	60 mm	M8x15 mm	-	105 F 50 45 3 PU from series Series 105
105 F 50 70 3 PU	50 mm	45 kg	64 mm	-	38x38 mm	105 F 50 70 3 PU from series Series 105
105 60 30 3 PU	60 mm	60 kg	71 mm	11x22 mm	-	105 60 30 3 PU from series Series 105
105 60 41 3 PU	60 mm	60 kg	71 mm	M10x15 mm	-	105 60 41 3 PU from series Series 105
105 60 45 3 PU	60 mm	60 kg	71 mm	M8x15 mm	-	105 60 45 3 PU from series Series 105
105 60 70 3 PU	60 mm	60 kg	74 mm	-	38x38 mm	105 60 70 3 PU from series Series 105
105 F 60 30 3 PU	60 mm	60 kg	71 mm	11x22 mm	-	105 F 60 30 3 PU from series Series 105
105 F 60 41 3 PU	60 mm	60 kg	71 mm	M10x15 mm	-	105 F 60 41 3 PU from series Series 105
105 F 60 45 3 PU	60 mm	60 kg	71 mm	M8x15 mm	-	105 F 60 45 3 PU from series Series 105
105 F 60 70 3 PU	60 mm	60 kg	74 mm	-	38x38 mm	105 F 60 70 3 PU from series Series 105
