Series 108

108 F 50 70 3 PU SI

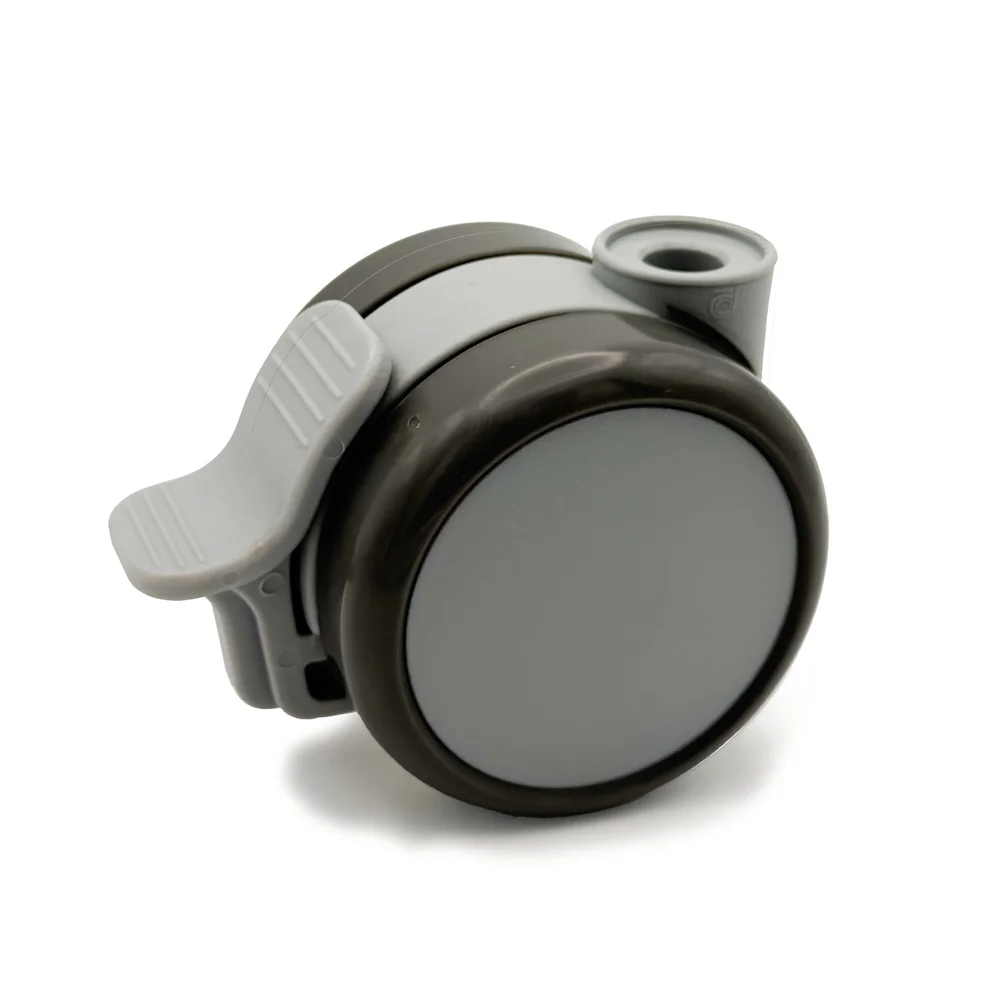

Name: Polyamide double castor 50 mm, grey
SKU: 108 F 50 70 3 PU SI

Intro

Series 108 is a robust furniture castor with quiet, floor-friendly running and is ideal for use on sensitive floors. Two versions are available depending on the floor covering: The version with 3P wheel (polyamide) is ideal for soft floors such as carpet, while the 3PU variant (polyurethane) has been developed for hard floors such as parquet or tiles. A durable solution for modern furniture.

Technical details

Download data sheet

Polyamide double castor 50 mm, grey

Wheel diameter
50 mm
Load capacity
50 kg
Overall height
61 mm
Plate size
38x38 mm
Wheel width
2x12 mm
Bandage
Soft
Tread material
Polyurethane
Housing material
Polyamide
Wheel type
Dual role
Locking device
Locking device
Minimal screw hole removal
25x25 mm

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Bolt length	Plate size	Actions
108 F 50 70 3 PU SI	50 mm	50 kg	61 mm	-	38x38 mm
108 37 30 3 P	37 mm	50 kg	42 mm	11x22 mm	-	108 37 30 3 P from series Series 108
108 37 41 3 P	37 mm	50 kg	42 mm	M10x15 mm	-	108 37 41 3 P from series Series 108
108 37 45 3 P	37 mm	50 kg	42 mm	M8x15 mm	-	108 37 45 3 P from series Series 108
108 37 70 3 P	37 mm	50 kg	45 mm	-	38x38 mm	108 37 70 3 P from series Series 108
108 F 37 30 3 P	37 mm	50 kg	42 mm	11x22 mm	-	108 F 37 30 3 P from series Series 108
108 F 37 41 3 P	37 mm	50 kg	42 mm	M10x15 mm	-	108 F 37 41 3 P from series Series 108
108 F 37 45 3 P	37 mm	50 kg	42 mm	M8x15 mm	-	108 F 37 45 3 P from series Series 108
108 F 37 70 3 P	37 mm	50 kg	45 mm	-	38x38 mm	108 F 37 70 3 P from series Series 108
108 37 30 3 PU	37 mm	50 kg	42 mm	11x22 mm	-	108 37 30 3 PU from series Series 108
108 37 41 3 PU	37 mm	50 kg	42 mm	M10x15 mm	-	108 37 41 3 PU from series Series 108
108 37 45 3 PU	37 mm	50 kg	42 mm	M8x15 mm	-	108 37 45 3 PU from series Series 108
108 37 70 3 PU	37 mm	50 kg	45 mm	-	38x38 mm	108 37 70 3 PU from series Series 108
108 F 37 30 3 PU	37 mm	50 kg	42 mm	11x22 mm	-	108 F 37 30 3 PU from series Series 108
108 F 37 41 3 PU	37 mm	50 kg	42 mm	M10x15 mm	-	108 F 37 41 3 PU from series Series 108
108 F 37 45 3 PU	37 mm	50 kg	42 mm	M8x15 mm	-	108 F 37 45 3 PU from series Series 108
108 F 37 70 3 PU	37 mm	50 kg	45 mm	-	38x38 mm	108 F 37 70 3 PU from series Series 108
108 50 30 3 PU	50 mm	50 kg	58 mm	11x22 mm	-	108 50 30 3 PU from series Series 108
108 50 41 3 PU	50 mm	50 kg	58 mm	M10x15 mm	-	108 50 41 3 PU from series Series 108
108 50 45 3 PU	50 mm	50 kg	58 mm	M8x15 mm	-	108 50 45 3 PU from series Series 108
108 50 70 3 PU	50 mm	50 kg	61 mm	-	38x38 mm	108 50 70 3 PU from series Series 108
108 F 50 30 3 PU	50 mm	50 kg	58 mm	11x22 mm	-	108 F 50 30 3 PU from series Series 108
108 F 50 41 3 PU	50 mm	50 kg	58 mm	M10x15 mm	-	108 F 50 41 3 PU from series Series 108
108 F 50 45 3 PU	50 mm	50 kg	58 mm	M8x15 mm	-	108 F 50 45 3 PU from series Series 108
108 F 50 70 3 PU	50 mm	50 kg	61 mm	-	38x38 mm	108 F 50 70 3 PU from series Series 108
108 50 30 3 PU SI	50 mm	50 kg	58 mm	11x22 mm	-	108 50 30 3 PU SI from series Series 108
108 50 41 3 PU SI	50 mm	50 kg	58 mm	M10x15 mm	-	108 50 41 3 PU SI from series Series 108
108 50 45 3 PU SI	50 mm	50 kg	58 mm	M8x15 mm	-	108 50 45 3 PU SI from series Series 108
108 50 70 3 PU SI	50 mm	50 kg	61 mm	-	38x38 mm	108 50 70 3 PU SI from series Series 108
108 F 50 30 3 PU SI	50 mm	50 kg	58 mm	11x22 mm	-	108 F 50 30 3 PU SI from series Series 108
108 F 50 41 3 PU SI	50 mm	50 kg	58 mm	M10x15 mm	-	108 F 50 41 3 PU SI from series Series 108
108 F 50 45 3 PU SI	50 mm	50 kg	58 mm	M8x15 mm	-	108 F 50 45 3 PU SI from series Series 108
108 65 30 3 PU	65 mm	60 kg	72 mm	11x22 mm	-	108 65 30 3 PU from series Series 108
108 65 41 3 PU	65 mm	60 kg	72 mm	M10x15 mm	-	108 65 41 3 PU from series Series 108
108 65 45 3 PU	65 mm	60 kg	72 mm	M8x15 mm	-	108 65 45 3 PU from series Series 108
108 65 70 3 PU	65 mm	60 kg	77 mm	-	60x60 mm	108 65 70 3 PU from series Series 108
108 F 65 30 3 PU	65 mm	60 kg	72 mm	11x22 mm	-	108 F 65 30 3 PU from series Series 108
108 F 65 41 3 PU	65 mm	60 kg	72 mm	M10x15 mm	-	108 F 65 41 3 PU from series Series 108
108 F 65 45 3 PU	65 mm	60 kg	72 mm	M8x15 mm	-	108 F 65 45 3 PU from series Series 108
108 F 65 70 3 PU	65 mm	60 kg	77 mm	-	60x60 mm	108 F 65 70 3 PU from series Series 108
108 65 30 3 PU SI	65 mm	60 kg	72 mm	11x22 mm	-	108 65 30 3 PU SI from series Series 108
108 65 41 3 PU SI	65 mm	60 kg	72 mm	M10x15 mm	-	108 65 41 3 PU SI from series Series 108
108 65 45 3 PU SI	65 mm	60 kg	72 mm	M8x15 mm	-	108 65 45 3 PU SI from series Series 108
108 65 70 3 PU SI	65 mm	60 kg	77 mm	-	60x60 mm	108 65 70 3 PU SI from series Series 108
108 F 65 30 3 PU SI	65 mm	60 kg	72 mm	11x22 mm	-	108 F 65 30 3 PU SI from series Series 108
108 F 65 41 3 PU SI	65 mm	60 kg	72 mm	M10x15 mm	-	108 F 65 41 3 PU SI from series Series 108
108 F 65 45 3 PU SI	65 mm	60 kg	72 mm	M8x15 mm	-	108 F 65 45 3 PU SI from series Series 108
108 F 65 70 3 PU SI	65 mm	60 kg	77 mm	-	60x60 mm	108 F 65 70 3 PU SI from series Series 108
108 75 30 3 PU	75 mm	70 kg	85 mm	11x22 mm	-	108 75 30 3 PU from series Series 108
108 75 41 3 PU	75 mm	70 kg	85 mm	M10x15 mm	-	108 75 41 3 PU from series Series 108
108 75 45 3 PU	75 mm	70 kg	85 mm	M8x15 mm	-	108 75 45 3 PU from series Series 108
108 75 70 3 PU	75 mm	70 kg	92 mm	-	60x60 mm	108 75 70 3 PU from series Series 108
108 F 75 30 3 PU	75 mm	70 kg	85 mm	11x22 mm	-	108 F 75 30 3 PU from series Series 108
108 F 75 41 3 PU	75 mm	70 kg	85 mm	M10x15 mm	-	108 F 75 41 3 PU from series Series 108
108 F 75 45 3 PU	75 mm	70 kg	85 mm	M8x15 mm	-	108 F 75 45 3 PU from series Series 108
108 F 75 70 3 PU	75 mm	70 kg	92 mm	-	60x60 mm	108 F 75 70 3 PU from series Series 108
108 75 30 3 PU SI	75 mm	70 kg	85 mm	11x22 mm	-	108 75 30 3 PU SI from series Series 108
108 75 41 3 PU SI	75 mm	70 kg	85 mm	M10x15 mm	-	108 75 41 3 PU SI from series Series 108
108 75 45 3 PU SI	75 mm	70 kg	85 mm	M8x15 mm	-	108 75 45 3 PU SI from series Series 108
108 75 70 3 PU SI	75 mm	70 kg	92 mm	-	60x60 mm	108 75 70 3 PU SI from series Series 108
108 F 75 30 3 PU SI	75 mm	70 kg	85 mm	11x22 mm	-	108 F 75 30 3 PU SI from series Series 108
108 F 75 41 3 PU SI	75 mm	70 kg	85 mm	M10x15 mm	-	108 F 75 41 3 PU SI from series Series 108
108 F 75 45 3 PU SI	75 mm	70 kg	85 mm	M8x15 mm	-	108 F 75 45 3 PU SI from series Series 108
108 F 75 70 3 PU SI	75 mm	70 kg	92 mm	-	60x60 mm	108 F 75 70 3 PU SI from series Series 108
