Series 120

120 F 75 45 3 PU

Name: Polyamide double castor 75 mm, black
SKU: 120 F 75 45 3 PU

Intro

The 120 series impresses with its modern design, a high-quality housing cover and an excellent price-performance ratio. Ideal for anyone who wants to give their furniture a stylish, functional accent - whether in the living area, office or contract furniture.

Technical details

Download data sheet

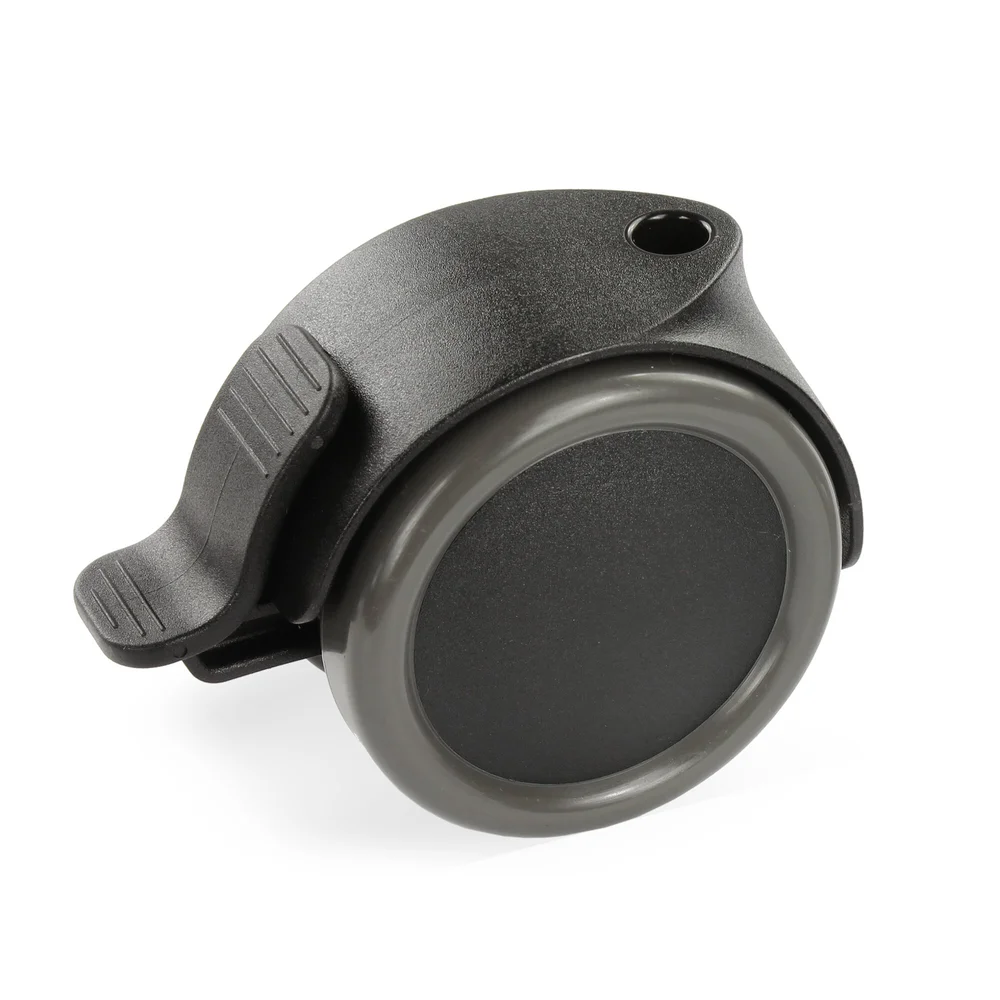

Polyamide double castor 75 mm, black

Wheel diameter: 75 mm
Load capacity: 70 kg
Overall height: 85 mm
Bolt length: M8x15 mm
Wheel width: 2x10 mm
Bandage
Soft
Tread material
Polyurethane
Housing material
Polyamide
Wheel type
Dual role
Locking device
Locking device

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Bolt length	Actions
120 F 75 45 3 PU	75 mm	70 kg	85 mm	-	M8x15 mm
120 50 30 3 PU	50 mm	50 kg	60 mm	-	11x22 mm	120 50 30 3 PU from series Series 120
120 50 41 3 PU	50 mm	50 kg	60 mm	-	M10x15 mm	120 50 41 3 PU from series Series 120
120 50 45 3 PU	50 mm	50 kg	60 mm	-	M8x15 mm	120 50 45 3 PU from series Series 120
120 50 70 3 PU	50 mm	50 kg	65 mm	38x38 mm	-	120 50 70 3 PU from series Series 120
120 F 50 30 3 PU	50 mm	50 kg	60 mm	-	11x22 mm	120 F 50 30 3 PU from series Series 120
120 F 50 41 3 PU	50 mm	50 kg	60 mm	-	M10x15 mm	120 F 50 41 3 PU from series Series 120
120 F 50 45 3 PU	50 mm	50 kg	60 mm	-	M8x15 mm	120 F 50 45 3 PU from series Series 120
120 F 50 70 3 PU	50 mm	50 kg	65 mm	38x38 mm	-	120 F 50 70 3 PU from series Series 120
120 65 30 3 PU	65 mm	60 kg	75 mm	-	11x22 mm	120 65 30 3 PU from series Series 120
120 65 41 3 PU	65 mm	60 kg	75 mm	-	M10x15 mm	120 65 41 3 PU from series Series 120
120 65 45 3 PU	65 mm	60 kg	75 mm	-	M8x15 mm	120 65 45 3 PU from series Series 120
120 65 70 3 PU	65 mm	60 kg	83 mm	60x60 mm	-	120 65 70 3 PU from series Series 120
120 F 65 30 3 PU	65 mm	60 kg	75 mm	-	11x22 mm	120 F 65 30 3 PU from series Series 120
120 F 65 41 3 PU	65 mm	60 kg	75 mm	-	M10x15 mm	120 F 65 41 3 PU from series Series 120
120 F 65 45 3 PU	65 mm	60 kg	75 mm	-	M8x15 mm	120 F 65 45 3 PU from series Series 120
120 F 65 70 3 PU	65 mm	60 kg	83 mm	60x60 mm	-	120 F 65 70 3 PU from series Series 120
120 75 30 3 PU	75 mm	70 kg	85 mm	-	11x22 mm	120 75 30 3 PU from series Series 120
120 75 41 3 PU	75 mm	70 kg	85 mm	-	M10x15 mm	120 75 41 3 PU from series Series 120
120 75 45 3 PU	75 mm	70 kg	85 mm	-	M8x15 mm	120 75 45 3 PU from series Series 120
120 75 70 3 PU	75 mm	70 kg	92 mm	60x60 mm	-	120 75 70 3 PU from series Series 120
120 F 75 30 3 PU	75 mm	70 kg	85 mm	-	11x22 mm	120 F 75 30 3 PU from series Series 120
120 F 75 41 3 PU	75 mm	70 kg	85 mm	-	M10x15 mm	120 F 75 41 3 PU from series Series 120
120 F 75 70 3 PU	75 mm	70 kg	92 mm	60x60 mm	-	120 F 75 70 3 PU from series Series 120
