Series 155 DC

155 DC 60 30 3 PU CH

Add to watch list

155 DC 60 30 3 PU CH

Intro

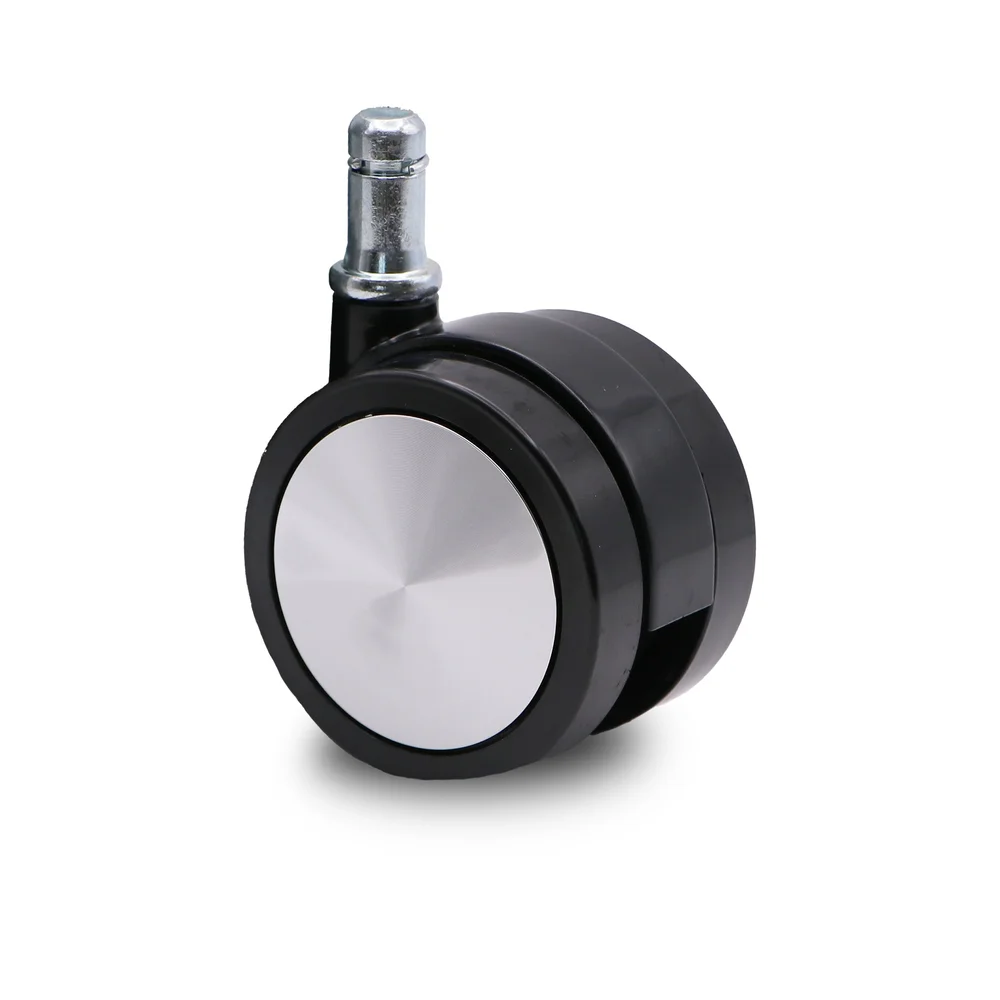

The 155 series is a modern chair castor that elegantly combines design and functionality. It is equipped with a no-noise pin that ensures quiet rolling and a load-dependent brake that automatically stops the chair when unloaded - for greater safety and comfort. Two versions are available depending on the floor covering: The version with 3P wheel is ideal for soft floors such as carpet, while the 3PU version has been developed for hard floors such as parquet or tiles.

Technical details

Chair castor 60 mm, polyamide, black

  • Wheel diameter
    Wheel diameter
    60 mm
  • Load capacity
    Load capacity
    60 kg
  • Overall height
    Overall height
    68 mm
  • Bolt length
    Bolt length
    11x22 mm
  • Wheel width
    Wheel width
    2x12 mm
  • Bandage
    Soft
  • Tread material
    Polyurethane
  • Housing material
    Polyamide
  • Wheel type
    Dual role
  • Neck
    16 mm
  • Locking device
    -
155 DC 60 30 3 PU CH

All product variants

Product nameWheel diameterLoad capacityOverall heightBolt lengthActions
155 DC 60 30 3 PU CH

155 DC 60 30 3 PU CH

60 mm60 kg68 mm11x22 mm
60 mm60 kg68 mm11x22 mm
155 DC 60 30 3 PU S from series Series 155 DC
