Series 155 Z

155 Z 50 41 3 P U

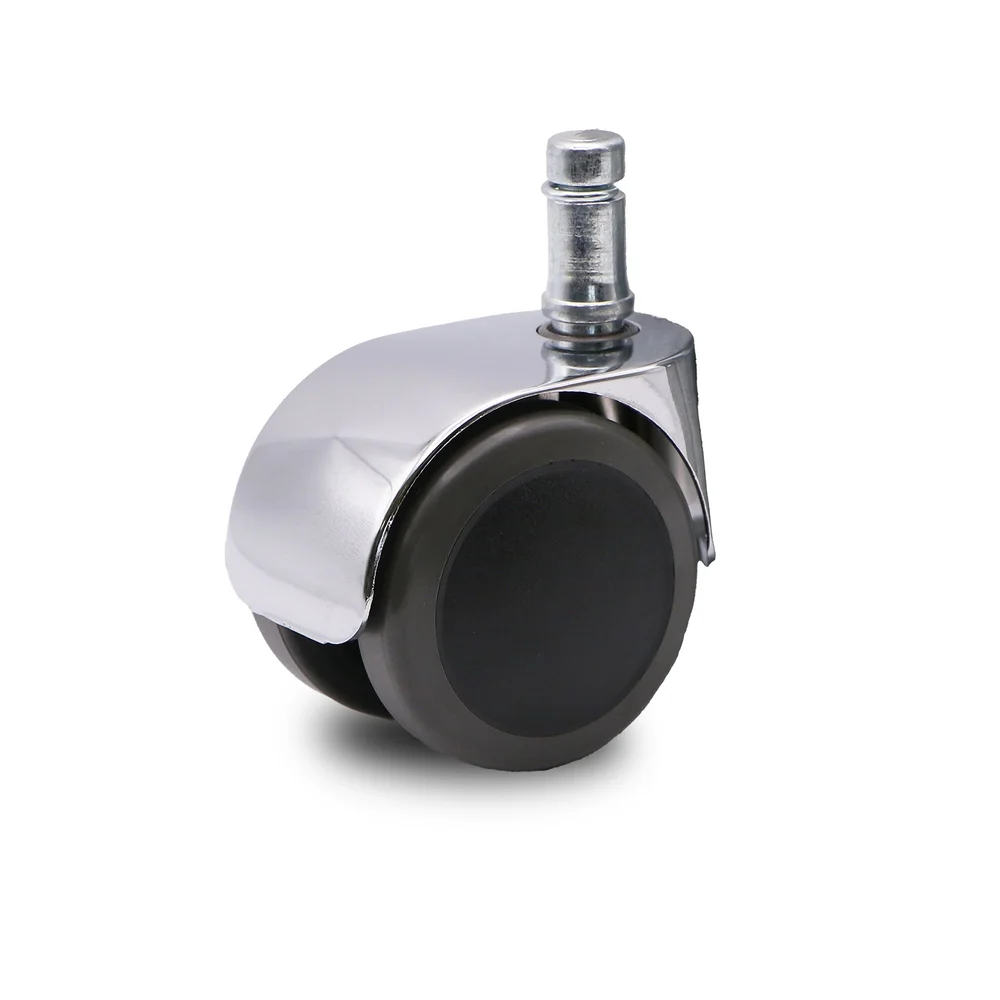

Name: Chair double castor, die-cast zinc
SKU: 155 Z 50 41 3 P U

Intro

Series 155 is a modern chair castor that elegantly combines design and functionality. It is equipped with a no-noise pin that ensures quiet rolling and a load-dependent brake that automatically stops the chair when unloaded - for greater safety and comfort. Two versions are available depending on the floor covering: The version with 3P wheel is ideal for soft floors such as carpet, while the 3PU version has been developed for hard floors such as parquet or tiles.

Technical details

Download data sheet

Chair double castor, die-cast zinc

Wheel diameter

50 mm
Load capacity

50 kg
Overall height

63 mm
Bolt length

M10x15 mm
Wheel width

2x10 mm
Bandage

Soft
Tread material

Polyurethane
Housing material

Zinc die casting
Wheel type

Dual role
Locking device

-

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Bolt length	Actions
155 Z 50 41 3 P U	50 mm	50 kg	63 mm	M10x15 mm
155 Z 50 41 3 P	50 mm	50 kg	63 mm	M10x15 mm	155 Z 50 41 3 P from series Series 155 Z
155 Z 50 30 3 P	50 mm	50 kg	60 mm	11x22 mm	155 Z 50 30 3 P from series Series 155 Z
155 Z 50 30 3 P U	50 mm	50 kg	60 mm	11x22 mm	155 Z 50 30 3 P U from series Series 155 Z
