Series 155

155 50 35 3 P U T

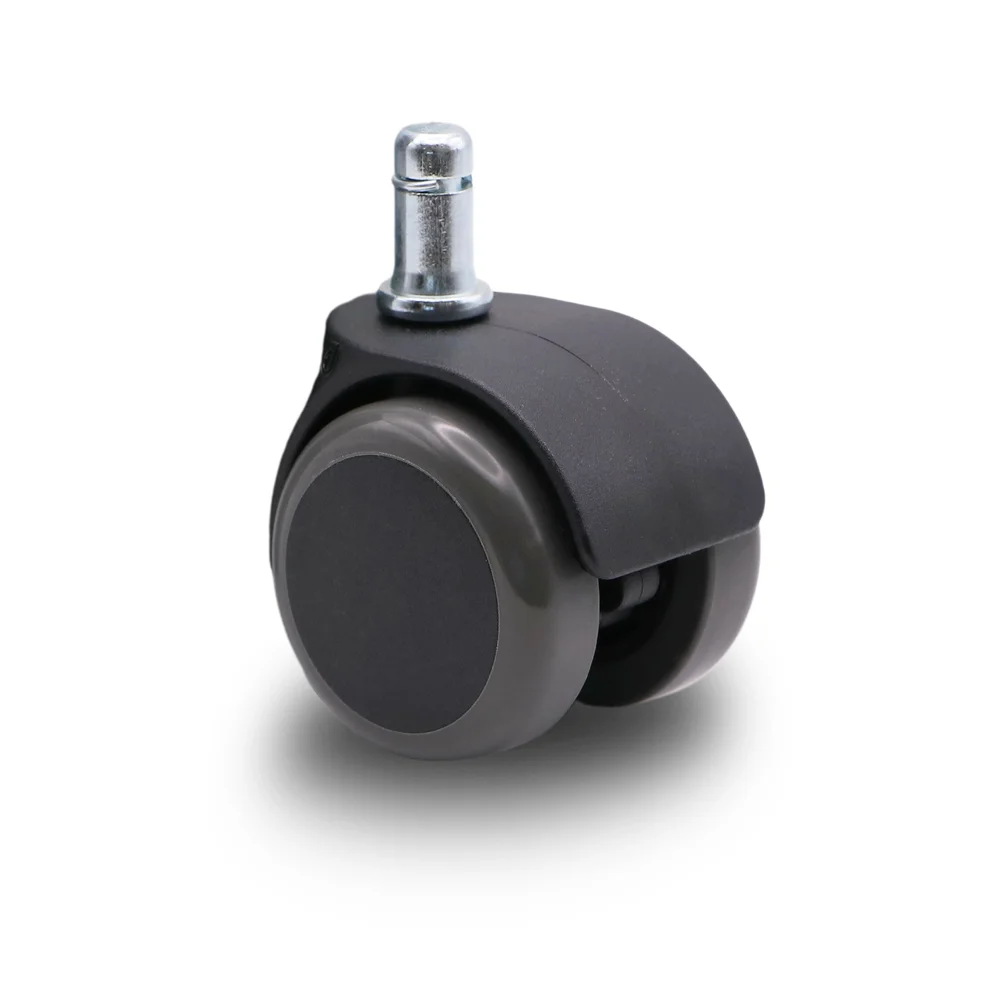

Name: Chair double castor, polyamide, black
SKU: 155 50 35 3 P U T

Intro

Series 155 is a modern chair castor that elegantly combines design and functionality. It is equipped with a no-noise pin that ensures quiet rolling and a load-dependent brake that automatically stops the chair when unloaded - for greater safety and comfort. Two versions are available depending on the floor covering: The version with 3P wheel is ideal for soft floors such as carpet, while the 3PU version has been developed for hard floors such as parquet or tiles.

Technical details

Download data sheet

Chair double castor, polyamide, black

Wheel diameter
50 mm
Load capacity
50 kg
Overall height
60 mm
Bolt length
10x22 mm
Wheel width
2x10 mm
Bandage
Hard
Tread material
Polyurethane
Housing material
Polyamide
Wheel type
Dual role
Locking device
-

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Bolt length	Actions
155 50 35 3 P U T	50 mm	50 kg	60 mm	10x22 mm
155 50 30 3 P J	50 mm	50 kg	57 mm	11x22 mm	155 50 30 3 P J from series Series 155
155 50 30 3 P T	50 mm	50 kg	60 mm	11x22 mm	155 50 30 3 P T from series Series 155
155 50 35 3 P T	50 mm	50 kg	60 mm	10x22 mm	155 50 35 3 P T from series Series 155
155 50 41 3 P T	50 mm	50 kg	63 mm	M10x15 mm	155 50 41 3 P T from series Series 155
155 50 30 3 P U J	50 mm	50 kg	57 mm	11x22 mm	155 50 30 3 P U J from series Series 155
155 50 30 3 P U T	50 mm	50 kg	60 mm	11x22 mm	155 50 30 3 P U T from series Series 155
155 50 41 3 P U T	50 mm	50 kg	63 mm	M10x15 mm	155 50 41 3 P U T from series Series 155
155 50 30 3 PU ELF	50 mm	50 kg	60 mm	11x22 mm	155 50 30 3 PU ELF from series Series 155
155 50 35 3 PU ELF	50 mm	50 kg	60 mm	10x22 mm	155 50 35 3 PU ELF from series Series 155
155 60 30 3 P	60 mm	50 kg	70 mm	11x22 mm	155 60 30 3 P from series Series 155
155 60 30 3 P U	60 mm	50 kg	70 mm	11x22 mm	155 60 30 3 P U from series Series 155
155 65 30 3 P	65 mm	50 kg	70 mm	11x22 mm	155 65 30 3 P from series Series 155
155 65 30 3 PU	65 mm	50 kg	70 mm	11x22 mm	155 65 30 3 PU from series Series 155
155 65 30 3 PU ELF	65 mm	50 kg	60 mm	11x22 mm	155 65 30 3 PU ELF from series Series 155
