Series 190

190 65 45 3 PU

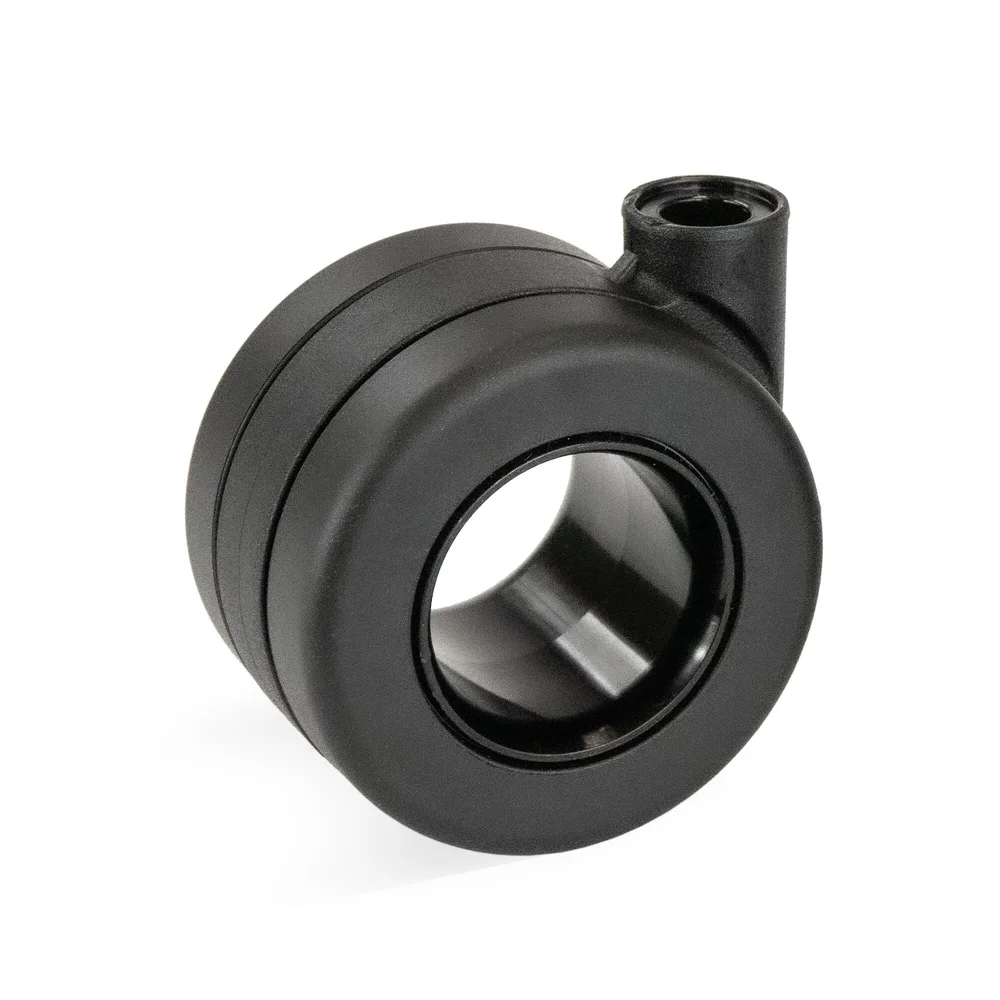

Name: Polyamide double castor 65 mm
SKU: 190 65 45 3 PU

Intro

Series 190 brings a breath of fresh air to furniture design: a stylish openwork wheel look creates a modern look and makes this castor a real design statement. Whether in office furniture, stores or living areas - Series 190 impresses with its modern aesthetics, solid workmanship and reliable running properties.

Technical details

Download data sheet

Polyamide double castor 65 mm

Wheel diameter

65 mm
Load capacity

50 kg
Overall height

70 mm
Bolt length

M8x15 mm
Wheel width

2x13 mm
Bandage

Soft
Tread material

Polyurethane
Housing material

Polyamide
Wheel type

Dual role
Locking device

-

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Bolt length	Plate size	Actions
190 65 45 3 PU	65 mm	50 kg	70 mm	M8x15 mm	-
190 65 30 3 PU	65 mm	50 kg	70 mm	11x22 mm	-	190 65 30 3 PU from series Series 190
190 65 41 3 PU	65 mm	50 kg	70 mm	M10x15 mm	-	190 65 41 3 PU from series Series 190
190 65 70 3 PU	65 mm	50 kg	73 mm	-	60x60 mm	190 65 70 3 PU from series Series 190
190 F 65 30 3 PU	65 mm	50 kg	70 mm	11x22 mm	-	190 F 65 30 3 PU from series Series 190
190 F 65 41 3 PU	65 mm	50 kg	70 mm	M10x15 mm	-	190 F 65 41 3 PU from series Series 190
190 F 65 45 3 PU	65 mm	50 kg	70 mm	M8x15 mm	-	190 F 65 45 3 PU from series Series 190
190 F 65 70 3 PU	65 mm	50 kg	73 mm	-	60x60 mm	190 F 65 70 3 PU from series Series 190
