Series 600 - 3 PUK

600 T 200 70 3 PUK

Add to watch list

600 T 200 70 3 PUK

Intro

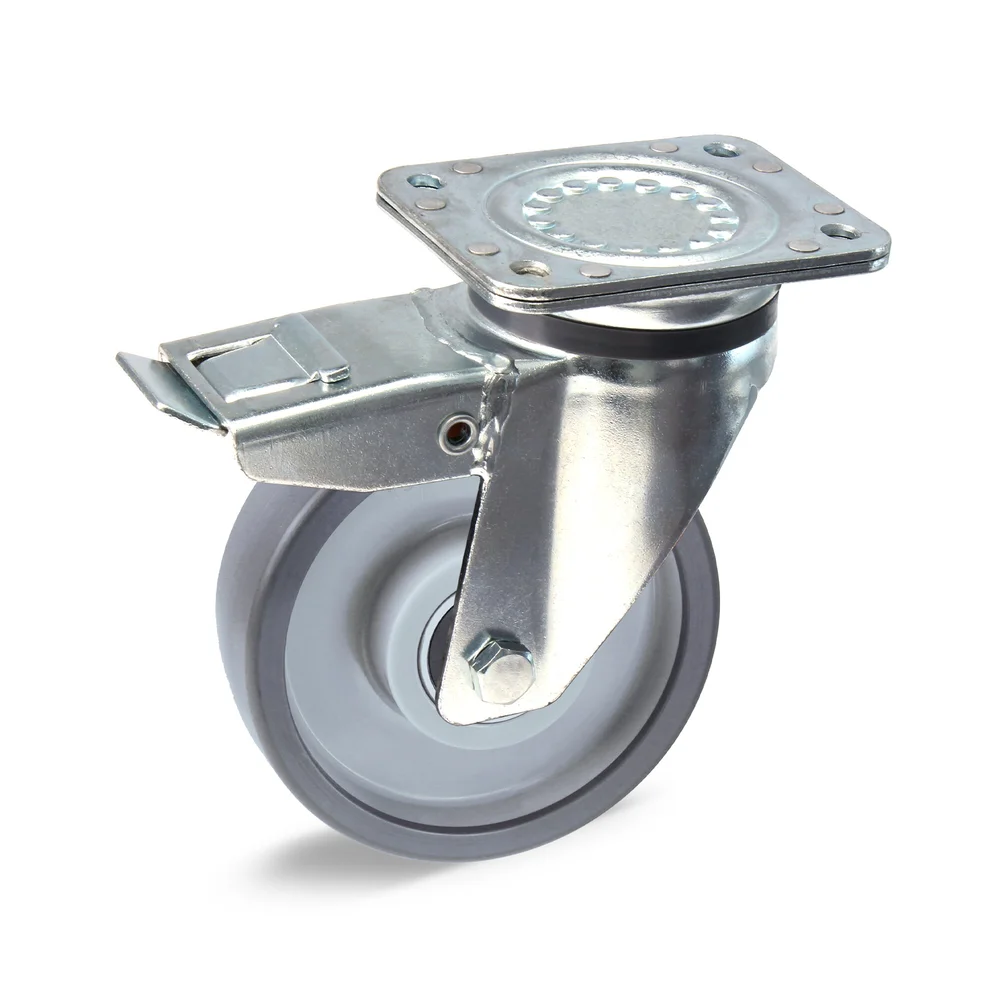

Series 600 3PUK - This heavy-duty castor is equipped with a gray polyamide rim, a stainless steel ball bearing and a dark gray polyurethane drum. The combination ensures quiet, non-marking running, high abrasion resistance and excellent chemical resistance. Ideal for intensive industrial use, the 600 3PUK impresses with its reliability, high load capacity and smooth movement even under full load.

Technical details

Heavy-duty swivel castor 200/45 mm, galvanised

  • Wheel diameter
    Wheel diameter
    200 mm
  • Load capacity
    Load capacity
    500 kg
  • Overall height
    Overall height
    245 mm
  • Plate size
    Plate size
    135x110 mm
  • Wheel width
    Wheel width
    45 mm
  • Screw hole diameter
    10.5 mm
  • Tread material
    Polyurethane
  • Housing material
    Sheet steel
  • Wheel type
    Swivel castor
  • Warehouse
    Ball bearing
  • Locking device
    Total brakes
  • Minimal screw hole removal
    Minimal screw hole removal
    105x80 mm
  • Running surface Shore
    95
600 T 200 70 3 PUK

All product variants

Product nameWheel diameterLoad capacityOverall heightPlate sizeActions
600 T 200 70 3 PUK

600 T 200 70 3 PUK

200 mm500 kg245 mm135x110 mm
80 mm250 kg108 mm105x80 mm
600 80 70 3 PUK from series Series 600 - 3 PUK
100 mm250 kg130 mm105x80 mm
600 100 70 3 PUK from series Series 600 - 3 PUK
125 mm300 kg155 mm105x80 mm
600 125 70 3 PUK from series Series 600 - 3 PUK
150 mm450 kg210 mm135x110 mm
600 150 70 3 PUK from series Series 600 - 3 PUK
200 mm500 kg245 mm135x110 mm
600 200 70 3 PUK from series Series 600 - 3 PUK
80 mm250 kg108 mm105x80 mm
600 T 80 70 3 PUK from series Series 600 - 3 PUK
100 mm250 kg130 mm105x80 mm
600 T 100 70 3 PUK from series Series 600 - 3 PUK
125 mm300 kg155 mm105x80 mm
600 T 125 70 3 PUK from series Series 600 - 3 PUK
150 mm450 kg210 mm135x110 mm
600 T 150 70 3 PUK from series Series 600 - 3 PUK
80 mm250 kg108 mm105x80 mm
620 80 70 3 PUK from series Series 600 - 3 PUK
100 mm250 kg130 mm105x80 mm
620 100 70 3 PUK from series Series 600 - 3 PUK
125 mm300 kg155 mm105x80 mm
620 125 70 3 PUK from series Series 600 - 3 PUK
150 mm450 kg210 mm135x110 mm
620 150 70 3 PUK from series Series 600 - 3 PUK
200 mm500 kg245 mm135x110 mm
620 200 70 3 PUK from series Series 600 - 3 PUK
