TX Flip

TX R 70.639 393 S FLIP ohne Platte

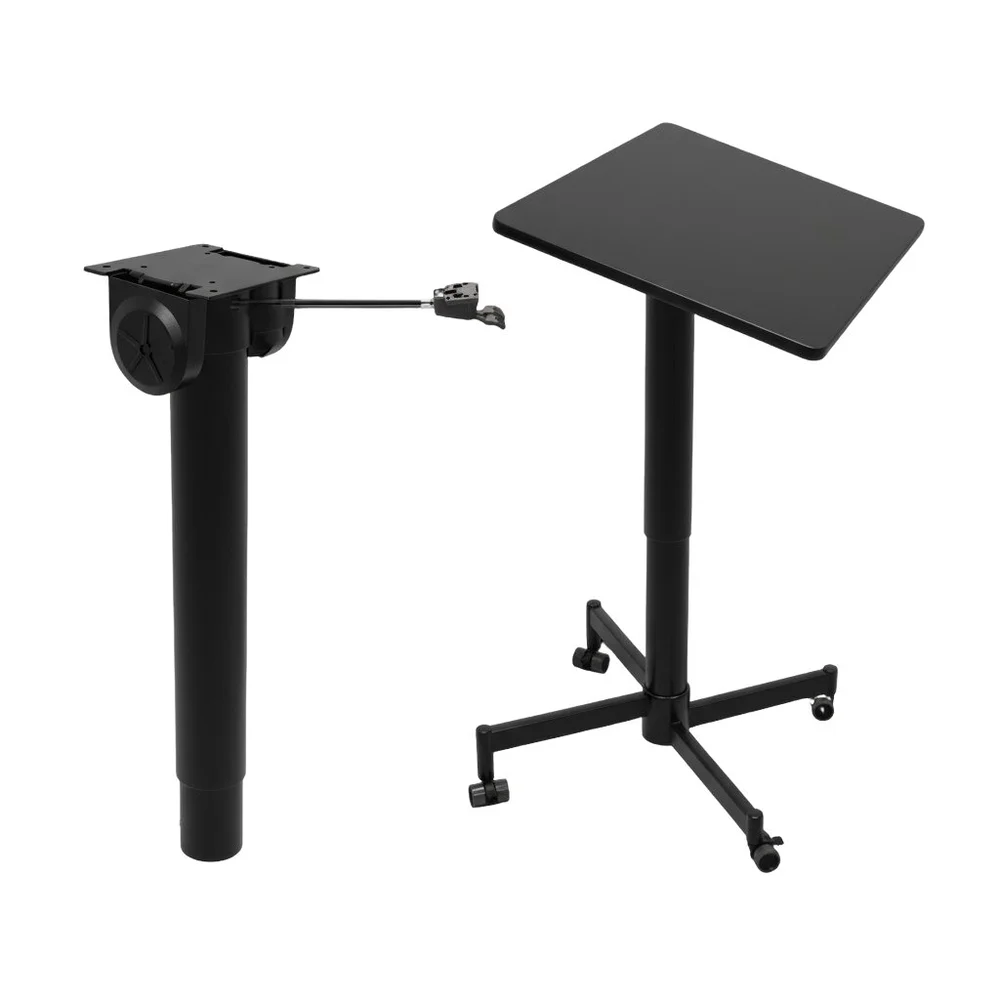

Name: Folding table column with gas lift, black
SKU: TX R 70.639 393 S FLIP ohne Platte

Intro

The TX Flip table is the smart solution for flexible spaces: the table top can be folded down and the frame is infinitely height-adjustable. Ideal for seminar areas, hotel lobbies or conference rooms. Several tables can be pushed together to save space. Can be ordered with or without a top - for maximum design freedom combined with comfort and function. Our matching castors from the 118 series are shown here.

Technical details

Download data sheet

Folding table column with gas lift, black

Min. height

645 mm
Max height

1030 mm
Connection table top

131,5x131,5 mm
Surface

powdered
Colour

black
baseHeight

95,5 mm
Width

487 mm
Length

487
diameterBase

675 mm
connectionWheels

M8x15 mm
Outer tubediameter

77 mm
Length Bowden cable

ca. 360mm mm
Stroke

385 mm
Operation

through release lever
Twistlock

integrated
Load capacity / (dynamic)

100 (15) kg
Foot section connection

3 x M6, Ø 58mm mm

All product variants

Product name	Actions
TX R 70.639 393 S FLIP ohne Platte
TX SET WEISS FLIP	TX SET WEISS FLIP from series TX Flip
TX SET SCHWARZ FLIP	TX SET SCHWARZ FLIP from series TX Flip
TX R 70.639 393 W FLIP ohne Platte	TX R 70.639 393 W FLIP ohne Platte from series TX Flip
