Series M 320 DT

M 320 DT 75 32x50 1x30° TK

Add to watch list

M 320 DT 75 32x50 1x30° TK

Intro

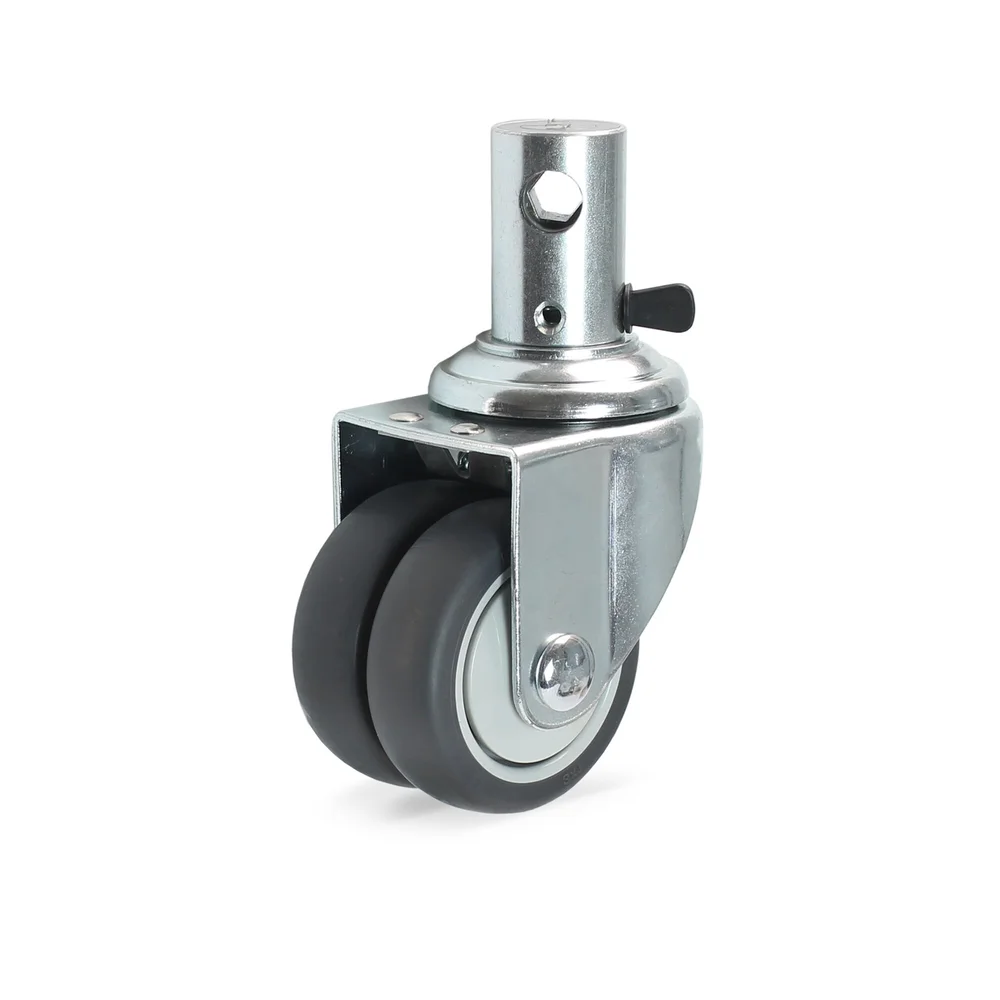

The M320 DF T is a medical double castor with total lock that locks both the wheel and the swivel head at the same time - for absolute stability. The housing is made of high-quality plastic and the double-row ball and cage assembly in the swivel head ensures smooth and precise movement. The plain bearing wheels are fitted with quiet, floor-friendly polyurethane tyres. Thanks to central actuation via a control cam, the castor is ideal for hospital beds, examination equipment or medical furniture where stability and hygiene are crucial.

Technical details

Sheet steel double castor 75 mm, galvanised

  • Wheel diameter
    Wheel diameter
    75 mm
  • Load capacity
    Load capacity
    100 kg
  • Overall height
    Overall height
    110 mm
  • Bolt length
    Bolt length
    32x50 mm
  • Wheel width
    Wheel width
    50 mm
  • Tread material
    thermoplastic rubber
  • Housing material
    Steel
  • Wheel type
    Dual role
  • Warehouse
    Ball bearing
  • Locking device
    Total brakes
  • Running surface Shore
    95
M 320 DT 75 32x50 1x30° TK
