Series 253 - 5 K ELF

253 T 75 70 5 K ELF

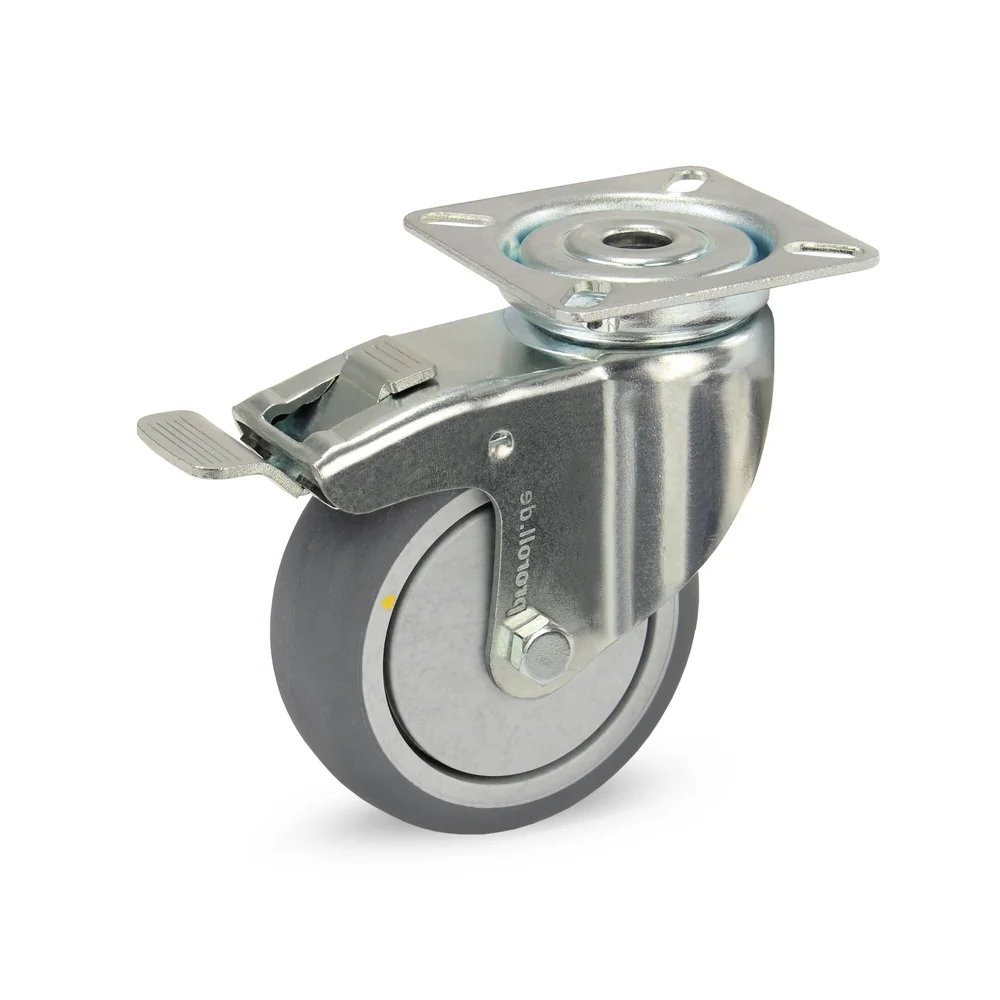

Name: Apparatus castor 75/23 mm, galvanised
SKU: 253 T 75 70 5 K ELF

Intro

Series 253 5 K ELF is specially designed for use in ESD-protected areas. Equipped with an electrically conductive, gray TPR bandage, ball bearing and plastic rim, it enables safe, non-marking running while simultaneously dissipating static charges. The integrated plastic thread guard provides additional protection against soiling

Technical details

Download data sheet

Apparatus castor 75/23 mm, galvanised

Wheel diameter

75 mm
Load capacity

60 kg
Overall height

100 mm
Plate size

60x60 mm
Wheel width

23 mm
Screw hole diameter

6 mm
Tread material

thermoplastic rubber
Housing material

Sheet steel
Wheel type

Swivel castor
Warehouse

Ball bearing
ESD

yes
Locking device

Total brakes
Minimal screw hole removal

38x38/46x46 mm
Running surface Shore

85

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Back hole diameter	Actions
253 T 75 70 5 K ELF	75 mm	60 kg	100 mm	60x60 mm	-
253 50 02 5 K ELF	50 mm	40 kg	70 mm	-	10,2 mm	253 50 02 5 K ELF from series Series 253 - 5 K ELF
253 75 02 5 K ELF	75 mm	60 kg	100 mm	-	10,2 mm	253 75 02 5 K ELF from series Series 253 - 5 K ELF
253 100 02 5 K ELF	100 mm	80 kg	122 mm	-	10,2 mm	253 100 02 5 K ELF from series Series 253 - 5 K ELF
253 T 50 02 5 K ELF	50 mm	40 kg	70 mm	-	10,2 mm	253 T 50 02 5 K ELF from series Series 253 - 5 K ELF
253 T 75 02 5 K ELF	75 mm	60 kg	100 mm	-	10,2 mm	253 T 75 02 5 K ELF from series Series 253 - 5 K ELF
253 T 100 02 5 K ELF	100 mm	80 kg	122 mm	-	10,2 mm	253 T 100 02 5 K ELF from series Series 253 - 5 K ELF
253 50 70 5 K ELF	50 mm	40 kg	70 mm	60x60 mm	-	253 50 70 5 K ELF from series Series 253 - 5 K ELF
253 75 70 5 K ELF	75 mm	60 kg	100 mm	60x60 mm	-	253 75 70 5 K ELF from series Series 253 - 5 K ELF
253 100 70 5 K ELF	100 mm	80 kg	122 mm	60x60 mm	-	253 100 70 5 K ELF from series Series 253 - 5 K ELF
253 T 50 70 5 K ELF	50 mm	40 kg	70 mm	60x60 mm	-	253 T 50 70 5 K ELF from series Series 253 - 5 K ELF
253 T 100 70 5 K ELF	100 mm	80 kg	122 mm	60x60 mm	-	253 T 100 70 5 K ELF from series Series 253 - 5 K ELF
263 50 70 5 K ELF	50 mm	40 kg	70 mm	56x56 mm	-	263 50 70 5 K ELF from series Series 253 - 5 K ELF
263 100 70 5 K ELF	100 mm	80 kg	122 mm	67x60 mm	-	263 100 70 5 K ELF from series Series 253 - 5 K ELF
263 75 70 5 K ELF	75 mm	60 kg	100 mm	67x60 mm	-	263 75 70 5 K ELF from series Series 253 - 5 K ELF
