Series 253 - 5

253 50 70 5

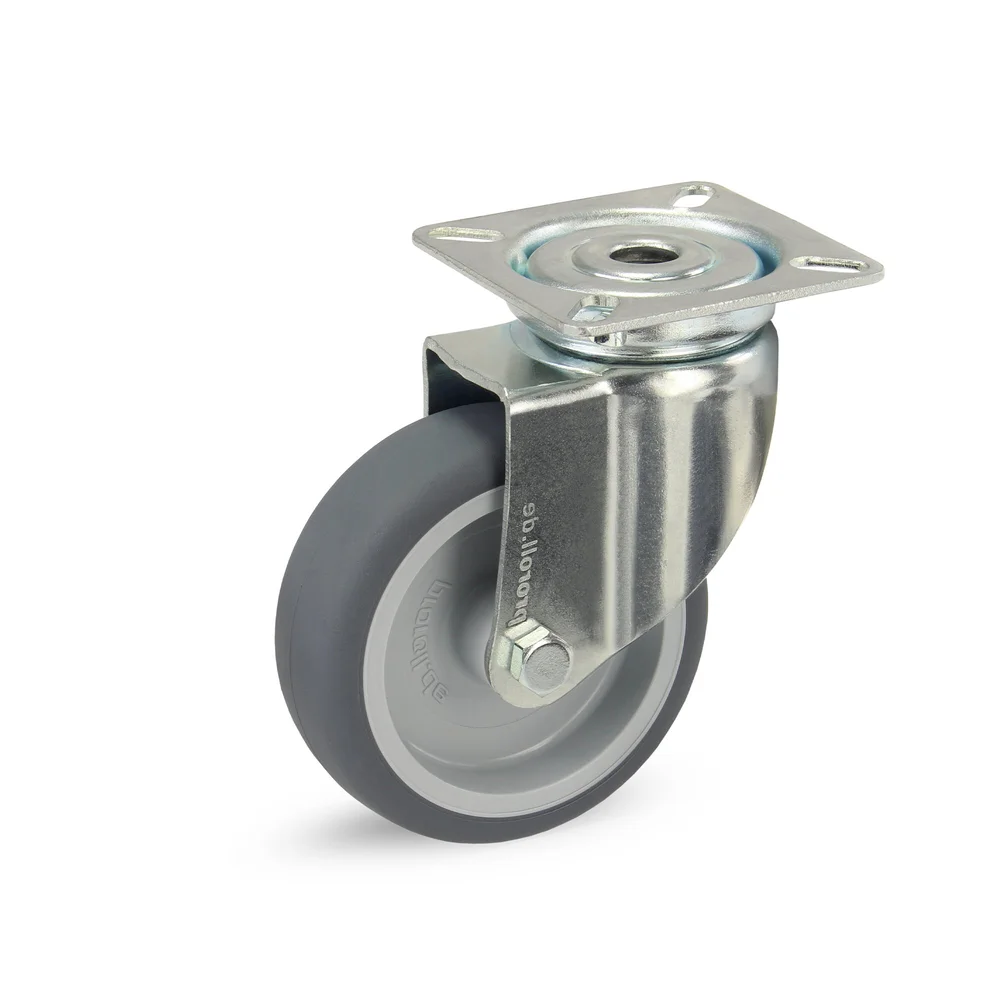

Name: Device castor 50/19 mm, galvanised
SKU: 253 50 70 5

Intro

The 253 5 series combines a compact castor housing with the wheel. Plastic rim, plain bearing and gray, non-lubricating TPR bandage for quiet, non-marking and floor-friendly running. Ideal for appliances, furniture and technology with safe, controlled mobility.

Technical details

Download data sheet

Device castor 50/19 mm, galvanised

Wheel diameter
50 mm
Load capacity
40 kg
Overall height
70 mm
Plate size
60x60 mm
Wheel width
19 mm
Screw hole diameter
6 mm
Tread material
thermoplastic rubber
Housing material
Sheet steel
Wheel type
Swivel castor
Warehouse
Plain bearing
ESD
yes
Antistatic
yes
Locking device
-
Minimal screw hole removal
38x38/46x46 mm
Running surface Shore
85

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Back hole diameter	Actions
253 50 70 5	50 mm	40 kg	70 mm	60x60 mm	-
253 50 02 5	50 mm	40 kg	70 mm	-	10,2 mm	253 50 02 5 from series Series 253 - 5
253 75 02 5	75 mm	60 kg	100 mm	-	10,2 mm	253 75 02 5 from series Series 253 - 5
253 100 02 5	100 mm	80 kg	122 mm	-	10,2 mm	253 100 02 5 from series Series 253 - 5
253 T 50 02 5	50 mm	40 kg	70 mm	-	10,2 mm	253 T 50 02 5 from series Series 253 - 5
253 T 75 02 5	75 mm	60 kg	100 mm	-	10,2 mm	253 T 75 02 5 from series Series 253 - 5
253 T 100 02 5	100 mm	80 kg	122 mm	-	10,2 mm	253 T 100 02 5 from series Series 253 - 5
253 75 70 5	75 mm	60 kg	100 mm	60x60 mm	-	253 75 70 5 from series Series 253 - 5
253 100 70 5	100 mm	80 kg	122 mm	60x60 mm	-	253 100 70 5 from series Series 253 - 5
253 T 50 70 5	50 mm	40 kg	70 mm	60x60 mm	-	253 T 50 70 5 from series Series 253 - 5
253 T 75 70 5	75 mm	60 kg	100 mm	60x60 mm	-	253 T 75 70 5 from series Series 253 - 5
253 T 100 70 5	100 mm	80 kg	122 mm	60x60 mm	-	253 T 100 70 5 from series Series 253 - 5
263 50 70 5	50 mm	40 kg	70 mm	56x56 mm	-	263 50 70 5 from series Series 253 - 5
263 75 70 5	75 mm	60 kg	100 mm	67x60 mm	-	263 75 70 5 from series Series 253 - 5
263 100 70 5	100 mm	80 kg	122 mm	67x60 mm	-	263 100 70 5 from series Series 253 - 5
