Series 253 SW - 5 SW

253 T 50 70 SW 5 SW

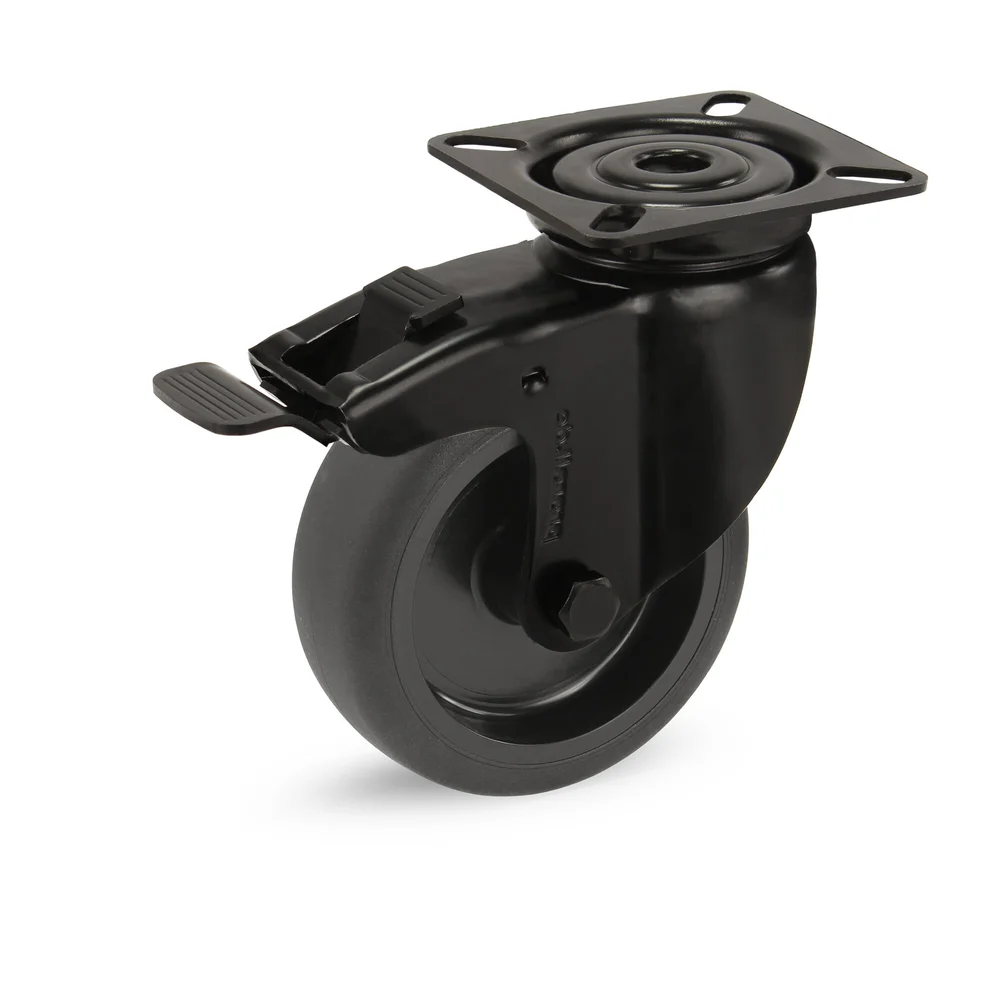

Name: Swivel castor 50/19 mm, black
SKU: 253 T 50 70 SW 5 SW

Intro

The 253 SW 5 SW series combines discreet design with reliable function. Equipped with a black plastic rim, black thermoplastic rubber bandage and plain bearing, it ensures smooth, non-marking running on a wide variety of floors. The black housing underlines the modern look.

Technical details

Download data sheet

Swivel castor 50/19 mm, black

Wheel diameter

50 mm
Load capacity

40 kg
Overall height

70 mm
Plate size

60x60 mm
Wheel width

19 mm
Screw hole diameter

6 mm
Tread material

thermoplastic rubber
Housing material

Sheet steel
Wheel type

Swivel castor
Warehouse

Plain bearing
Locking device

Total brakes
Minimal screw hole removal

38x38/46x46 mm

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Back hole diameter	Actions
253 T 50 70 SW 5 SW	50 mm	40 kg	70 mm	60x60 mm	-
253 50 02 SW 5 SW	50 mm	40 kg	70 mm	-	10,2 mm	253 50 02 SW 5 SW from series Series 253 SW - 5 SW
253 75 02 SW 5 SW	75 mm	60 kg	100 mm	-	10,2 mm	253 75 02 SW 5 SW from series Series 253 SW - 5 SW
253 100 02 SW 5 SW	100 mm	80 kg	122 mm	-	10,2 mm	253 100 02 SW 5 SW from series Series 253 SW - 5 SW
253 T 50 02 SW 5 SW	50 mm	40 kg	70 mm	-	10,2 mm	253 T 50 02 SW 5 SW from series Series 253 SW - 5 SW
253 T 75 02 SW 5 SW	75 mm	60 kg	100 mm	-	10,2 mm	253 T 75 02 SW 5 SW from series Series 253 SW - 5 SW
253 T 100 02 SW 5 SW	100 mm	80 kg	122 mm	-	10,2 mm	253 T 100 02 SW 5 SW from series Series 253 SW - 5 SW
253 50 70 SW 5 SW	50 mm	40 kg	70 mm	60x60 mm	-	253 50 70 SW 5 SW from series Series 253 SW - 5 SW
253 75 70 SW 5 SW	75 mm	60 kg	100 mm	60x60 mm	-	253 75 70 SW 5 SW from series Series 253 SW - 5 SW
253 100 70 SW 5 SW	100 mm	80 kg	122 mm	60x60 mm	-	253 100 70 SW 5 SW from series Series 253 SW - 5 SW
253 T 75 70 SW 5 SW	75 mm	60 kg	100 mm	60x60 mm	-	253 T 75 70 SW 5 SW from series Series 253 SW - 5 SW
253 T 100 70 SW 5 SW	100 mm	80 kg	122 mm	60x60 mm	-	253 T 100 70 SW 5 SW from series Series 253 SW - 5 SW
263 50 70 SW 5 SW	50 mm	40 kg	70 mm	56x56 mm	-	263 50 70 SW 5 SW from series Series 253 SW - 5 SW
263 75 70 SW 5 SW	75 mm	60 kg	100 mm	67x60 mm	-	263 75 70 SW 5 SW from series Series 253 SW - 5 SW
263 100 70 SW 5 SW	100 mm	80 kg	122 mm	67x60 mm	-	263 100 70 SW 5 SW from series Series 253 SW - 5 SW
