Series 253 SW - 8 SK

253 100 02 SW 8 SK

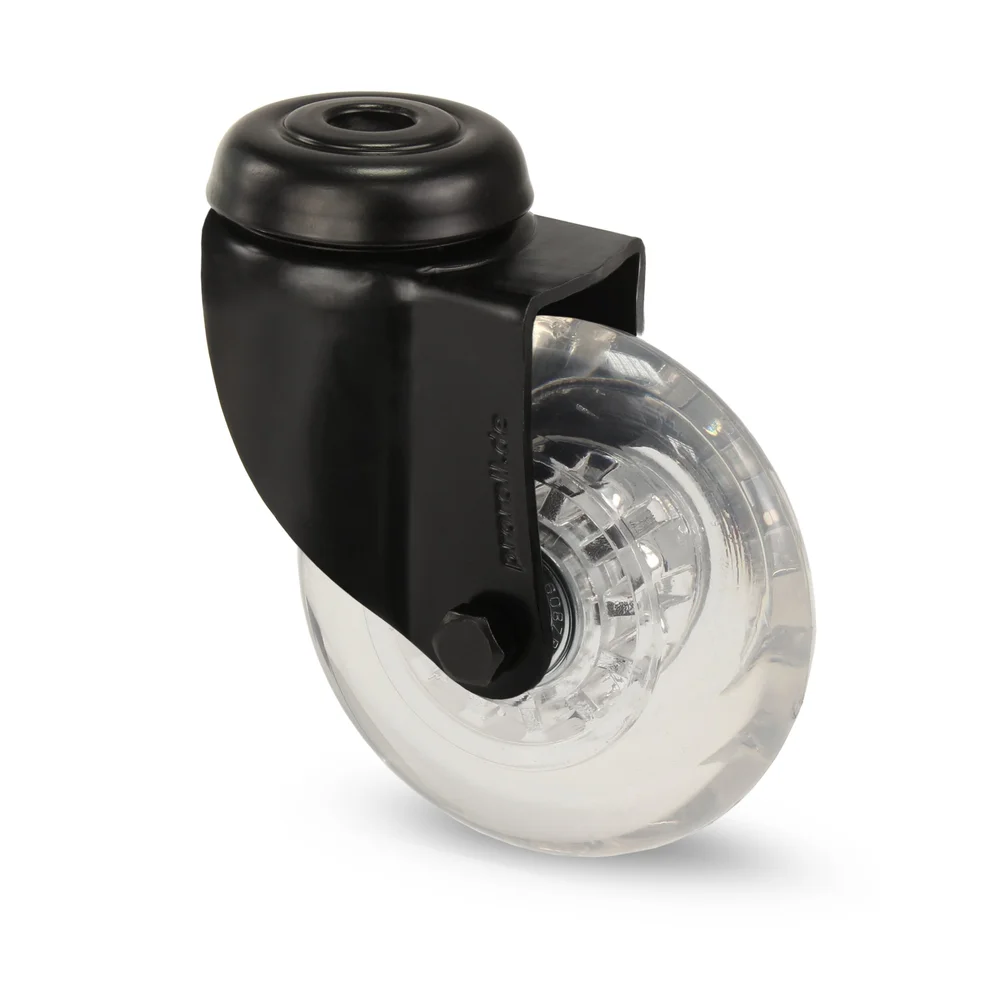

Name: Apparatus castor 100/25 mm, black
SKU: 253 100 02 SW 8 SK

Intro

The 253 SW 8 SK series stands for maximum dynamics in a stylish industrial look. Equipped with a transparent skate wheel with ball bearing, it offers fast, smooth movements and high precision. The black steel housing ensures a modern, minimalist look - ideal for presentation furniture, technical modules or contract furnishings with high demands on design and speed.

Technical details

Download data sheet

Apparatus castor 100/25 mm, black

Wheel diameter
100 mm
Load capacity
80 kg
Overall height
122 mm
Back hole diameter
10,2 mm
Wheel width
25 mm
Tread material
Polyurethane
Housing material
Sheet steel
Wheel type
Swivel castor
Warehouse
Ball bearing
Locking device
-
Running surface Shore
85

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Back hole diameter	Plate size	Actions
253 100 02 SW 8 SK	100 mm	80 kg	122 mm	10,2 mm	-
253 50 02 SW 8 SK	50 mm	40 kg	70 mm	10,2 mm	-	253 50 02 SW 8 SK from series Series 253 SW - 8 SK
253 75 02 SW 8 SK	75 mm	60 kg	100 mm	10,2 mm	-	253 75 02 SW 8 SK from series Series 253 SW - 8 SK
253 T 50 02 SW 8 SK	50 mm	40 kg	70 mm	10,2 mm	-	253 T 50 02 SW 8 SK from series Series 253 SW - 8 SK
253 T 75 02 SW 8 SK	75 mm	60 kg	100 mm	10,2 mm	-	253 T 75 02 SW 8 SK from series Series 253 SW - 8 SK
253 T 100 02 SW 8 SK	100 mm	80 kg	122 mm	10,2 mm	-	253 T 100 02 SW 8 SK from series Series 253 SW - 8 SK
253 50 70 SW 8 SK	50 mm	40 kg	70 mm	-	60x60 mm	253 50 70 SW 8 SK from series Series 253 SW - 8 SK
253 75 70 SW 8 SK	75 mm	60 kg	100 mm	-	60x60 mm	253 75 70 SW 8 SK from series Series 253 SW - 8 SK
253 100 70 SW 8 SK	100 mm	80 kg	122 mm	-	60x60 mm	253 100 70 SW 8 SK from series Series 253 SW - 8 SK
253 T 50 70 SW 8 SK	50 mm	40 kg	70 mm	-	60x60 mm	253 T 50 70 SW 8 SK from series Series 253 SW - 8 SK
253 T 75 70 SW 8 SK	75 mm	60 kg	100 mm	-	60x60 mm	253 T 75 70 SW 8 SK from series Series 253 SW - 8 SK
253 T 100 70 SW 8 SK	100 mm	80 kg	122 mm	-	60x60 mm	253 T 100 70 SW 8 SK from series Series 253 SW - 8 SK
263 50 70 SW 8 SK	50 mm	40 kg	70 mm	-	56x56 mm	263 50 70 SW 8 SK from series Series 253 SW - 8 SK
263 75 70 SW 8 SK	75 mm	60 kg	100 mm	-	67x60 mm	263 75 70 SW 8 SK from series Series 253 SW - 8 SK
263 100 70 SW 8 SK	100 mm	80 kg	122 mm	-	67x60 mm	263 100 70 SW 8 SK from series Series 253 SW - 8 SK
