Series 355 - 5 TK

355 T 100 71 5 TK

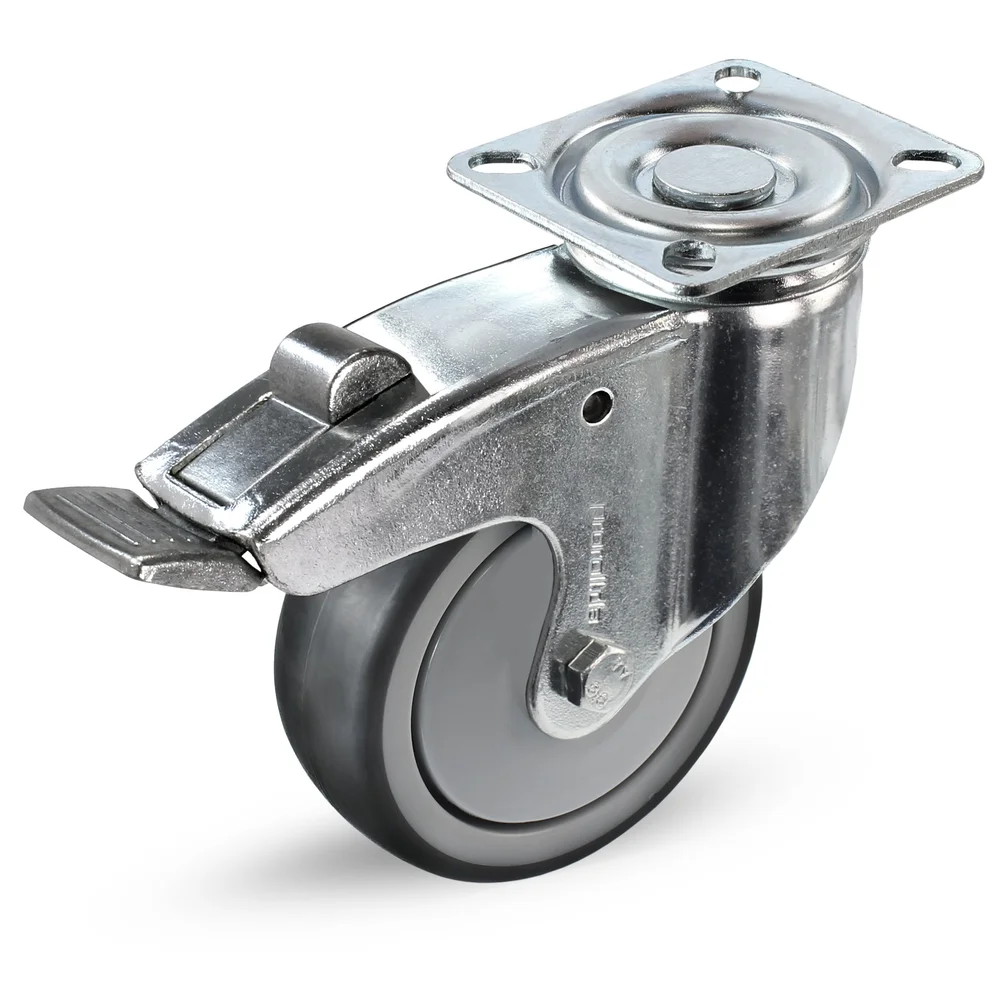

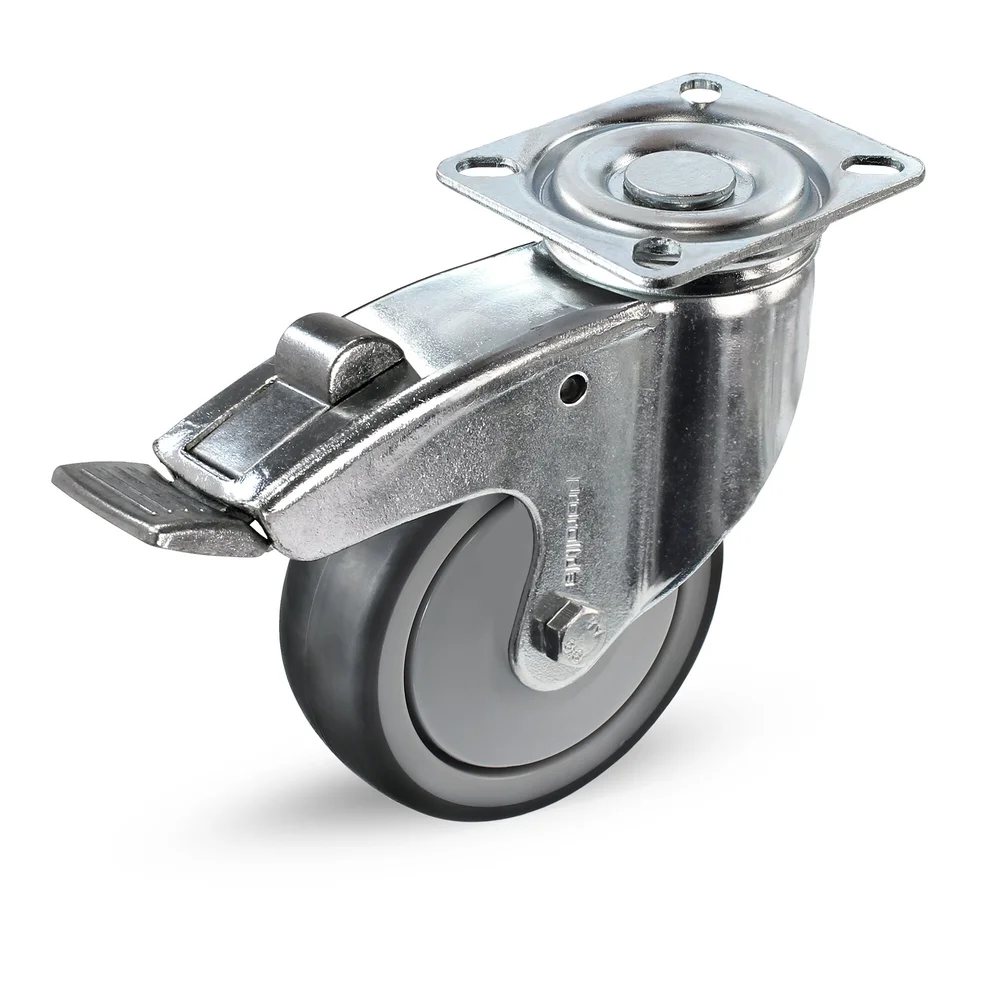

Name: Device castor 100/32 mm, galvanised
SKU: 355 T 100 71 5 TK

Intro

Series 355 5 TK is the ball bearing version of the heavy duty castor series. Equipped with a gray, non-lubricating TPR bandage, ball bearing and stable plastic rim, it impresses with its particularly smooth running, high load capacity and quiet running. Ideal for heavy apparatus and devices in medicine, industry or technology where precision and mobility are required at a resilient level.

Technical details

Download data sheet

Device castor 100/32 mm, galvanised

Wheel diameter
100 mm
Load capacity
80 kg
Overall height
135 mm
Plate size
67x77 mm
Wheel width
32 mm
Screw hole diameter
8,5x12 mm
Tread material
thermoplastic rubber
Housing material
Sheet steel
Wheel type
Swivel castor
Warehouse
Ball bearing
Locking device
Total brakes
Minimal screw hole removal
49x59 mm
Running surface Shore
85

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Back hole diameter	Actions
355 T 100 71 5 TK	100 mm	80 kg	135 mm	67x77 mm	-
355 100 02 5 TK	100 mm	80 kg	135 mm	-	10,2 mm	355 100 02 5 TK from series Series 355 - 5 TK
355 125 02 5 T K	125 mm	100 kg	160 mm	-	10,2 mm	355 125 02 5 T K from series Series 355 - 5 TK
355 T 100 02 5 TK	100 mm	80 kg	135 mm	-	10,2 mm	355 T 100 02 5 TK from series Series 355 - 5 TK
355 T 125 02 5 T K	125 mm	100 kg	160 mm	-	10,2 mm	355 T 125 02 5 T K from series Series 355 - 5 TK
355 100 71 5 TK	100 mm	80 kg	135 mm	67x77 mm	-	355 100 71 5 TK from series Series 355 - 5 TK
355 125 71 5 TK	125 mm	100 kg	160 mm	67x77 mm	-	355 125 71 5 TK from series Series 355 - 5 TK
355 T 125 71 5 TK	125 mm	100 kg	160 mm	67x77 mm	-	355 T 125 71 5 TK from series Series 355 - 5 TK
365 100 71 5 TK	100 mm	80 kg	135 mm	67x77 mm	-	365 100 71 5 TK from series Series 355 - 5 TK
365 125 71 5 TK	125 mm	100 kg	160 mm	67x77 mm	-	365 125 71 5 TK from series Series 355 - 5 TK
