Series 355 - 5 TK

355 100 02 5 TK

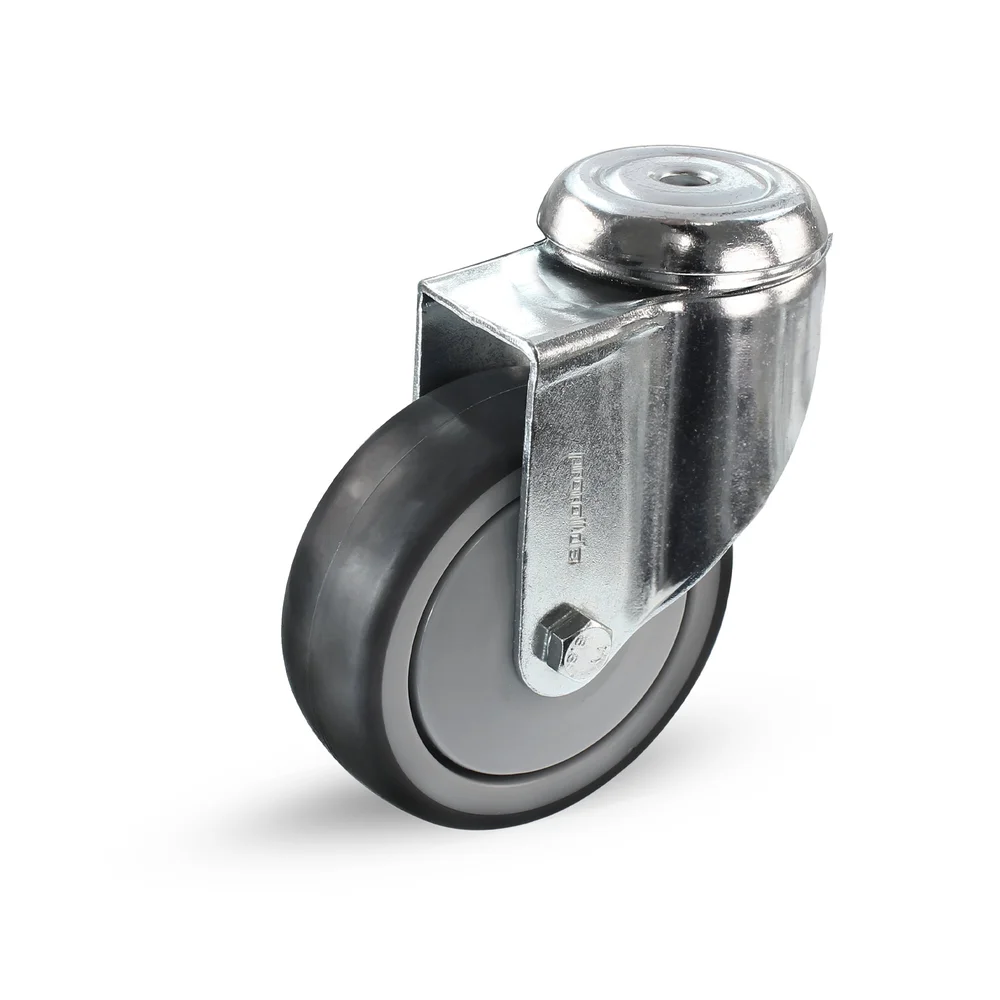

Name: Device castor 100/32 mm, galvanised
SKU: 355 100 02 5 TK

Intro

Series 355 5 TK is the ball bearing version of the heavy duty castor series. Equipped with a gray, non-lubricating TPR bandage, ball bearing and stable plastic rim, it impresses with its particularly smooth running, high load capacity and quiet running. Ideal for heavy apparatus and devices in medicine, industry or technology where precision and mobility are required at a resilient level.

Technical details

Download data sheet

Device castor 100/32 mm, galvanised

Wheel diameter

100 mm
Load capacity

80 kg
Overall height

135 mm
Back hole diameter

10,2 mm
Wheel width

32 mm
Tread material

thermoplastic rubber
Housing material

Sheet steel
Wheel type

Swivel castor
Warehouse

Ball bearing
Locking device

-
Running surface Shore

85

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Back hole diameter	Actions
355 100 02 5 TK	100 mm	80 kg	135 mm	-	10,2 mm
355 125 02 5 T K	125 mm	100 kg	160 mm	-	10,2 mm	355 125 02 5 T K from series Series 355 - 5 TK
355 T 100 02 5 TK	100 mm	80 kg	135 mm	-	10,2 mm	355 T 100 02 5 TK from series Series 355 - 5 TK
355 T 125 02 5 T K	125 mm	100 kg	160 mm	-	10,2 mm	355 T 125 02 5 T K from series Series 355 - 5 TK
355 100 71 5 TK	100 mm	80 kg	135 mm	67x77 mm	-	355 100 71 5 TK from series Series 355 - 5 TK
355 125 71 5 TK	125 mm	100 kg	160 mm	67x77 mm	-	355 125 71 5 TK from series Series 355 - 5 TK
355 T 100 71 5 TK	100 mm	80 kg	135 mm	67x77 mm	-	355 T 100 71 5 TK from series Series 355 - 5 TK
355 T 125 71 5 TK	125 mm	100 kg	160 mm	67x77 mm	-	355 T 125 71 5 TK from series Series 355 - 5 TK
365 100 71 5 TK	100 mm	80 kg	135 mm	67x77 mm	-	365 100 71 5 TK from series Series 355 - 5 TK
365 125 71 5 TK	125 mm	100 kg	160 mm	67x77 mm	-	365 125 71 5 TK from series Series 355 - 5 TK
