Series 380 - 5 TK

380 T 100 71 5 T K

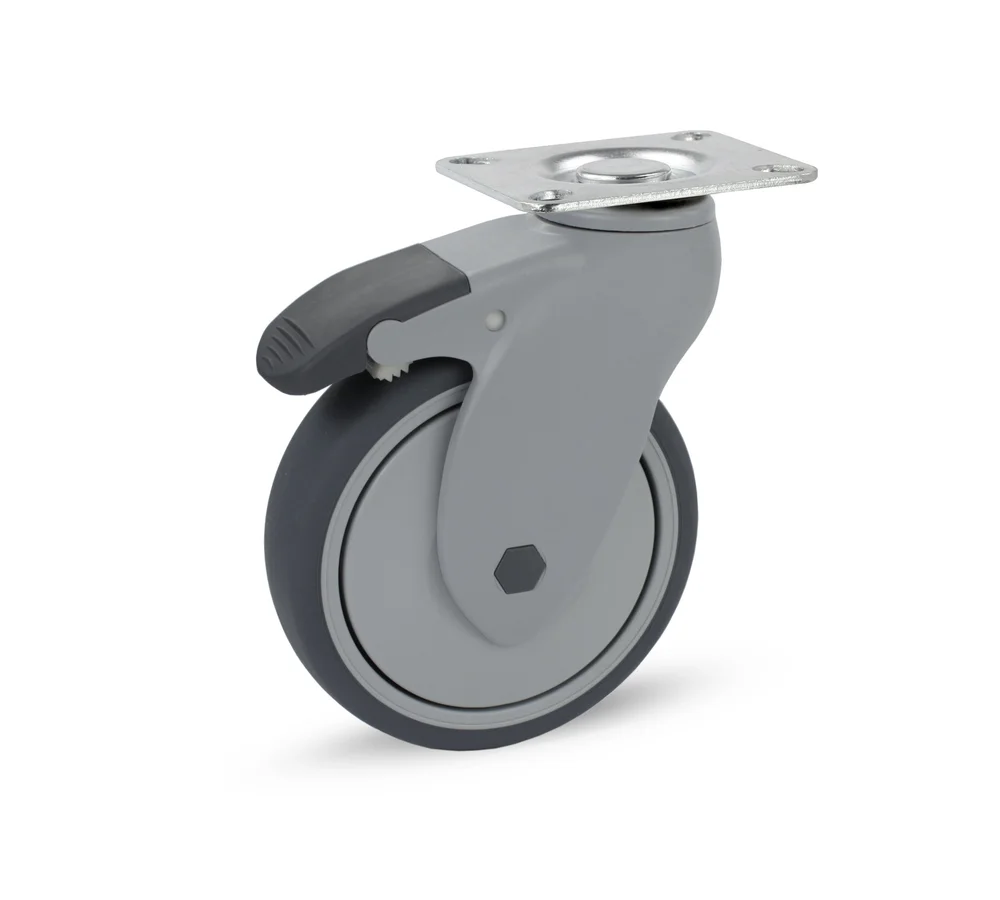

Name: Plastic swivel castor 100/32 mm
SKU: 380 T 100 71 5 T K

Intro

The fiberglass-reinforced polyamide housing of the 380 5 TK series ensures stability and low weight at the same time. Equipped with a dark gray, non-oiling thermoplastic rubber bandage, light gray plastic rim and ball bearing, this castor guarantees quiet, floor-friendly running. The precision deep groove ball bearing in the fork head ensures excellent maneuverability - ideal for high-quality furniture, store fittings or medical equipment.

Technical details

Download data sheet

Plastic swivel castor 100/32 mm

Wheel diameter
100 mm
Load capacity
100 kg
Overall height
140 mm
Plate size
77x67 mm
Wheel width
32 mm
Screw hole diameter
8 mm
Tread material
thermoplastic rubber
Housing material
Polyamide, glass fibre reinforced
Wheel type
Swivel castor
Warehouse
Deep groove ball bearing
Locking device
Total brakes
Minimal screw hole removal
56x46/61x51 mm
Running surface Shore
87

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Bolt length	Actions
380 T 100 71 5 T K	100 mm	100 kg	140 mm	77x67 mm	-
380 75 41 5 T K	75 mm	70 kg	105 mm	-	M10x20 mm	380 75 41 5 T K from series Series 380 - 5 TK
380 75 70 5 T K	75 mm	70 kg	110 mm	60x60 mm	-	380 75 70 5 T K from series Series 380 - 5 TK
380 100 41 5 T K	100 mm	100 kg	135 mm	-	M10x20 mm	380 100 41 5 T K from series Series 380 - 5 TK
380 100 70 5 T K	100 mm	100 kg	140 mm	95x70 mm	-	380 100 70 5 T K from series Series 380 - 5 TK
380 100 71 5 T K	100 mm	100 kg	140 mm	77x67 mm	-	380 100 71 5 T K from series Series 380 - 5 TK
380 125 41 5 T K	125 mm	100 kg	160 mm	-	M10x20 mm	380 125 41 5 T K from series Series 380 - 5 TK
380 125 70 5 T K	125 mm	100 kg	170 mm	95x70 mm	-	380 125 70 5 T K from series Series 380 - 5 TK
380 125 71 5 T K	125 mm	100 kg	170 mm	77x67 mm	-	380 125 71 5 T K from series Series 380 - 5 TK
380 F 75 41 5 T K	75 mm	70 kg	105 mm	-	M10x20 mm	380 F 75 41 5 T K from series Series 380 - 5 TK
380 F 75 70 5 T K	75 mm	70 kg	110 mm	60x60 mm	-	380 F 75 70 5 T K from series Series 380 - 5 TK
380 T 100 41 5 T K	100 mm	100 kg	135 mm	-	M10x20 mm	380 T 100 41 5 T K from series Series 380 - 5 TK
380 T 100 70 5 T K	100 mm	100 kg	140 mm	95x70 mm	-	380 T 100 70 5 T K from series Series 380 - 5 TK
380 T 125 41 5 T K	125 mm	100 kg	160 mm	-	M10x20 mm	380 T 125 41 5 T K from series Series 380 - 5 TK
380 T 125 70 5 T K	125 mm	100 kg	170 mm	95x70 mm	-	380 T 125 70 5 T K from series Series 380 - 5 TK
380 T 125 71 5 T K	125 mm	100 kg	170 mm	77x67 mm	-	380 T 125 71 5 T K from series Series 380 - 5 TK
