Series 390 - 5 BK

390 T 100 02 5 BK

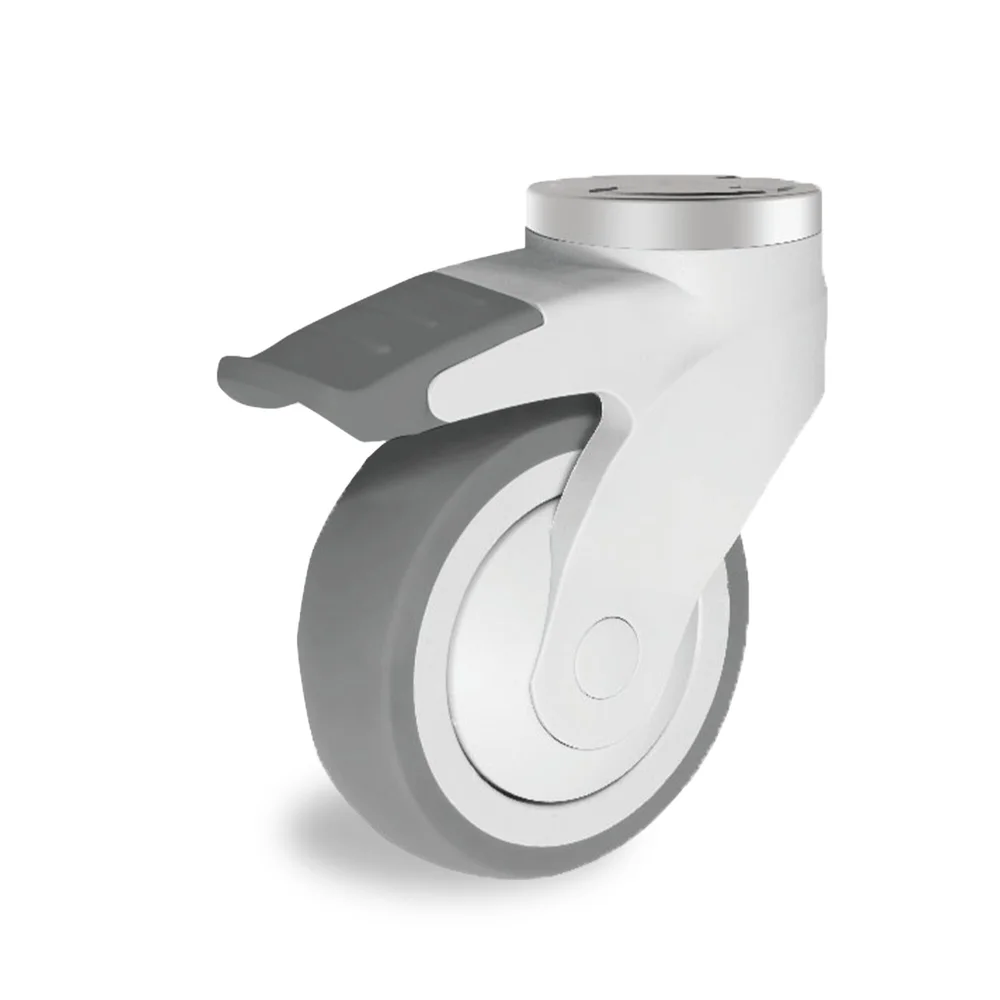

Name: Plastic swivel castor 100/32 mm
SKU: 390 T 100 02 5 BK

Intro

The Series 390 castor is made of glass fiber-reinforced polyamide in grey and is equipped with a total brake. The swivel head with double ball bearing ensures smooth movement, while the dark gray, thermoplastic rubber bandage guarantees quiet, floor-friendly running. With ball bearing and plastic rim - ideal for furniture, store fitting, schools or equipment construction.

Technical details

Download data sheet

Plastic swivel castor 100/32 mm

Wheel diameter

100 mm
Load capacity

100 kg
Overall height

137 mm
Back hole diameter

11 mm
Wheel width

32 mm
Tread material

thermoplastic rubber
Housing material

Polyamide
Warehouse

Ball bearing
Locking device

Total brakes
Running surface Shore

85

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Back hole diameter	Actions
390 T 100 02 5 BK	100 mm	100 kg	137 mm	-	11 mm
390 100 02 5 BK	100 mm	100 kg	137 mm	-	11 mm	390 100 02 5 BK from series Series 390 - 5 BK
390 100 71 5 BK	100 mm	100 kg	137 mm	77x67 mm	-	390 100 71 5 BK from series Series 390 - 5 BK
390 T 100 71 5 BK	100 mm	100 kg	137 mm	77x67 mm	-	390 T 100 71 5 BK from series Series 390 - 5 BK
