Intro
The 455 3 P series combines a galvanized sheet steel housing with a double-row ball and cage assembly and the hard-wearing 3 P wheel made of polypropylene with plain bearings. Low rolling resistance, unbreakable, non-marking and temperature-resistant from -40 °C to +80 °C. RoHS-compliant and 100% PAH-free - for long-lasting, clean transportation solutions.
| Product name | Wheel diameter | Load capacity | Overall height | Diameter of the rear hole | Plate size | Actions |
|---|---|---|---|---|---|---|

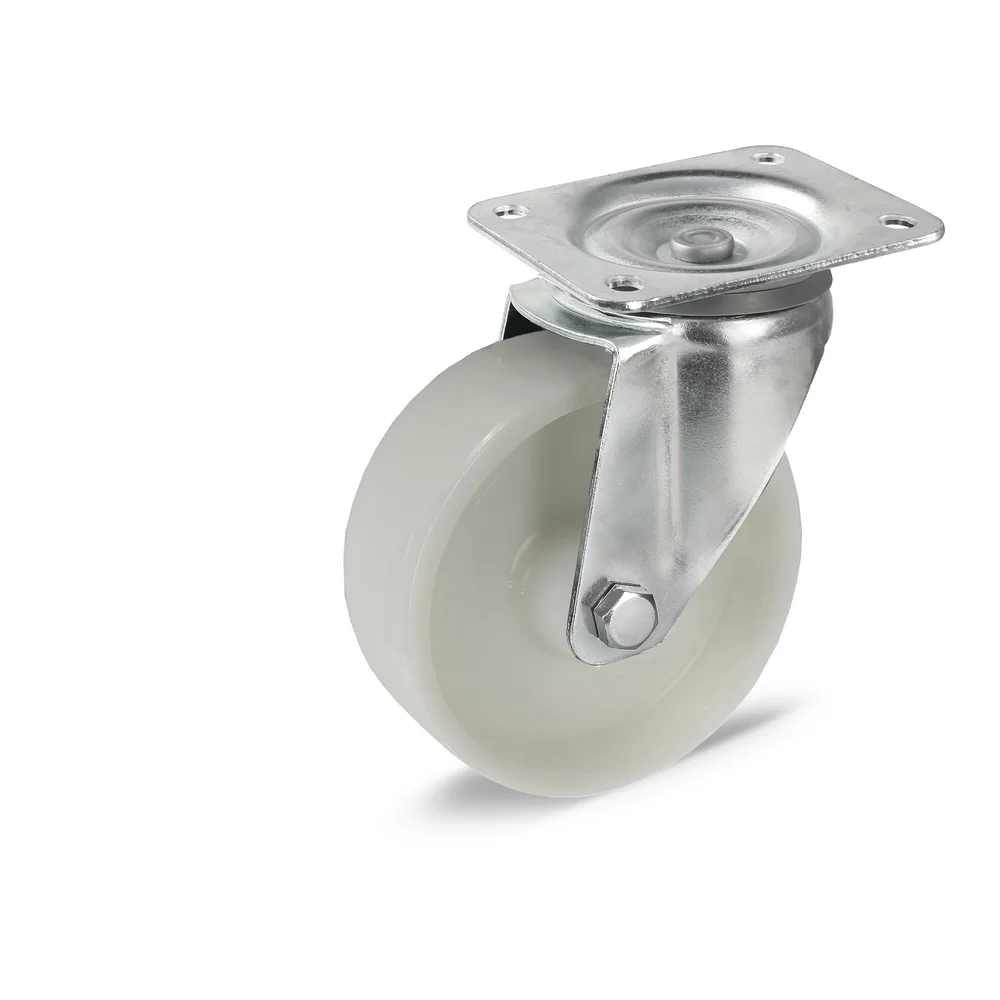

![]() 455 125 70 3 P |
125 mm | 200 kg | 155 mm | - | 105x85 mm | |
| 80 mm | 110 kg | 99 mm | 10,2 mm | - | ||
| 100 mm | 150 kg | 124 mm | 10,2 mm | - | ||
| 125 mm | 200 kg | 154 mm | 10,2 mm | - | ||
| 80 mm | 110 kg | 99 mm | 10,2 mm | - | ||
| 100 mm | 150 kg | 124 mm | 10,2 mm | - | ||
| 125 mm | 200 kg | 154 mm | 10,2 mm | - | ||
| 80 mm | 110 kg | 100 mm | - | 105x85 mm | ||
| 100 mm | 150 kg | 125 mm | - | 105x85 mm | ||
| 80 mm | 110 kg | 100 mm | - | 105x85 mm | ||
| 100 mm | 150 kg | 125 mm | - | 105x85 mm | ||
| 125 mm | 200 kg | 155 mm | - | 105x85 mm | ||
| 80 mm | 110 kg | 100 mm | - | 105x85 mm | ||
| 100 mm | 150 kg | 125 mm | - | 105x85 mm | ||
| 125 mm | 200 kg | 155 mm | - | 105x85 mm |
