Series 455 - 7 RKB Gray

455 80 70 7 RKB G

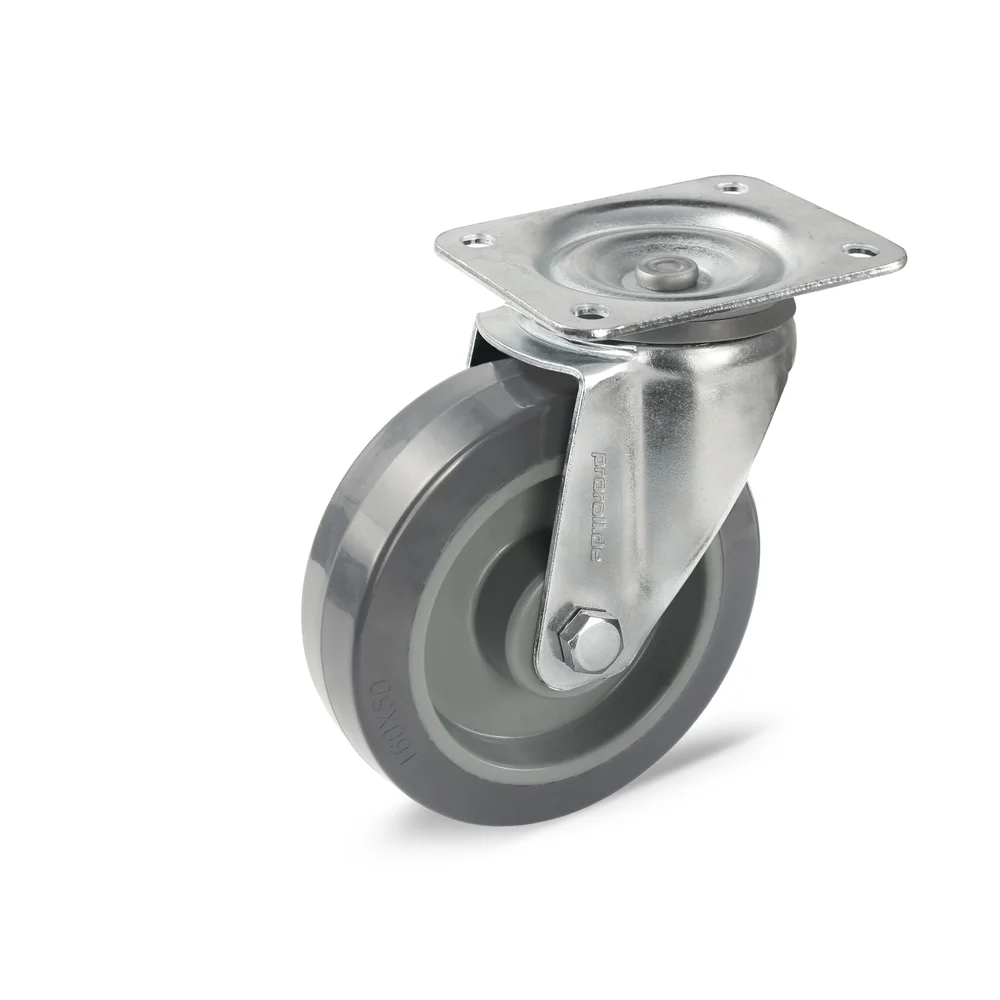

Name: Swivel castor 80/35 mm, galvanised
SKU: 455 80 70 7 RKB G

Intro

Series 455 7 RKB Grey combines a galvanized sheet steel housing with double-row ball and cage assembly and the non-marking wheel 7 RKB Grey with grey elastic solid rubber tyre. With roller bearings, high load capacity and quiet running properties. Temperature range -30 °C to +80 °C. Rolling resistance group 5. RoHS-compliant and 100 % PAH-free - for durable, clean transport solutions.

Technical details

Download data sheet

Swivel castor 80/35 mm, galvanised

Wheel diameter
80 mm
Load capacity
100 kg
Overall height
100 mm
Plate size
105x85 mm
Wheel width
35 mm
Screw hole diameter
9 mm
Tread material
Elastic solid rubber
Housing material
Sheet steel
Wheel type
Swivel castor
Warehouse
Roller bearing
Locking device
-
Minimal screw hole removal
80x60 mm
Running surface Shore
70

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Actions
455 80 70 7 RKB G	80 mm	100 kg	100 mm	105x85 mm
455 100 70 7 RKB G	100 mm	150 kg	125 mm	105x85 mm	455 100 70 7 RKB G from series Series 455 - 7 RKB Gray
455 125 70 7 RKB G	125 mm	200 kg	155 mm	105x85 mm	455 125 70 7 RKB G from series Series 455 - 7 RKB Gray
455 160 70 7 RKB G	160 mm	350 kg	190 mm	135x110 mm	455 160 70 7 RKB G from series Series 455 - 7 RKB Gray
455 T 80 70 7 RKB G	80 mm	100 kg	100 mm	105x85 mm	455 T 80 70 7 RKB G from series Series 455 - 7 RKB Gray
455 T 100 70 7 RKB G	100 mm	150 kg	125 mm	105x85 mm	455 T 100 70 7 RKB G from series Series 455 - 7 RKB Gray
455 T 125 70 7 RKB G	125 mm	200 kg	155 mm	105x85 mm	455 T 125 70 7 RKB G from series Series 455 - 7 RKB Gray
455 T 160 70 7 RKB G	160 mm	350 kg	190 mm	135x110 mm	455 T 160 70 7 RKB G from series Series 455 - 7 RKB Gray
465 80 70 7 RKB G	80 mm	100 kg	100 mm	105x85 mm	465 80 70 7 RKB G from series Series 455 - 7 RKB Gray
465 100 70 7 RKB G	100 mm	150 kg	125 mm	105x85 mm	465 100 70 7 RKB G from series Series 455 - 7 RKB Gray
465 125 70 7 RKB G	125 mm	200 kg	155 mm	105x85 mm	465 125 70 7 RKB G from series Series 455 - 7 RKB Gray
465 160 70 7 RKB G	160 mm	350 kg	190 mm	135x110 mm	465 160 70 7 RKB G from series Series 455 - 7 RKB Gray
