Series 455 stainless steel - 3 PA

455 ET 160 70 3 PA

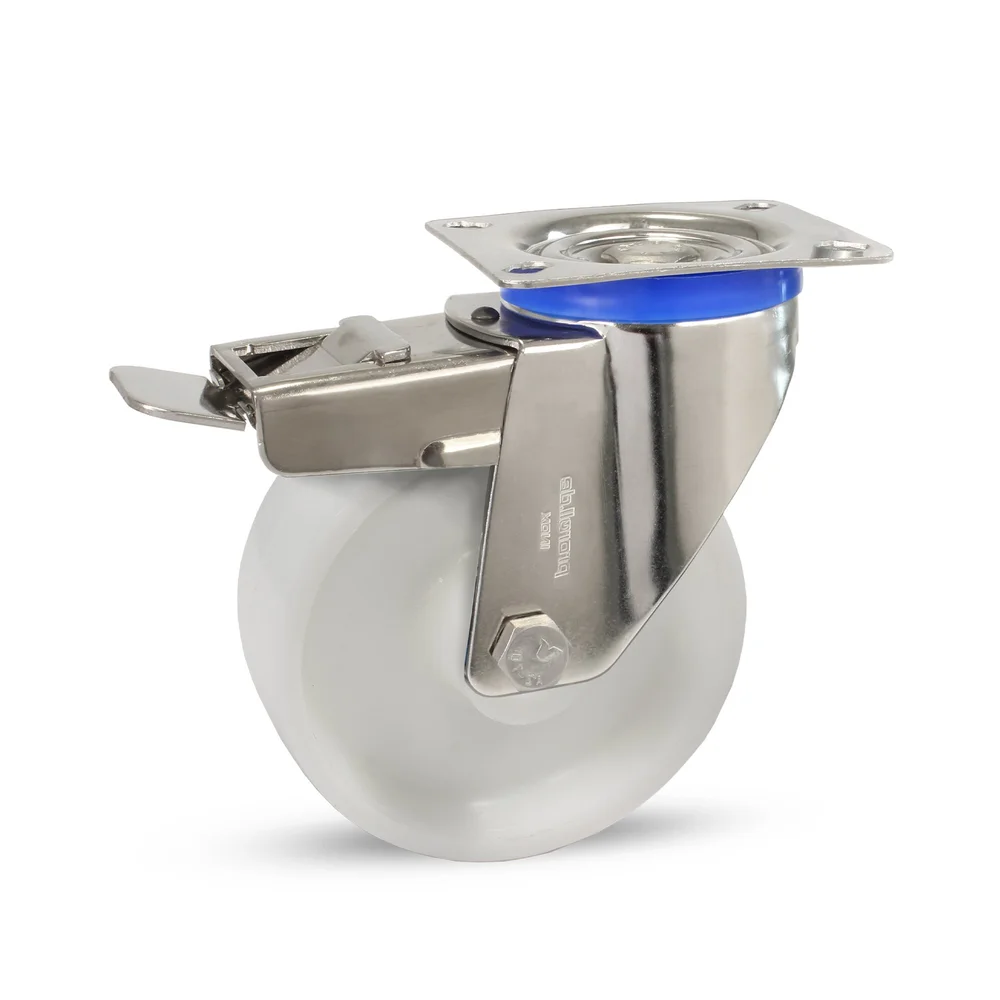

Name: Stainless steel - Swivel castor 160/40 mm
SKU: 455 ET 160 70 3 PA

Intro

Series 455 stainless steel 3 PA combines a corrosion-resistant stainless steel housing with a polyamide wheel 3 PA with plain bearing. Low rolling resistance, break-proof, non-marking and temperature-resistant from -40 °C to +80 °C. Ideal for hygienic and damp areas of application. Robust, durable, RoHS-compliant and 100% PAH-free - perfect for environments with high demands on cleanliness and resistance.

Technical details

Download data sheet

Stainless steel - Swivel castor 160/40 mm

Wheel diameter

160 mm
Load capacity

300 kg
Overall height

197 mm
Plate size

140x110 mm
Wheel width

40 mm
Screw hole diameter

11 mm
Tread material

Polyamide
Housing material

Chrome-nickel steel
Warehouse

Plain bearing
Locking device

Total brakes
Minimal screw hole removal

105x75/105x80 mm

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Actions
455 ET 160 70 3 PA	160 mm	300 kg	197 mm	140x110 mm
455 E 160 70 3 PA	160 mm	300 kg	197 mm	140x110 mm	455 E 160 70 3 PA from series Series 455 stainless steel - 3 PA
455 E 200 70 3 PA	200 mm	300 kg	235 mm	140x110 mm	455 E 200 70 3 PA from series Series 455 stainless steel - 3 PA
455 ET 200 70 3 PA	200 mm	300 kg	235 mm	140x110 mm	455 ET 200 70 3 PA from series Series 455 stainless steel - 3 PA
465 E 160 70 3 PA	160 mm	300 kg	197 mm	140x110 mm	465 E 160 70 3 PA from series Series 455 stainless steel - 3 PA
465 E 200 70 3 PA	200 mm	300 kg	235 mm	140x110 mm	465 E 200 70 3 PA from series Series 455 stainless steel - 3 PA
