Series 455 stainless steel - 3 PU

465 E 80 70 3 PUG

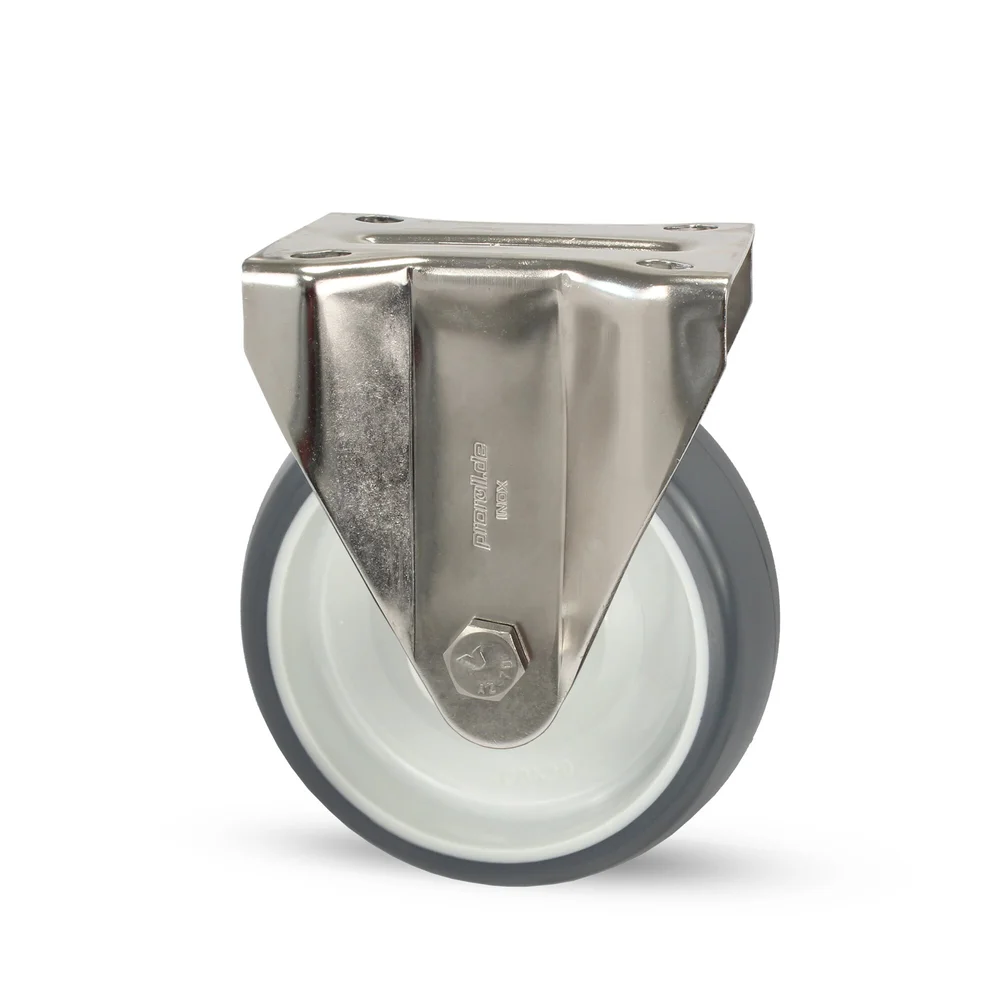

Name: Stainless steel transport castor 80/28 mm
SKU: 465 E 80 70 3 PUG

Intro

The Series 455 stainless steel 3 PU combines a corrosion-resistant stainless steel housing with the 3 PU wheel. The polyurethane running surface with plain bearing ensures smooth rolling on sensitive floors. Temperature resistant from -30 °C to +80 °C. Ideal for hygienic and damp areas of application. Robust, durable, RoHS-compliant and 100 % PAH-free - perfect for environments with high demands on cleanliness and durability.

Technical details

Download data sheet

Stainless steel transport castor 80/28 mm

Wheel diameter

80 mm
Load capacity

100 kg
Overall height

107 mm
Plate size

105x85 mm
Wheel width

28 mm
Screw hole diameter

8.5 mm
Tread material

Polyurethane
Housing material

Chrome-nickel steel
Warehouse

Plain bearing
Locking device

-
Minimal screw hole removal

80x60 mm
Running surface Shore

95

All product variants

Product name	Wheel diameter	Load capacity	Overall height	Plate size	Actions
465 E 80 70 3 PUG	80 mm	100 kg	107 mm	105x85 mm
455 E 80 70 3 PUG	80 mm	100 kg	107 mm	105x85 mm	455 E 80 70 3 PUG from series Series 455 stainless steel - 3 PU
455 E 100 70 3 PUG	100 mm	140 kg	128 mm	105x85 mm	455 E 100 70 3 PUG from series Series 455 stainless steel - 3 PU
455 E 125 70 3 PUG	125 mm	150 kg	155 mm	105x85 mm	455 E 125 70 3 PUG from series Series 455 stainless steel - 3 PU
455 E 160 70 3 PUG	160 mm	300 kg	197 mm	140x110 mm	455 E 160 70 3 PUG from series Series 455 stainless steel - 3 PU
455 E 200 70 3 PUG	200 mm	300 kg	235 mm	140x110 mm	455 E 200 70 3 PUG from series Series 455 stainless steel - 3 PU
455 ET 80 70 3 PUG	80 mm	100 kg	107 mm	105x85 mm	455 ET 80 70 3 PUG from series Series 455 stainless steel - 3 PU
455 ET 100 70 3 PUG	100 mm	140 kg	128 mm	105x85 mm	455 ET 100 70 3 PUG from series Series 455 stainless steel - 3 PU
455 ET 125 70 3 PUG	125 mm	150 kg	155 mm	105x85 mm	455 ET 125 70 3 PUG from series Series 455 stainless steel - 3 PU
455 ET 160 70 3 PUG	160 mm	300 kg	197 mm	140x110 mm	455 ET 160 70 3 PUG from series Series 455 stainless steel - 3 PU
455 ET 200 70 3 PUG	200 mm	300 kg	235 mm	140x110 mm	455 ET 200 70 3 PUG from series Series 455 stainless steel - 3 PU
465 E 100 70 3 PUG	100 mm	140 kg	128 mm	105x85 mm	465 E 100 70 3 PUG from series Series 455 stainless steel - 3 PU
465 E 125 70 3 PUG	125 mm	150 kg	155 mm	105x85 mm	465 E 125 70 3 PUG from series Series 455 stainless steel - 3 PU
465 E 160 70 3 PUG	160 mm	300 kg	197 mm	140x110 mm	465 E 160 70 3 PUG from series Series 455 stainless steel - 3 PU
465 E 200 70 3 PUG	200 mm	300 kg	235 mm	140x110 mm	465 E 200 70 3 PUG from series Series 455 stainless steel - 3 PU
