Series 600 - 8 KAE

600 T 100 70 8 KAE

Add to watch list

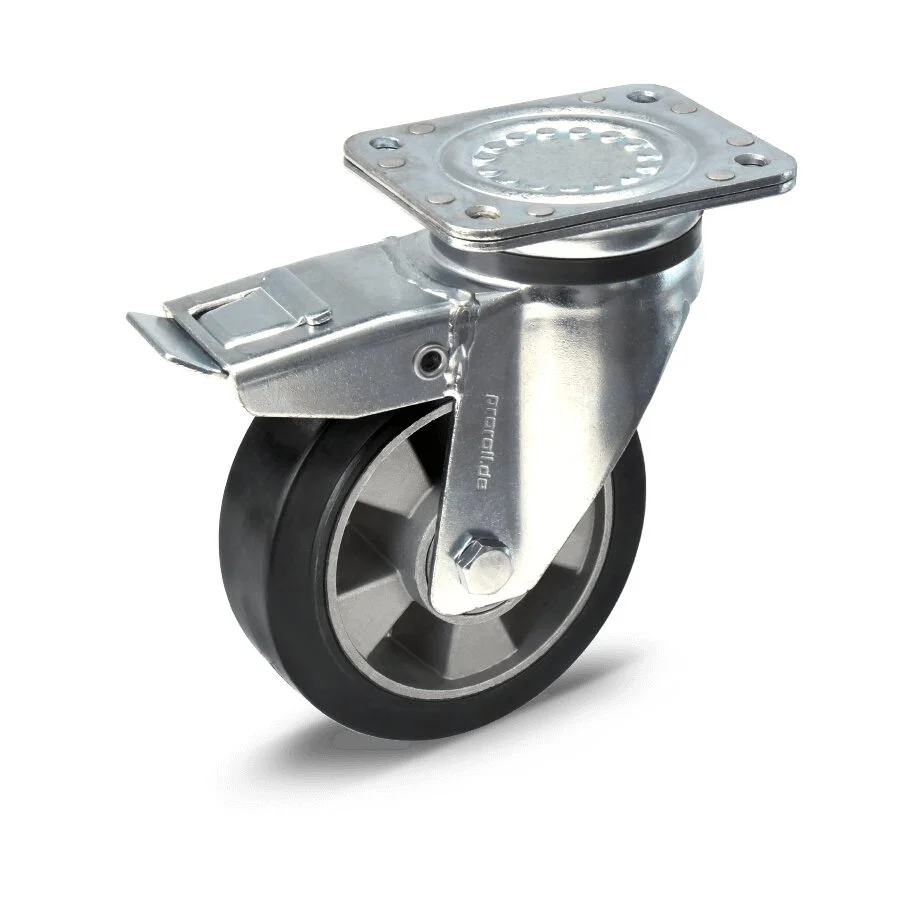

600 T 100 70 8 KAE

Intro

Series 600 8 KAE - This heavy-duty castor is equipped with a high-quality aluminum webbed rim, a ball bearing and a black elastic solid rubber bandage. This combination ensures a high level of ride comfort, excellent shock absorption and a smooth ride that is gentle on the floor and equipment - even on uneven surfaces. The 600 8 KAE series is ideal for use in industry, logistics or transport-intensive applications.

Technical details

Heavy-duty swivel castor 100/40 mm, galvanised

  • Wheel diameter
    Wheel diameter
    100 mm
  • Load capacity
    Load capacity
    180 kg
  • Overall height
    Overall height
    132 mm
  • Plate size
    Plate size
    105x80 mm
  • Wheel width
    Wheel width
    30 mm
  • Screw hole diameter
    8.5 mm
  • Tread material
    Elastic solid rubber
  • Housing material
    Sheet steel
  • Wheel type
    Swivel castor
  • Warehouse
    Ball bearing
  • Locking device
    Total brakes
  • Minimal screw hole removal
    Minimal screw hole removal
    80x60 mm
  • Running surface Shore
    70
600 T 100 70 8 KAE

All product variants

Product name Wheel diameter Load capacity Overall height Plate size Actions
600 T 100 70 8 KAE

600 T 100 70 8 KAE

100 mm 180 kg 132 mm 105x80 mm
100 mm 180 kg 132 mm 105x80 mm
600 100 70 8 KAE from series Series 600 - 8 KAE
125 mm 250 kg 155 mm 105x80 mm

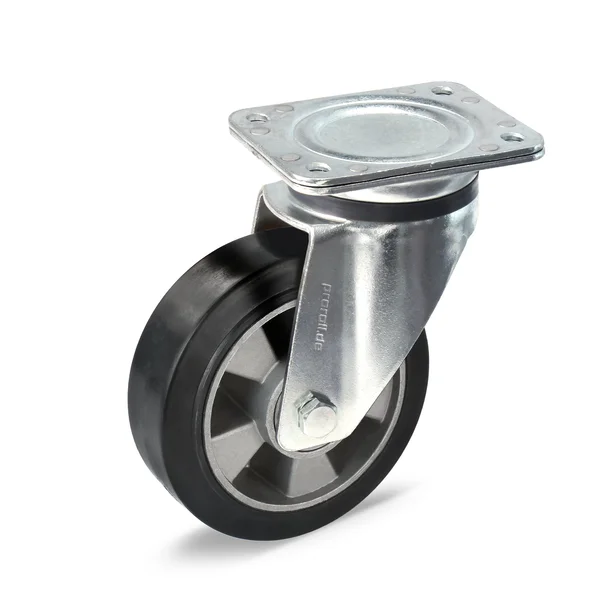

600 125 70 8 KAE from series Series 600 - 8 KAE
125 mm 250 kg 155 mm 105x80 mm
600 T 125 70 8 KAE from series Series 600 - 8 KAE
