SMW 17

SMW 17 KH

Add to watch list

SMW 17 KH

Intro

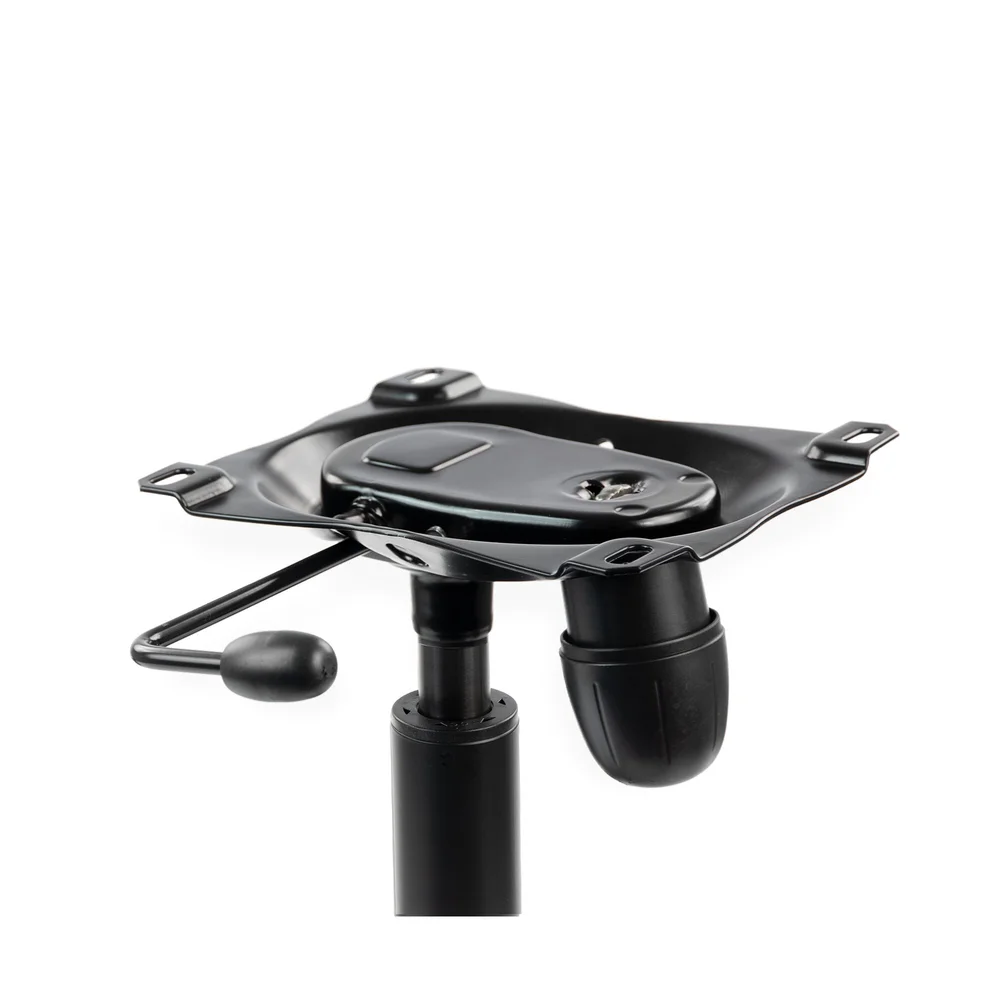

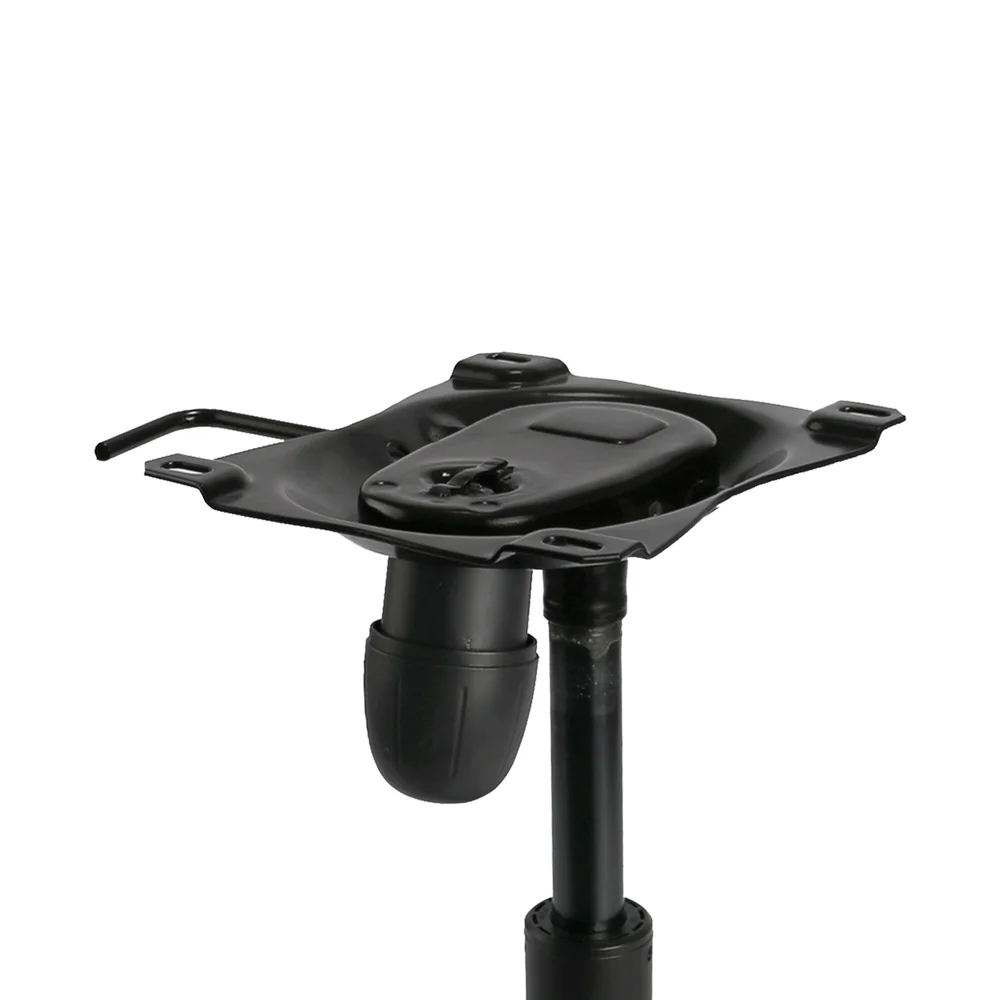

The SMW17 sheet steel seat support offers reliable function in a compact design. Equipped with height adjustment via release lever and gas pressure column as well as an integrated rocker function with locking option in the horizontal zero position. A handwheel enables individual weight adjustment. The 28 mm standard cone mount allows easy installation on gas pressure columns. Robust technology for ergonomic sitting.

Technical details

Download data sheet

Steel mechanism, black

  • Height
    Height: 103 mm
  • Functions
    Rocker
  • Hole size min.
    Hole size min.: 200x148 mm
  • Hole size max.
    Hole size max.: 200x172 mm
  • Colour
    Colour: black
  • Width
    Width: 195 mm
  • Material
    Material: Sheet steel
  • Surface
    black
  • Lever length
    190 mm
  • Inclination
    Inclination: 2 °
  • Length
    Length: 222 mm
  • Settings
    Seat height adjustment
SMW 17 KH

All product variants

Product nameHeightFunctionsHole size min.Hole size max.
SMW 17 KH

SMW 17 KH

103 mmRocker200x148 mm200x172 mm
SMW 17 KH

SMW 17 KH

103 mmRocker200x148 mm200x172 mm
