Series 253 - 5 FS

263 100 70 5 FS

Add to watch list

263 100 70 5 FS

Technical details

Download data sheet

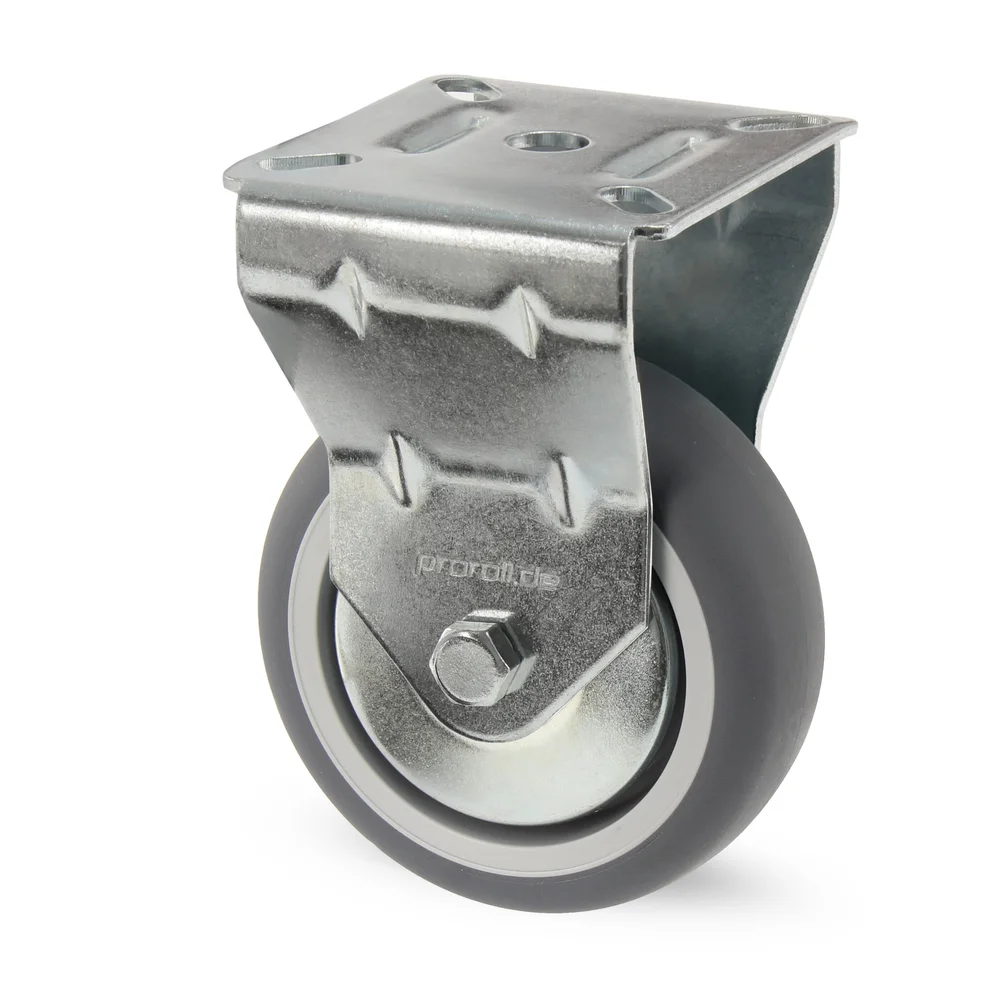

Apparatus castor 100/25 mm, galvanised

  • Wheel diameter
    Wheel diameter: 100 mm
  • Load capacity
    Load capacity: 80 kg
  • Overall height
    Overall height: 122 mm
  • Plate size
    Plate size: 67x60 mm
  • Wheel width
    Wheel width: 25 mm
  • Screw hole diameter
    6 mm
  • Tread material
    thermoplastic rubber
  • Housing material
    Sheet steel
  • Wheel type
    Bockrolle
  • Warehouse
    Plain bearing
  • ESD
    yes
  • Antistatic
    yes
  • Locking device
    -
  • Minimal screw hole removal
    Minimal screw hole removal: 38x38 mm
  • Maximum screw hole distance
    Maximum screw hole distance: 46x46 mm
  • Running surface Shore
    85
263 100 70 5 FS
