Series 253 SW - 8 SK

253 50 70 SW 8 SK

Add to watch list

253 50 70 SW 8 SK

Technical details

Download data sheet

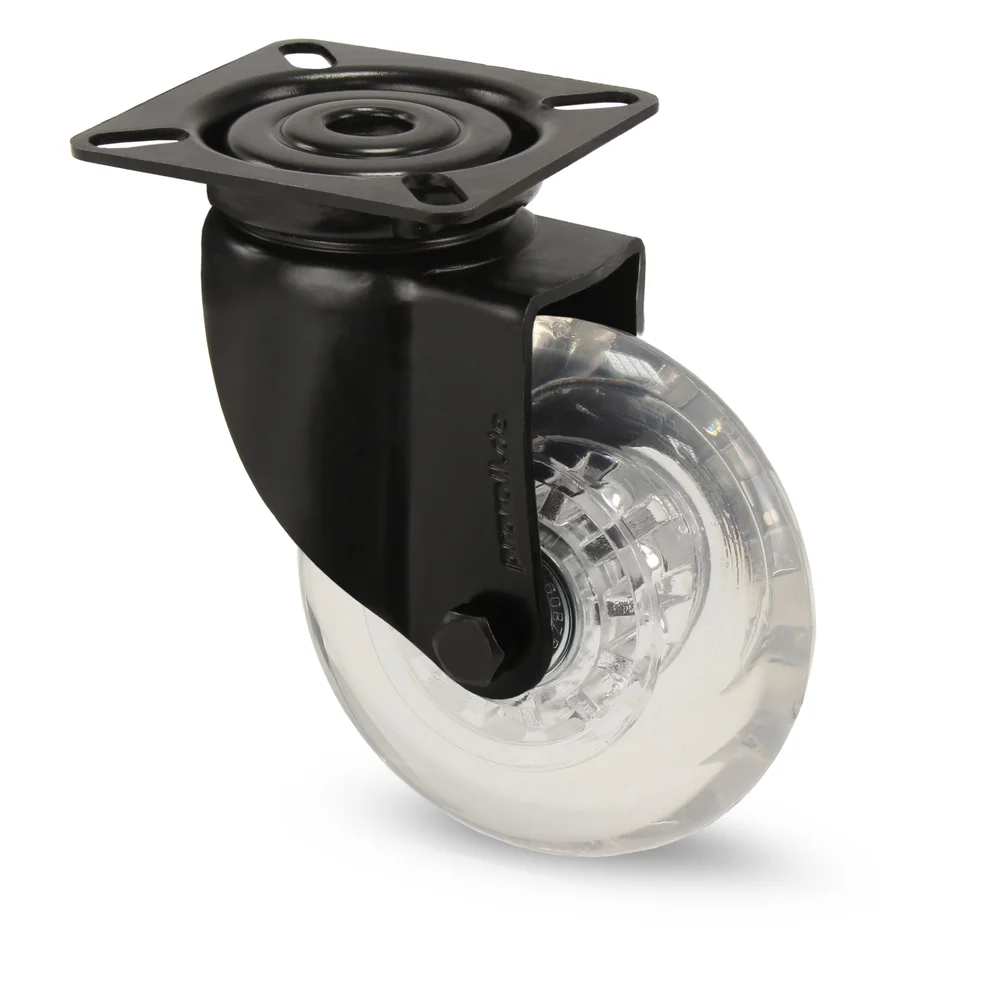

Apparatus castor 50/20 mm, black

  • Wheel diameter
    Wheel diameter: 50 mm
  • Load capacity
    Load capacity: 40 kg
  • Overall height
    Overall height: 70 mm
  • Plate size
    Plate size: 60x60 mm
  • Wheel width
    Wheel width: 22 mm
  • Screw hole diameter
    6 mm
  • Tread material
    Polyurethane bandage
  • Housing material
    Sheet steel
  • Wheel type
    Lenkrolle
  • Warehouse
    Ball bearing
  • Locking device
    -
  • Minimal screw hole removal
    Minimal screw hole removal: 38x38 mm
  • Maximum screw hole distance
    Maximum screw hole distance: 46x46 mm
  • Running surface Shore
    85
253 50 70 SW 8 SK
