Series 355 - 5 T

355 T 100 71 5 T

Add to watch list

355 T 100 71 5 T

Technical details

Download data sheet

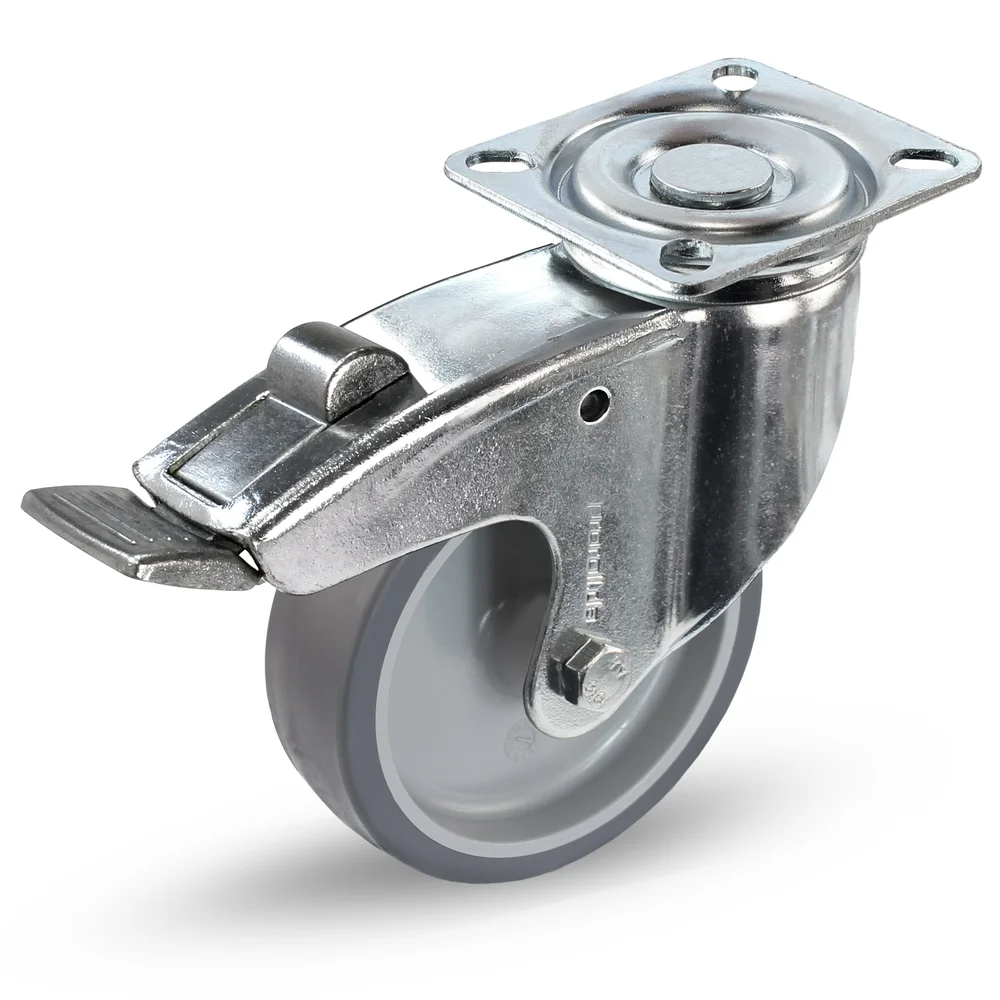

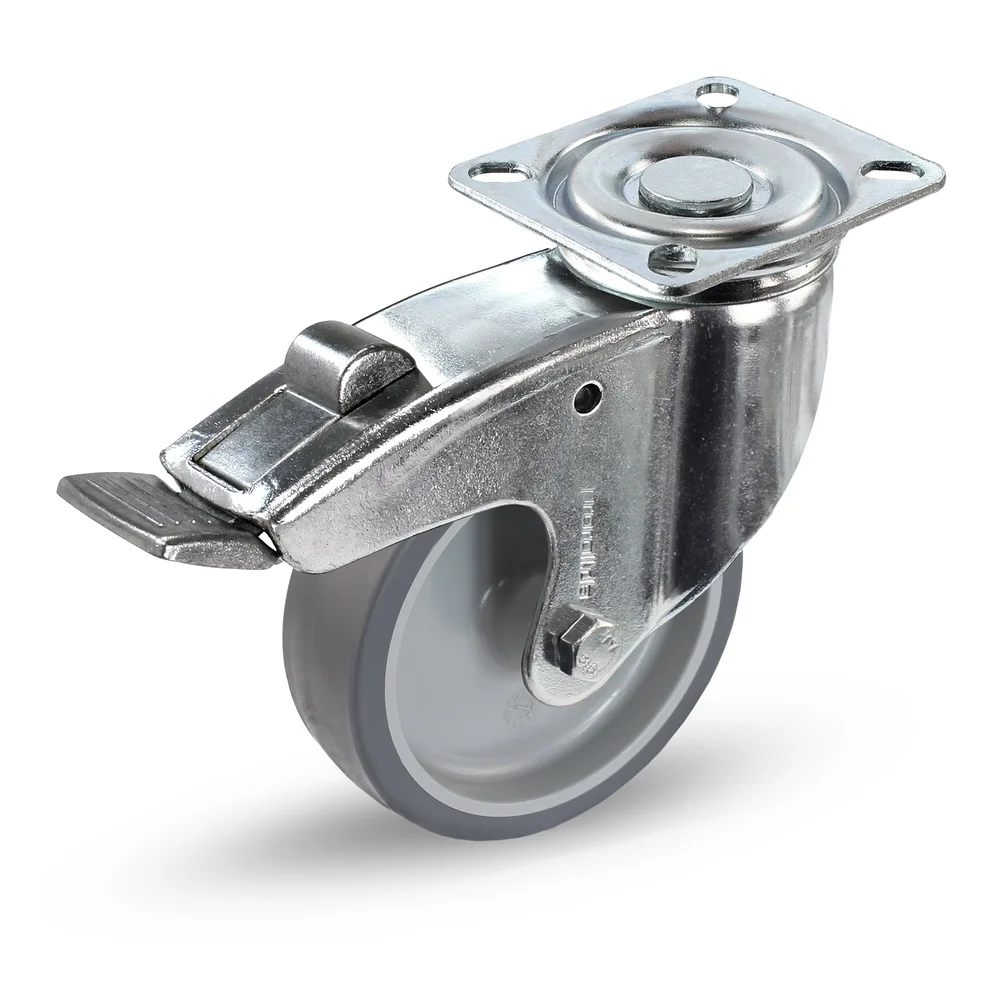

Device castor 100/32 mm, galvanised

  • Wheel diameter
    Wheel diameter: 100 mm
  • Load capacity
    Load capacity: 80 kg
  • Overall height
    Overall height: 135 mm
  • Plate size
    Plate size: 67x77 mm
  • Wheel width
    Wheel width: 32 mm
  • Screw hole diameter
    8,5x12 mm
  • Tread material
    thermoplastic rubber
  • Housing material
    Sheet steel
  • Wheel type
    Lenkrolle
  • Warehouse
    Plain bearing
  • Locking device
    Total brakes
  • Minimal screw hole removal
    Minimal screw hole removal: 49x59 mm
  • Running surface Shore
    85
355 T 100 71 5 T
