Series 355 - 5 TK

355 125 71 5 TK

Add to watch list

355 125 71 5 TK

Technical details

Download data sheet

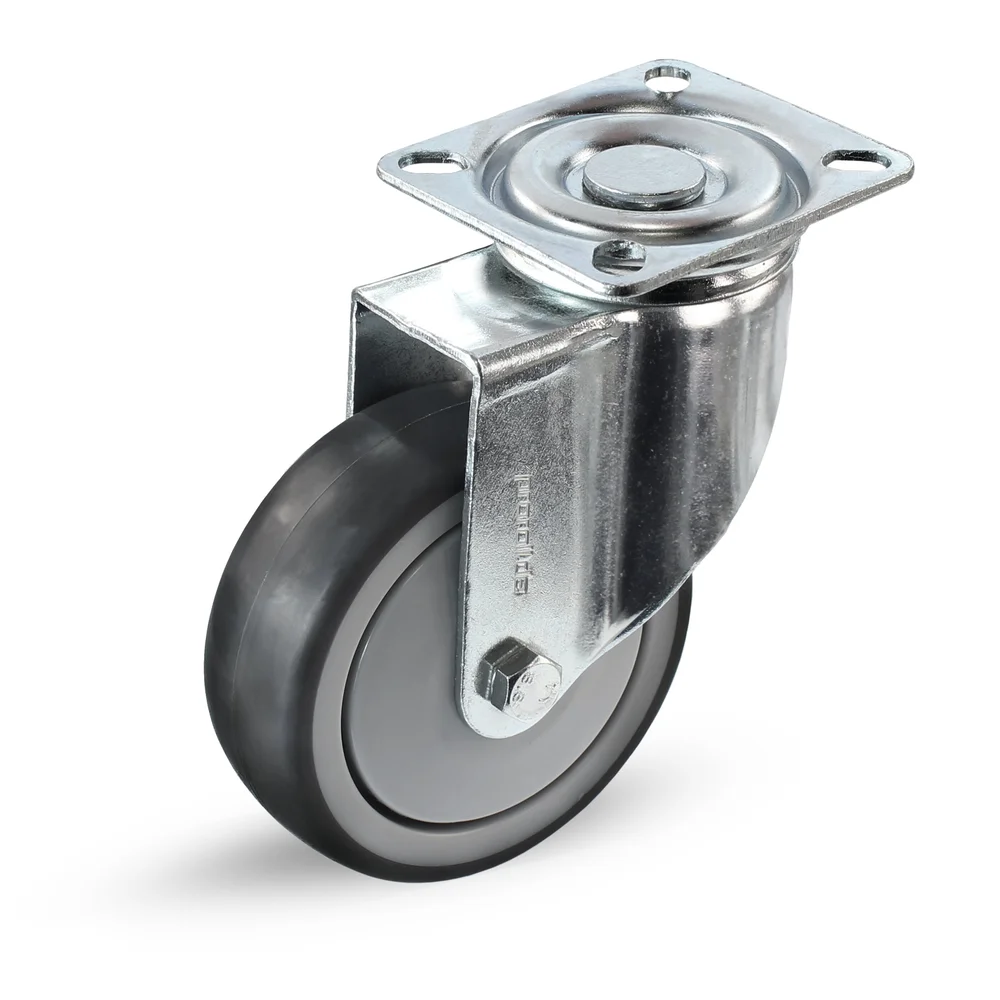

Apparatus castor 125/32 mm, galvanised

  • Wheel diameter
    Wheel diameter: 125 mm
  • Load capacity
    Load capacity: 100 kg
  • Overall height
    Overall height: 160 mm
  • Plate size
    Plate size: 67x77 mm
  • Wheel width
    Wheel width: 32 mm
  • Screw hole diameter
    8,5x12 mm
  • Tread material
    thermoplastic rubber
  • Housing material
    Sheet steel
  • Wheel type
    Lenkrolle
  • Warehouse
    Ball bearing
  • Locking device
    -
  • Minimal screw hole removal
    Minimal screw hole removal: 49x59 mm
  • Running surface Shore
    85
355 125 71 5 TK
