Series 380 - 5 TK

380 125 71 5 T K

Add to watch list

380 125 71 5 T K

Technical details

Download data sheet

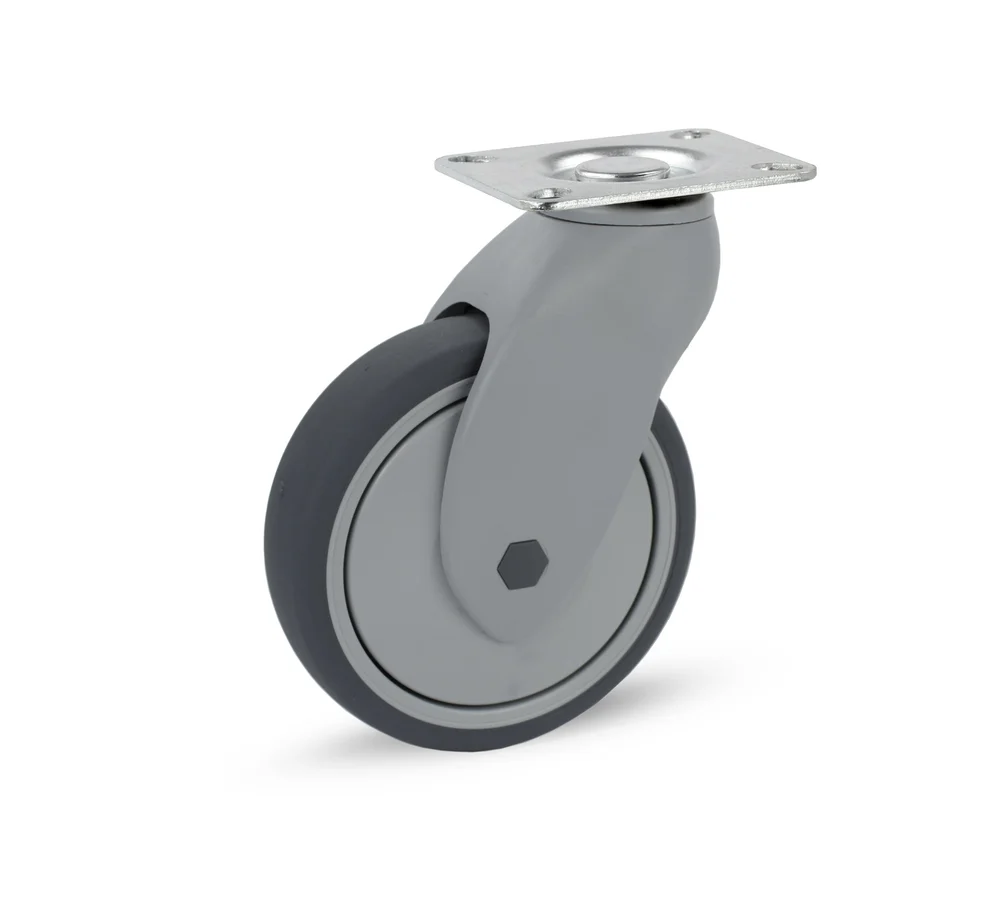

Plastic swivel castor

  • Wheel diameter
    Wheel diameter: 125 mm
  • Load capacity
    Load capacity: 100 kg
  • Overall height
    Overall height: 170 mm
  • Plate size
    Plate size: 77x67 mm
  • Wheel width
    Wheel width: 32 mm
  • Screw hole diameter
    8 mm
  • Tread material
    thermoplastic rubber
  • Housing material
    Glass fibre reinforced polyamide with mounting plate
  • Wheel type
    Lenkrolle
  • Warehouse
    Deep groove ball bearing
  • Locking device
    -
  • Minimal screw hole removal
    Minimal screw hole removal: 56x46 mm
  • Maximum screw hole distance
    Maximum screw hole distance: 61x51 mm
  • Running surface Shore
    87
380 125 71 5 T K
