Series 455 - 7 R

465 160 70 7 R

Add to watch list

465 160 70 7 R

Technical details

Download data sheet

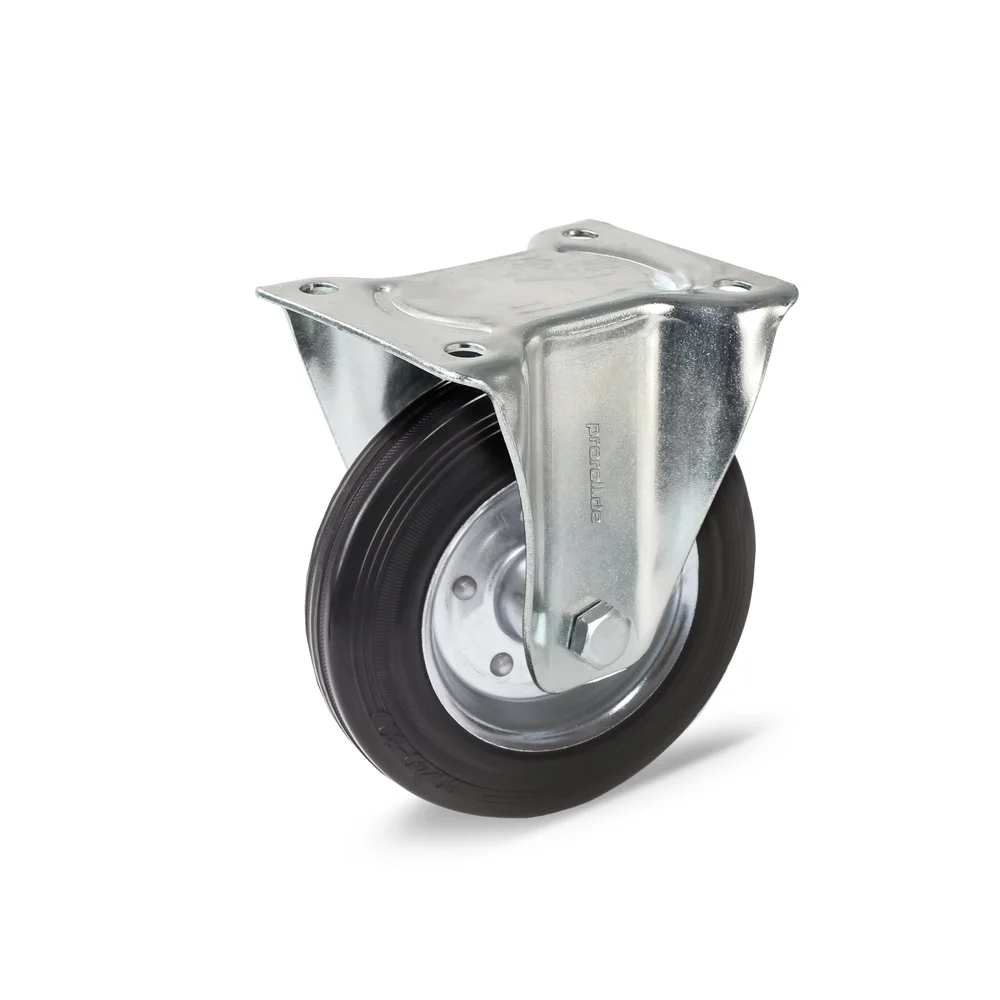

Transport castor 160/40 mm, galvanised

  • Wheel diameter
    Wheel diameter: 160 mm
  • Load capacity
    Load capacity: 150 kg
  • Overall height
    Overall height: 190 mm
  • Plate size
    Plate size: 135x110 mm
  • Wheel width
    Wheel width: 40 mm
  • Screw hole diameter
    11 mm
  • Tread material
    Solid rubber
  • Housing material
    Sheet steel
  • Wheel type
    Bockrolle
  • Warehouse
    Roller bearing
  • Locking device
    -
  • Minimal screw hole removal
    Minimal screw hole removal: 105x75 mm
  • Maximum screw hole distance
    Maximum screw hole distance: 105x80 mm
  • Running surface Shore
    85
465 160 70 7 R
