SM 15

SM 15 ROH OHNE HEBEL

Name: Mechanics made of raw steel
SKU: SM 15 ROH OHNE HEBEL

Intro

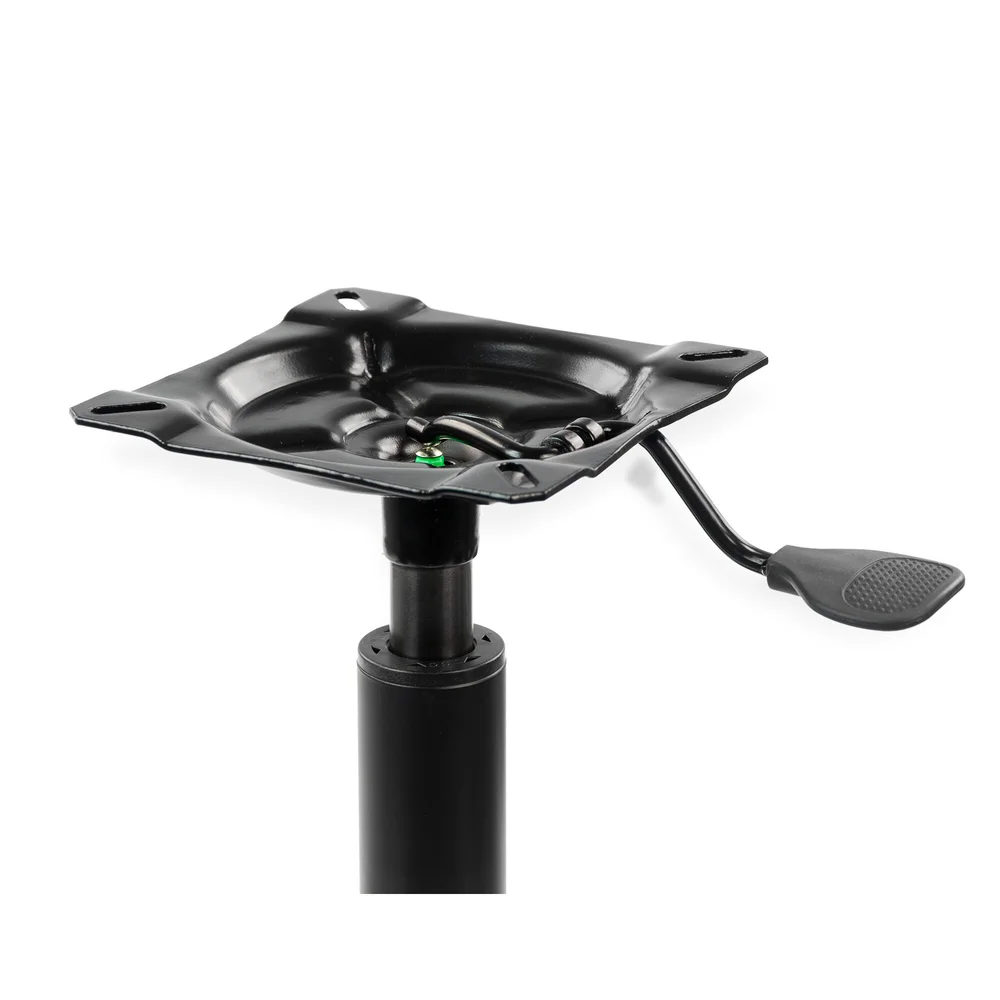

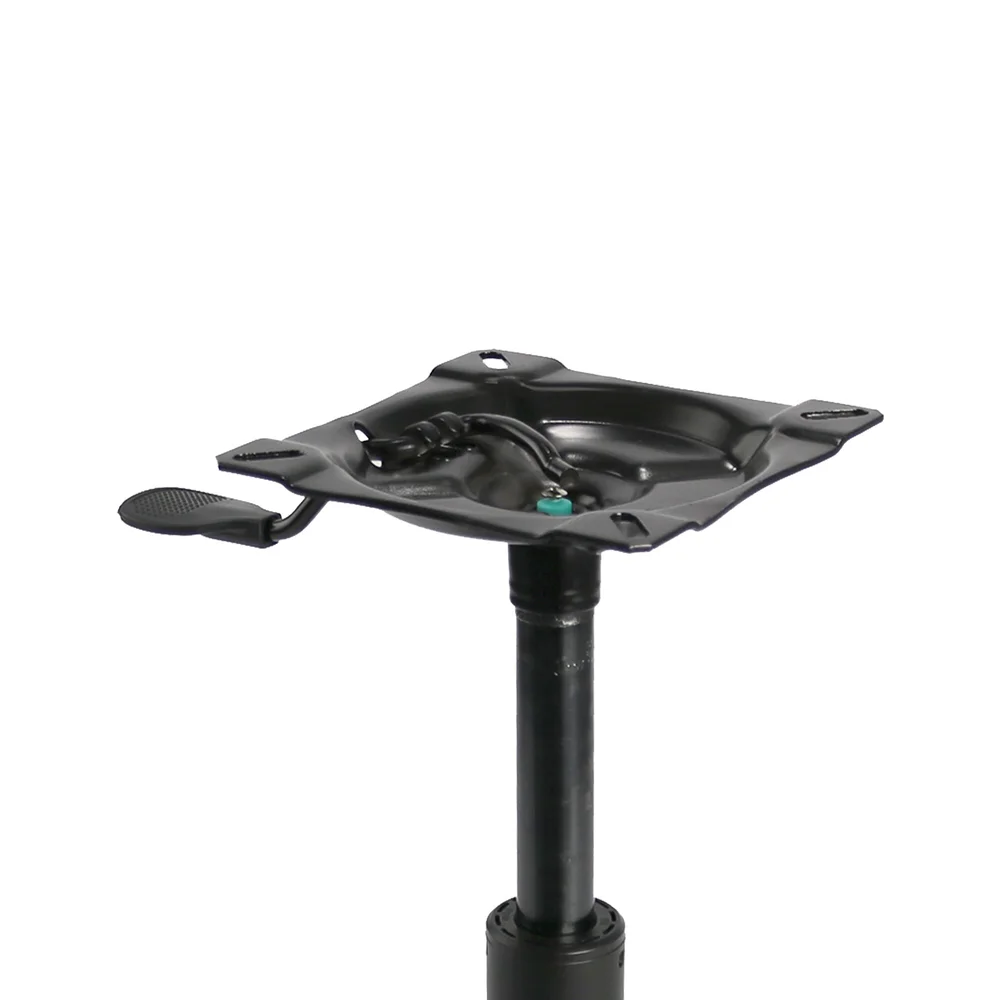

The SM15 is a simple, solid steel plate for seat mounting with integrated height adjustment - manufactured in the EU. Ideal for functional seating solutions where reliability and economy are important. Clear in design, strong in application. Available with press-on spring (AF) or without lever (OH).

Technical details

Download data sheet

Mechanics made of raw steel

Height: 58 mm
Hole size min.: 129x129 mm
Hole size max.: 151x151 mm
Width: 170 mm
Surface
raw
Lever length
no handle mm
Length: 170 mm
Settings
Seat height adjustment

All product variants

Product name	Height	Hole size min.	Hole size max.	Actions
SM 15 ROH OHNE HEBEL	58 mm	129x129 mm	151x151 mm
SM 15 3° OH	58 mm	129x129 mm	151x151 mm	SM 15 3° OH from series SM 15
SM 15	58 mm	129x129 mm	151x151 mm	SM 15 from series SM 15
SM 15 7,5°	58 mm	142x142 mm	142x142 mm	SM 15 7,5° from series SM 15
SM 15 3° AF	58 mm	129x129 mm	151x151 mm	SM 15 3° AF from series SM 15
SM 15 5°	58 mm	142x142 mm	142x142 mm	SM 15 5° from series SM 15
SM 15 AF	58 mm	129x129 mm	151x151 mm	SM 15 AF from series SM 15
SM 15 OH	58 mm	129x129 mm	151x151 mm	SM 15 OH from series SM 15
SM 15 ROH mit Griff	58 mm	129x129 mm	151x151 mm	SM 15 ROH mit Griff from series SM 15
