Thin Line 40mm

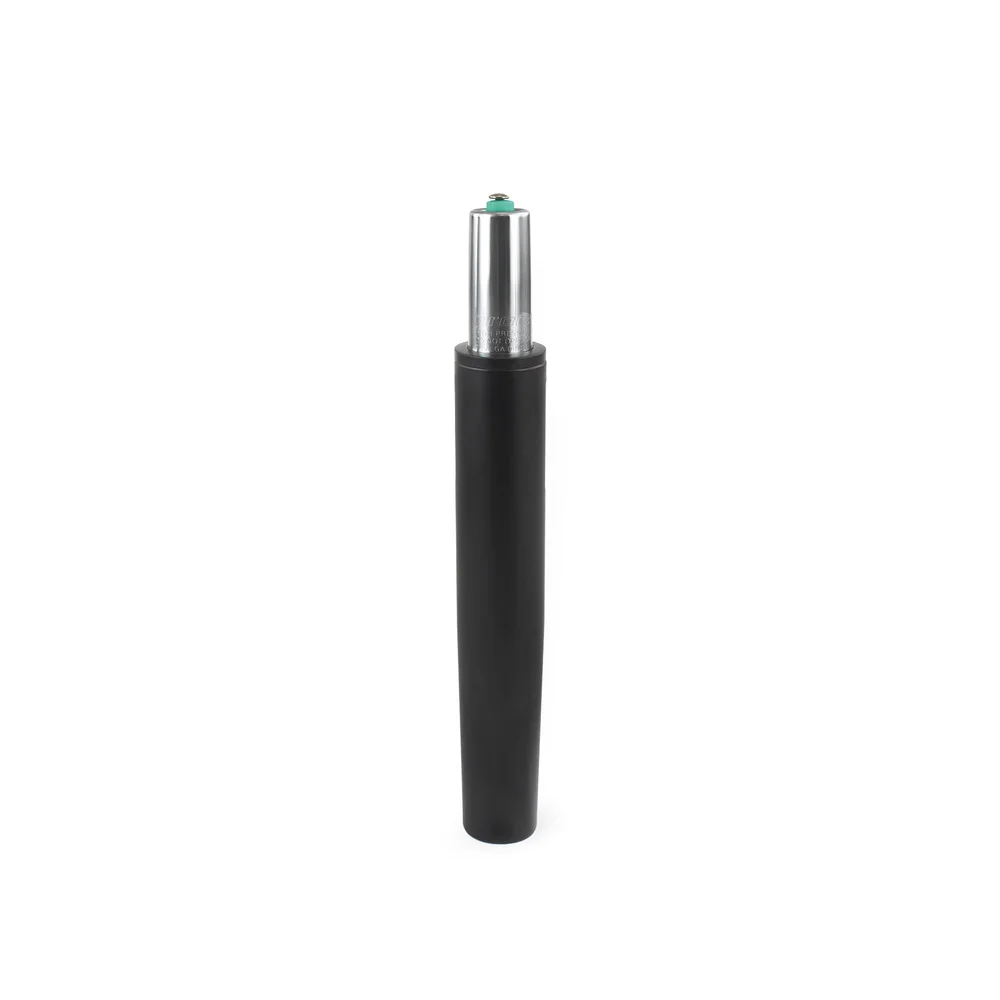

S 40 230 290 132 K 100 S X

Name: Chair column with gas lift, 40 mm diameter
SKU: S 40 230 290 132 K 100 S X

Intro

The chair column with 40 mm cone is suitable for bases with the corresponding mounting dimensions and impresses with its slim, discreet design. They are characterized by a particularly long guide bush to provide more stability. Ideal for elegant chair concepts where function and form form a clear line - compact, stylish and reliable in use.

Technical details

Download data sheet

Chair column with gas lift, 40 mm diameter

Colour: black
Total height lowest position mm: 290 mm
Stroke: 132 mm
Functions
Drehbar
Höhenverstellbar
Weight limit
140 kg
Class
4
Diameter gas unit
28 mm
Cone length gas unit
33 mm
Cone length
100 mm
Total height Highest position mm
422 mm
Standpipe length
230 mm
Standpipe diameter
40 mm
Build-up height from foot Min.
190 mm
Installation height from foot Max.
322 mm
Material: Sheet steel
Pressure
320 N
Bolting pattern
-
Heightadjustable
yes
Rotatable
yes

All product variants

Product name	Colour	Total height lowest position mm	Stroke	Functions	Actions
S 40 230 290 132 K 100 S X	black	290 mm	132 mm	Drehbar, Höhenverstellbar
S 40 230 290 132 K 100 C X	chrome	290 mm	132 mm	Drehbar, Höhenverstellbar	S 40 230 290 132 K 100 C X from series Thin Line 40mm
S 40 230 290 132 K 61 C X	chrome	290 mm	132 mm	Drehbar, Höhenverstellbar	S 40 230 290 132 K 61 C X from series Thin Line 40mm
S 40 230 290 132 K 60 S X	black	290 mm	132 mm	Drehbar, Höhenverstellbar	S 40 230 290 132 K 60 S X from series Thin Line 40mm
S 40 300 363 202 K 100 C X	chrome	363 mm	202 mm	Drehbar, Höhenverstellbar	S 40 300 363 202 K 100 C X from series Thin Line 40mm
S 40 300 363 202 K 100 S X	black	363 mm	202 mm	Drehbar, Höhenverstellbar	S 40 300 363 202 K 100 S X from series Thin Line 40mm

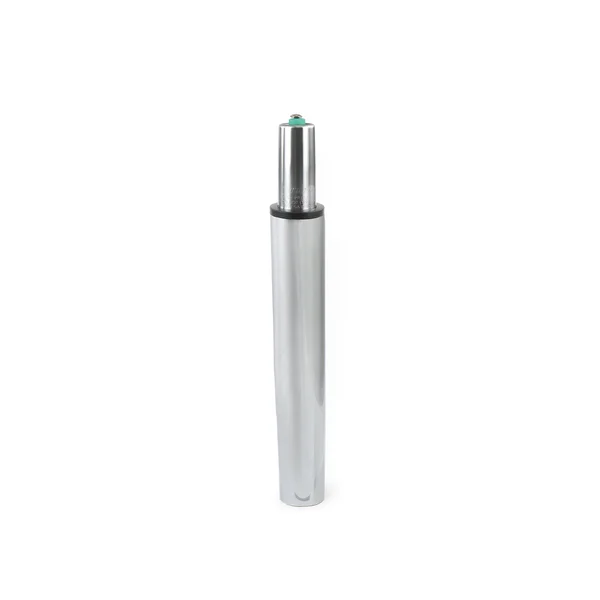

S 40 300 363 202 K 61 C X	chrome	363 mm	202 mm	Drehbar, Höhenverstellbar	S 40 300 363 202 K 61 C X from series Thin Line 40mm
S 40 300 363 202 K 61 S X	black	363 mm	202 mm	Drehbar, Höhenverstellbar	S 40 300 363 202 K 61 S X from series Thin Line 40mm
S 40 370 448 257 K 100 S X	black	448 mm	257 mm	Drehbar, Höhenverstellbar	S 40 370 448 257 K 100 S X from series Thin Line 40mm
S 40 370 448 257 K 61 S X	black	448 mm	257 mm	Drehbar, Höhenverstellbar	S 40 370 448 257 K 61 S X from series Thin Line 40mm
