Thin Line 40mm

S 40 370 448 257 K 100 S X

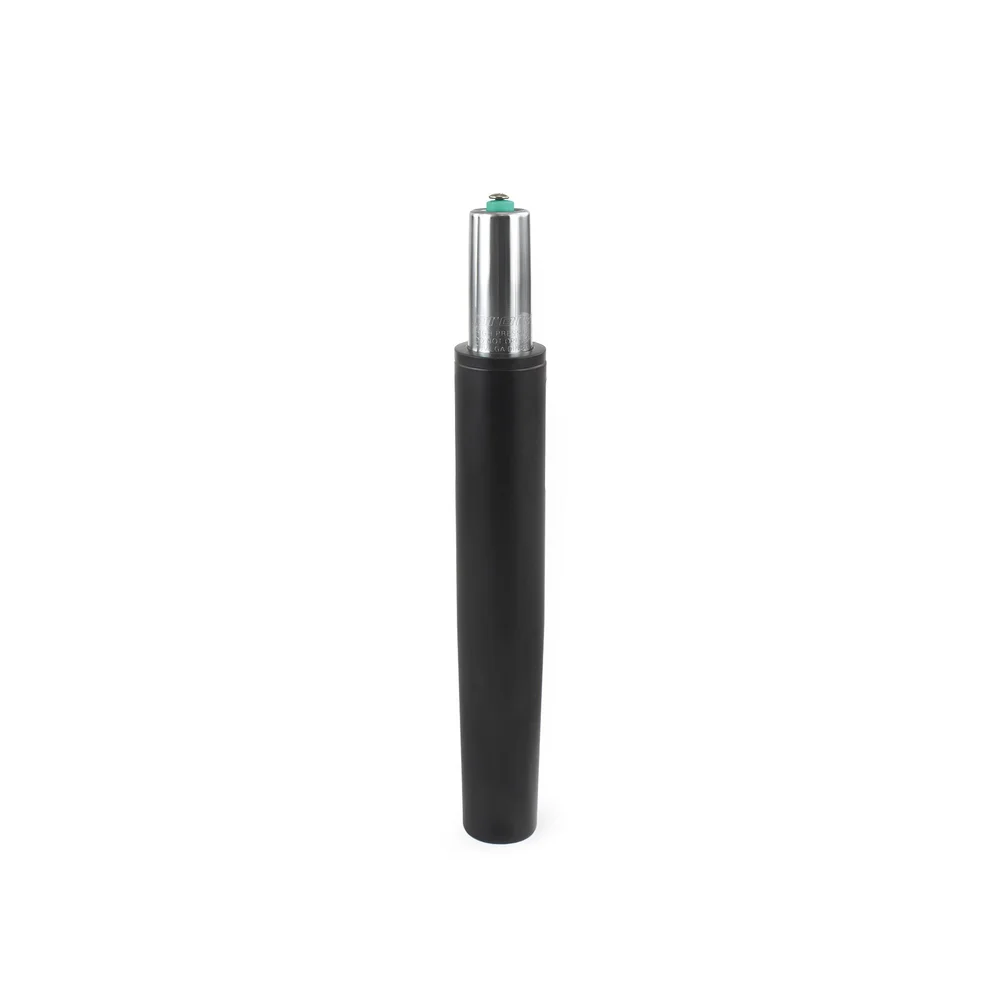

Name: Chair column with gas lift, 40 mm diameter
SKU: S 40 370 448 257 K 100 S X

Intro

The chair column with 40 mm cone is suitable for bases with the corresponding mounting dimensions and impresses with its slim, discreet design. They are characterized by a particularly long guide bush to provide more stability. Ideal for elegant chair concepts where function and form form a clear line - compact, stylish and reliable in use.

Technical details

Download data sheet

Chair column with gas lift, 40 mm diameter

Colour
black
Total height lowest position mm
448 mm
Stroke
257 mm
Functions
Rotatable
Height adjustable
Weight limit
140 kg
Class
4
Diameter gas unit
28 mm
Cone length gas unit
33 mm
Cone length
100 mm
Total height Highest position mm
705 mm
Standpipe length
370 mm
Standpipe diameter
40 mm
Build-up height from foot Min.
348 mm
Installation height from foot Max.
605 mm
Material
Sheet steel
Pressure
320 N
Bolting pattern
-
Heightadjustable
yes
Rotatable
yes

All product variants

Product name	Colour	Total height lowest position mm	Stroke	Functions	Actions
S 40 370 448 257 K 100 S X	black	448 mm	257 mm	Rotatable, Height adjustable

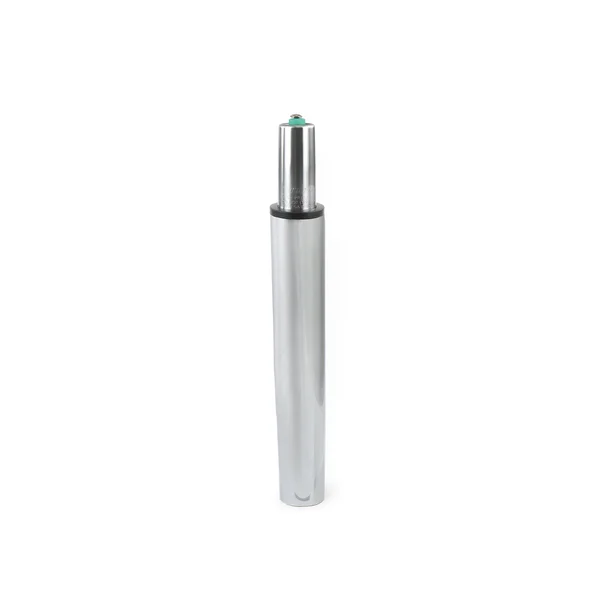

S 40 230 290 132 K 100 C X	chrome	290 mm	132 mm	Rotatable, Height adjustable	S 40 230 290 132 K 100 C X from series Thin Line 40mm
S 40 230 290 132 K 100 S X	black	290 mm	132 mm	Rotatable, Height adjustable	S 40 230 290 132 K 100 S X from series Thin Line 40mm
S 40 230 290 132 K 61 C X	chrome	290 mm	132 mm	Rotatable, Height adjustable	S 40 230 290 132 K 61 C X from series Thin Line 40mm
S 40 230 290 132 K 60 S X	black	290 mm	132 mm	Rotatable, Height adjustable	S 40 230 290 132 K 60 S X from series Thin Line 40mm
S 40 300 363 202 K 100 C X	chrome	363 mm	202 mm	Rotatable, Height adjustable	S 40 300 363 202 K 100 C X from series Thin Line 40mm
S 40 300 363 202 K 100 S X	black	363 mm	202 mm	Rotatable, Height adjustable	S 40 300 363 202 K 100 S X from series Thin Line 40mm
S 40 300 363 202 K 61 C X	chrome	363 mm	202 mm	Rotatable, Height adjustable	S 40 300 363 202 K 61 C X from series Thin Line 40mm
S 40 300 363 202 K 61 S X	black	363 mm	202 mm	Rotatable, Height adjustable	S 40 300 363 202 K 61 S X from series Thin Line 40mm
S 40 370 448 257 K 61 S X	black	448 mm	257 mm	Rotatable, Height adjustable	S 40 370 448 257 K 61 S X from series Thin Line 40mm
