Non Rotating

ND 375 431 262 K 70 C X

Add to watch list

ND 375 431 262 K 70 C X

Intro

The ND chair column does not swivel and ensures stable, controlled sitting positions - perfect when height adjustment is required but swivelling is undesirable. Ideal for laboratories, orchestra chairs or quiet workstations. For concentrated work with secure support - reliable, functional and precise.

Technical details

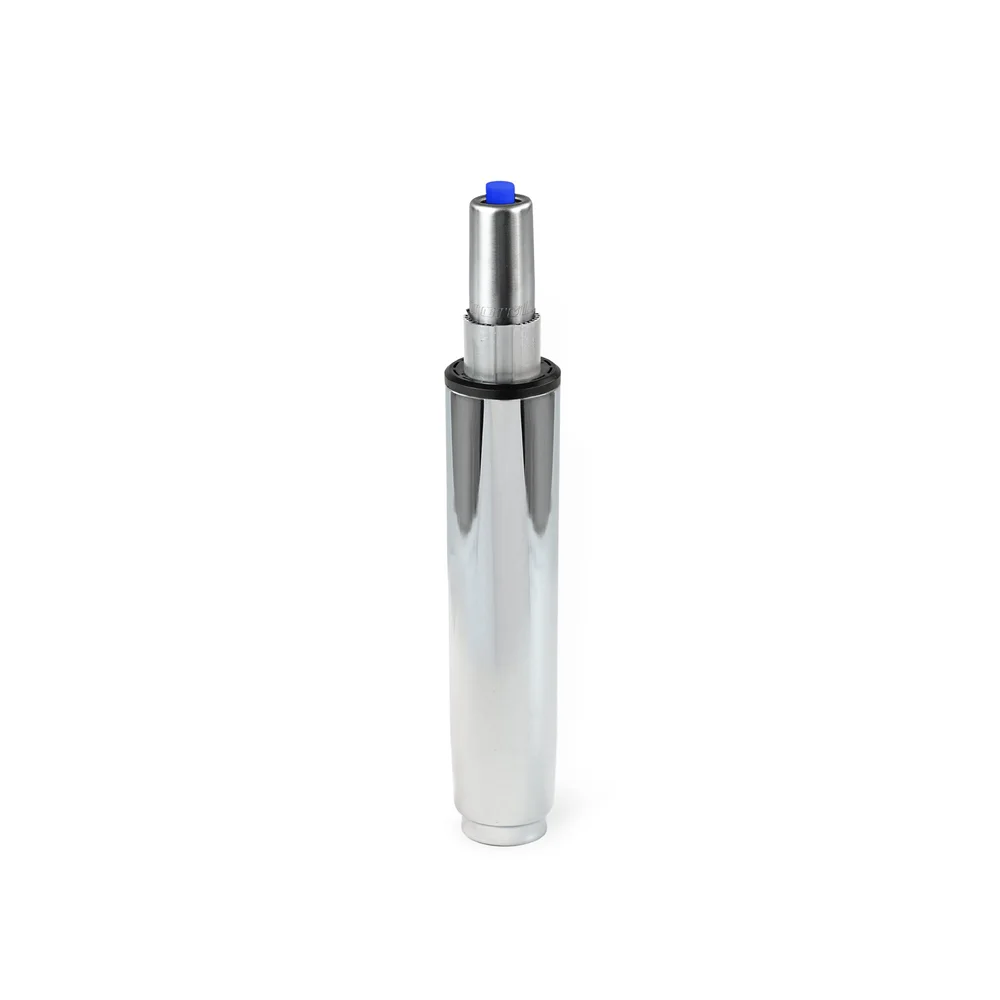

Chair column with gas lift, chrome, non-rotatable

  • Colour
    chrome
  • Total height lowest position mm
    431 mm
  • Stroke
    262 mm
  • Heightadjustable
    yes
  • Weight limit
    140 kg
  • Class
    4
  • Diameter gas unit
    28 mm
  • Cone length gas unit
    34 mm
  • Cone length
    70 mm
  • Total height Highest position mm
    693 mm
  • Standpipe length
    375 mm
  • Standpipe diameter
    50 mm
  • Build-up height from foot Min.
    361 mm
  • Installation height from foot Max.
    623 mm
  • Pressure
    320 N
  • Bolting pattern
    -
ND 375 431 262 K 70 C X
