Intro

Northcomp chair columns are designed as gas pressure columns for infinitely variable, comfortable adjustment of the seat height of office swivel chairs, task chairs, armchairs or stools. All chair columns are certified and tested by Bifma and Tüv in accordance with the EN Class 4 standard. Whether standard or customised, we supply the right height-adjustable chair column with a high level of comfort for long-lasting use.

Technical details

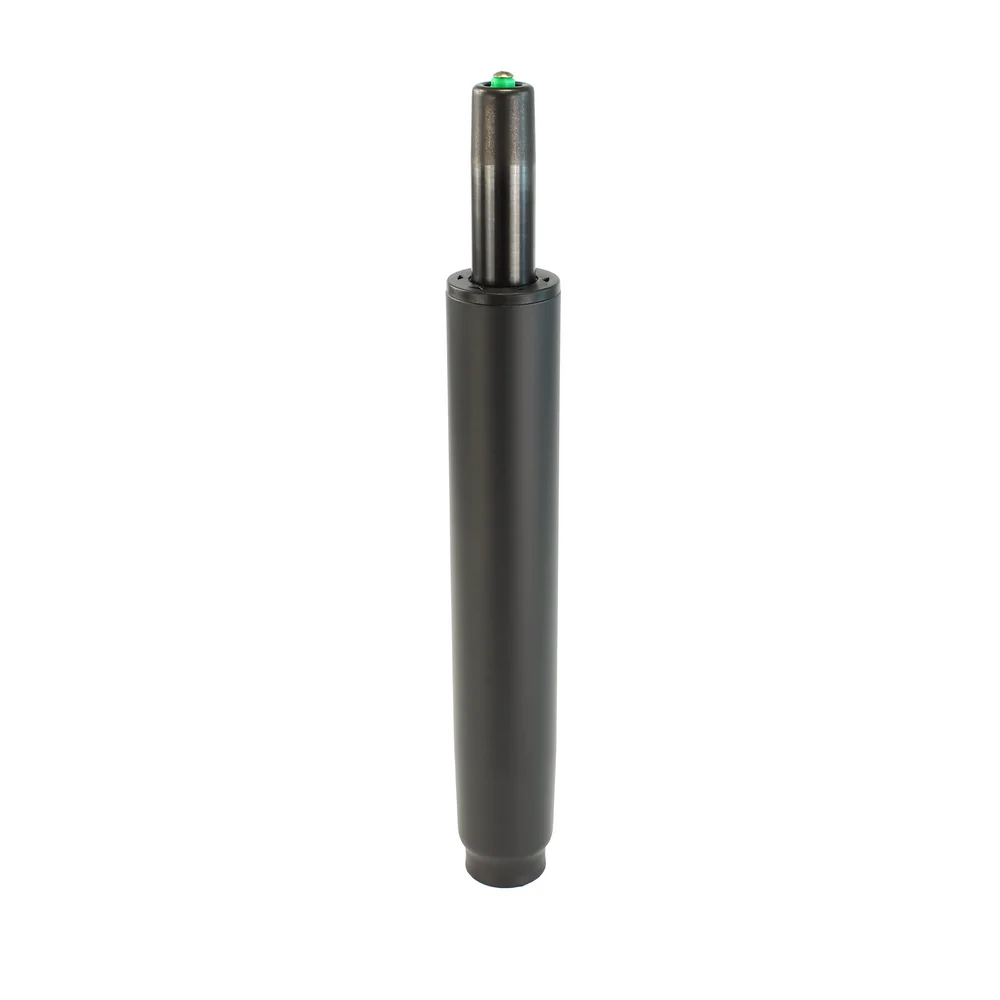

X LINE chair column with gas lift, black

  • Colour
    black
  • Total height lowest position mm
    280 mm
  • Stroke
    86 mm
  • Rotatable
    yes
  • Heightadjustable
    yes
  • Weight limit
    140 kg
  • Class
    4
  • Diameter gas unit
    28 mm
  • Cone length gas unit
    34 mm
  • Cone length
    70 mm
  • Total height Highest position mm
    366 mm
  • Standpipe length
    215 mm
  • Standpipe diameter
    50 mm
  • Build-up height from foot Min.
    210 mm
  • Installation height from foot Max.
    296 mm
  • Pressure
    320 N
S 215 280 83 K 70 S X
