Revolving

SDR 300 363 K 50 S X

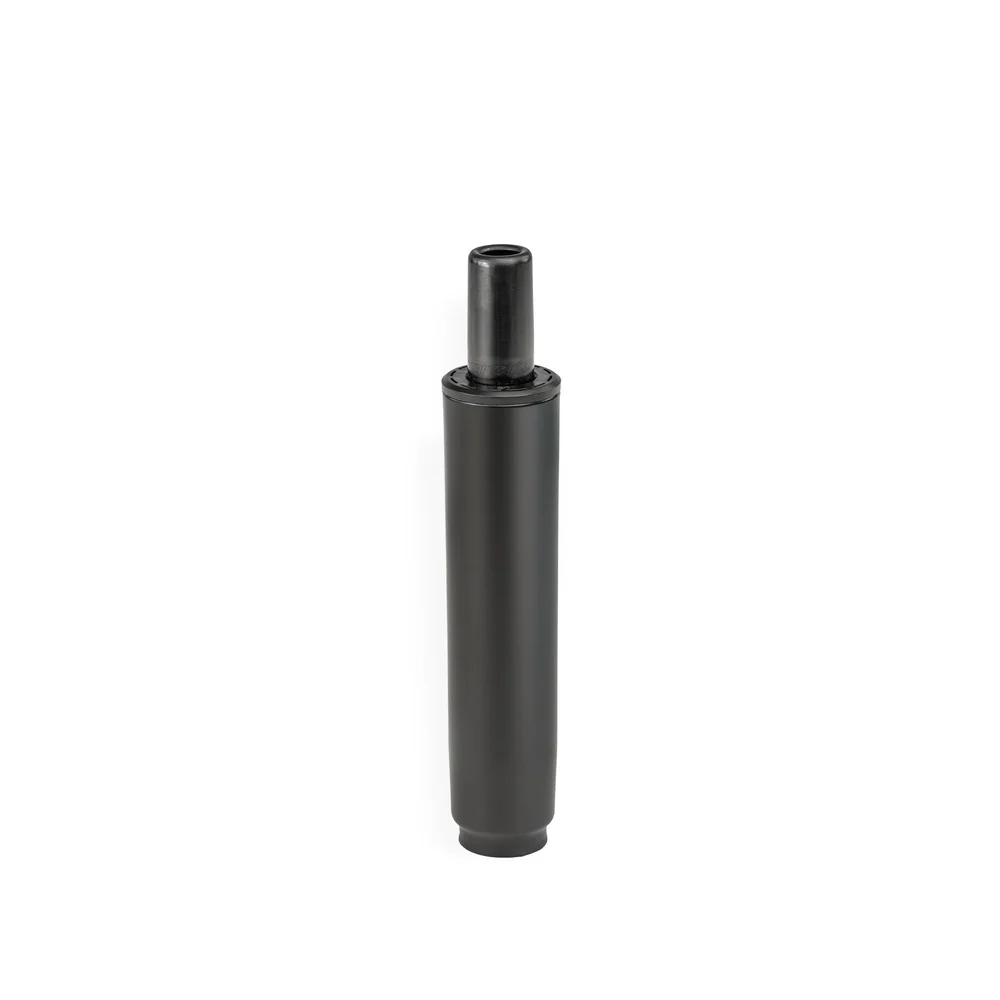

Name: Gas spring with auto return (revolving), black
SKU: SDR 300 363 K 50 S X

Intro

The SDR chair column can be swivelled and is equipped with a practical revolving function - perfect for dining, home office or conference chairs. It enables gentle swivelling movements for more comfort and flexibility in everyday life. Discreet in design, functional in use - ideal for stylish seating solutions with freedom of movement.

Technical details

Download data sheet

Gas spring with auto return (revolving), black

Colour: black
Total height lowest position mm: 363 mm
Functions
Drehbar
Revolving
Weight limit
140 kg
Class
4
Diameter gas unit
28 mm
Cone length gas unit
33 mm
Cone length
50 mm
Total height Highest position mm
363 mm
Standpipe length
300 mm
Standpipe diameter
50 mm
Build-up height from foot Min.
310 mm
Installation height from foot Max.
310 mm
Material: Sheet steel
Bolting pattern
-
Revolving
yes
Rotatable
yes

All product variants

Product name	Colour	Total height lowest position mm	Functions	Actions
SDR 300 363 K 50 S X	black	363 mm	Drehbar, Revolving
SDR 80 136 K 48 S X	black	136 mm	Drehbar, Revolving	SDR 80 136 K 48 S X from series Revolving
SDR 190 248 K 75 C X	chrome	248 mm	Drehbar, Revolving	SDR 190 248 K 75 C X from series Revolving
SDR 195 291 K 70 C X	chrome	291 mm	Drehbar, Revolving	SDR 195 291 K 70 C X from series Revolving
SDR 210 259 K 53 C X	chrome	259 mm	Drehbar, Revolving	SDR 210 259 K 53 C X from series Revolving
SDR 215 301 K 60 C X	chrome	301 mm	Drehbar, Revolving	SDR 215 301 K 60 C X from series Revolving
SDR 215 301 K 60 S X	black	301 mm	Drehbar, Revolving	SDR 215 301 K 60 S X from series Revolving
SDR 220 269 K 65 C X	chrome	269 mm	Drehbar, Revolving	SDR 220 269 K 65 C X from series Revolving
SDR 250 306 K 75 C X	chrome	306 mm	Drehbar, Revolving	SDR 250 306 K 75 C X from series Revolving
SDR 250 306 K 75 S X	black	306 mm	Drehbar, Revolving	SDR 250 306 K 75 S X from series Revolving
SDR 280 333 K 75 C X	chrome	333 mm	Drehbar, Revolving	SDR 280 333 K 75 C X from series Revolving
SDR 280 333 K 75 S X	black	333 mm	Drehbar, Revolving	SDR 280 333 K 75 S X from series Revolving
SDR 300 363 K 50 C X	chrome	363 mm	Drehbar, Revolving	SDR 300 363 K 50 C X from series Revolving
