Standard Line Black

S 285 355 195 K 50 S X

Add to watch list

S 285 355 195 K 50 S X

Intro

Northcomp chair columns are designed as gas pressure columns for infinitely variable, comfortable adjustment of the seat height of office swivel chairs, task chairs, armchairs or stools. All chair columns are certified and tested by Bifma and TÜV in accordance with the EN Class 4 standard. They are characterized by a particularly long guide bush to provide more stability. We supply the matching, height-adjustable chair column with high comfort for long-lasting use.

Technical details

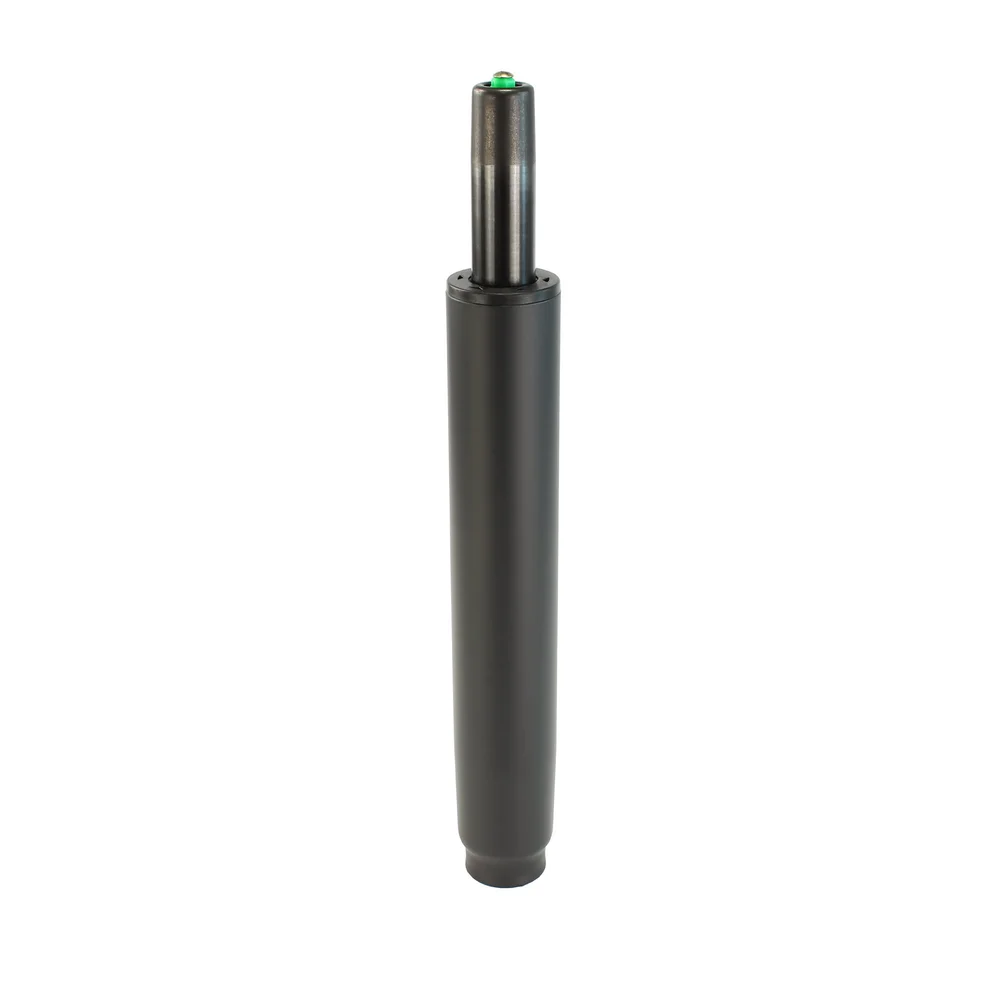

X LINE chair column with gas lift, black

  • Colour
    Colour
    black
  • Total height at lowest position (mm)
    Total height at lowest position (mm)
    355 mm
  • Stroke
    Stroke
    195 mm
  • Functions
    Rotatable
    Height-adjustable
  • Weight limit
    140 kg
  • Class
    4
  • Diameter of gas unit
    28 mm
  • Cone length – gas unit
    33 mm
  • Cone length
    50 mm
  • Total height at highest position (mm)
    550 mm
  • Riser pipe length
    285 mm
  • Riser pipe diameter
    50 mm
  • Minimum installation height from the floor
    305 mm
  • Maximum installation height from the base
    480 mm
  • Material
    Material
    sheet steel
  • Print
    320 N
  • Height-adjustable
    yes
  • Rotatable
    yes
S 285 355 195 K 50 S X

All product variants

Product name Colour Total height at lowest position (mm) Stroke Functions Actions
S 285 355 195 K 50 S X

S 285 355 195 K 50 S X

black 355 mm 195 mm Rotatable, Height-adjustable
black 526 mm 250 mm Rotatable, Height-adjustable
S 465 526 250 K 50 S X from series Standard Line Black
black 515 mm 261 mm Rotatable, Height-adjustable
S 455 515 261 K 70 S X from series Standard Line Black
black 431 mm 262 mm Rotatable, Height-adjustable
S 375 431 262 K 70 S X from series Standard Line Black
black 431 mm 260 mm Rotatable, Height-adjustable
S 375 431 262 K 50 S X from series Standard Line Black
black 431 mm 262 mm Rotatable, Height-adjustable
S 375 431 262 K 105 S X from series Standard Line Black
black 373 mm 212 mm Rotatable, Height-adjustable
S 305 373 212 K 70 S X from series Standard Line Black
black 373 mm 192 mm Rotatable, Height-adjustable
S 305 373 192 K 70 S X 200 N from series Standard Line Black
black 373 mm 192 mm Rotatable, Height-adjustable
S 305 373 192 K 70 S X from series Standard Line Black
black 373 mm 192 mm Rotatable, Height-adjustable
S 305 373 192 K 50 S X from series Standard Line Black
black 343 mm 192 mm Rotatable, Height-adjustable
S 290 343 200 K 105 S X from series Standard Line Black
black 373 mm 192 mm Rotatable, Height-adjustable
S 285 373 192 K 85 S X from series Standard Line Black
black 350 mm 195 mm Rotatable, Height-adjustable
S 285 350 195 K 100 S X from series Standard Line Black
black 308 mm 157 mm Rotatable, Height-adjustable
S 256 308 157 K 70 S X 200 N from series Standard Line Black
black 308 mm 157 mm Rotatable, Height-adjustable
S 256 308 157 K 70 S X from series Standard Line Black
black 286 mm 132 mm Rotatable, Height-adjustable
S 235 286 132 K 95 S X from series Standard Line Black
black 290 mm 132 mm Rotatable, Height-adjustable
S 235 290 132 K 70 S X from series Standard Line Black
black 286 mm 132 mm Rotatable, Height-adjustable
S 235 286 132 K 125 S X from series Standard Line Black
black 281 mm 140 mm Rotatable, Height-adjustable
S 225 281 140 K 100 S X 200 N from series Standard Line Black
black 267 mm 122 mm Rotatable, Height-adjustable
S 215 267 122 K 70 S X from series Standard Line Black
black 261 mm 112 mm Rotatable, Height-adjustable
S 215 261 112 K 85 S X 200 N from series Standard Line Black
black 253 mm 126 mm Rotatable, Height-adjustable
S 201 253 126 K 125 S X from series Standard Line Black
black 249 mm 117 mm Rotatable, Height-adjustable
S 201 249 117 K 70 S X 220 N from series Standard Line Black
black 234 mm 100 mm Rotatable, Height-adjustable
S 181 234 100 K 70 S X from series Standard Line Black
black 234 mm 100 mm Rotatable, Height-adjustable
S 181 234 100 K 70 S X 200 N from series Standard Line Black
black 234 mm 100 mm Rotatable, Height-adjustable
S 181 234 100 K 125 S X from series Standard Line Black
black 220 mm 62 mm Rotatable, Height-adjustable
S 151 220 62 K 70 S X from series Standard Line Black
