Standard Line Black

S 215 280 83 K 70 S X

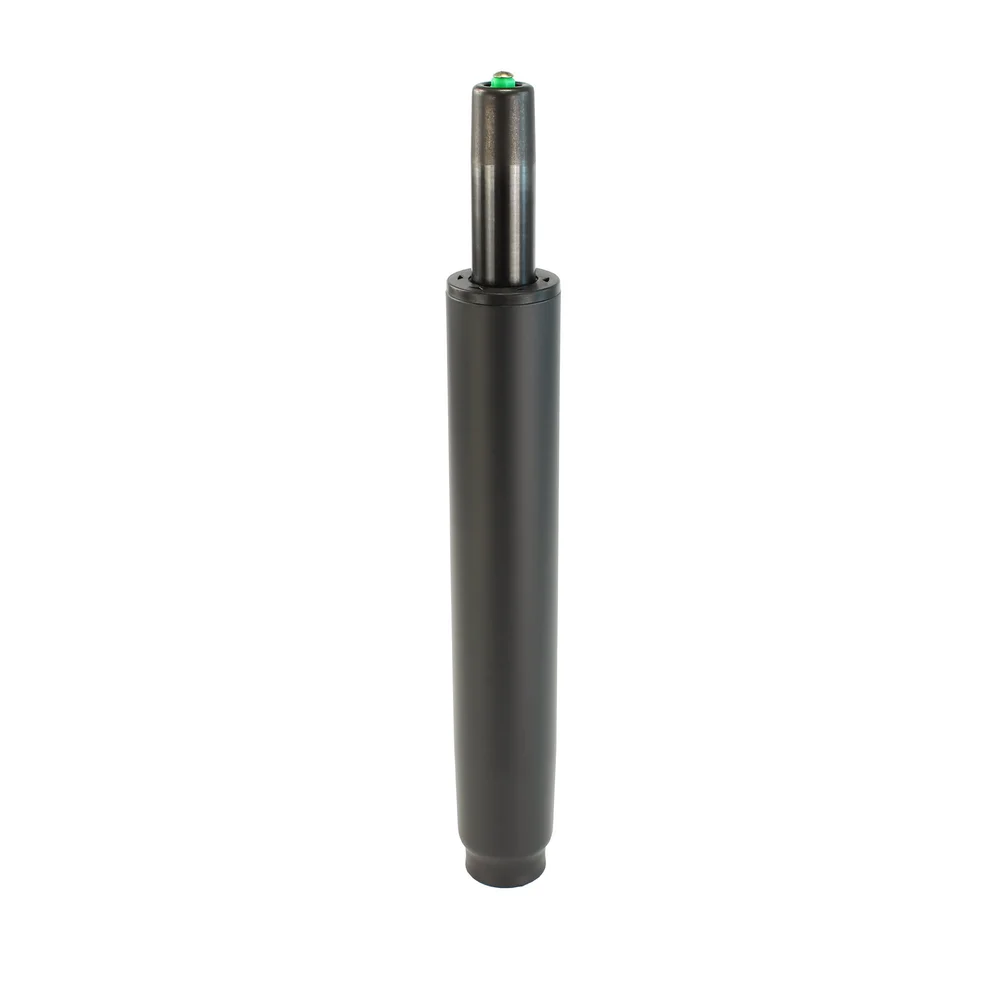

Name: X LINE chair column with gas lift, black
SKU: S 215 280 83 K 70 S X

Intro

Northcomp chair columns are designed as gas pressure columns for infinitely variable, comfortable adjustment of the seat height of office swivel chairs, task chairs, armchairs or stools. All chair columns are certified and tested by Bifma and TÜV in accordance with the EN Class 4 standard. They are characterized by a particularly long guide bush to provide more stability. We supply the matching, height-adjustable chair column with high comfort for long-lasting use.

Technical details

Download data sheet

X LINE chair column with gas lift, black

Colour
black
Total height lowest position mm
280 mm
Stroke
86 mm
Rotatable
yes
Heightadjustable
yes
Weight limit
140 kg
Class
4
Diameter gas unit
28 mm
Cone length gas unit
34 mm
Cone length
70 mm
Total height Highest position mm
366 mm
Standpipe length
215 mm
Standpipe diameter
50 mm
Build-up height from foot Min.
210 mm
Installation height from foot Max.
296 mm
Pressure
320 N

All product variants

Product name	Colour	Total height lowest position mm	Stroke	Functions	Actions
S 215 280 83 K 70 S X	black	280 mm	86 mm	-
S 465 526 250 K 50 S X	black	526 mm	250 mm	Rotatable, Height adjustable	S 465 526 250 K 50 S X from series Standard Line Black
S 455 515 261 K 70 S X	black	515 mm	261 mm	Rotatable, Height adjustable	S 455 515 261 K 70 S X from series Standard Line Black
S 375 431 262 K 70 S X	black	431 mm	262 mm	Rotatable, Height adjustable	S 375 431 262 K 70 S X from series Standard Line Black
S 375 431 262 K 50 S X	black	431 mm	260 mm	Rotatable, Height adjustable	S 375 431 262 K 50 S X from series Standard Line Black
S 375 431 262 K 105 S X	black	431 mm	262 mm	Rotatable, Height adjustable	S 375 431 262 K 105 S X from series Standard Line Black
S 305 373 212 K 70 S X	black	373 mm	212 mm	Rotatable, Height adjustable	S 305 373 212 K 70 S X from series Standard Line Black
S 305 373 192 K 70 S X 200 N	black	373 mm	192 mm	Rotatable, Height adjustable	S 305 373 192 K 70 S X 200 N from series Standard Line Black
S 305 373 192 K 70 S X	black	373 mm	192 mm	Rotatable, Height adjustable	S 305 373 192 K 70 S X from series Standard Line Black
S 305 373 192 K 50 S X	black	373 mm	192 mm	Rotatable, Height adjustable	S 305 373 192 K 50 S X from series Standard Line Black
S 290 343 200 K 105 S X	black	343 mm	192 mm	Rotatable, Height adjustable	S 290 343 200 K 105 S X from series Standard Line Black
S 285 373 192 K 85 S X	black	373 mm	192 mm	Rotatable, Height adjustable	S 285 373 192 K 85 S X from series Standard Line Black
S 285 355 195 K 50 S X	black	355 mm	195 mm	Rotatable, Height adjustable	S 285 355 195 K 50 S X from series Standard Line Black
S 285 350 195 K 100 S X	black	350 mm	195 mm	Rotatable, Height adjustable	S 285 350 195 K 100 S X from series Standard Line Black
S 256 308 157 K 70 S X 200 N	black	308 mm	157 mm	Rotatable, Height adjustable	S 256 308 157 K 70 S X 200 N from series Standard Line Black
S 256 308 157 K 70 S X	black	308 mm	157 mm	Rotatable, Height adjustable	S 256 308 157 K 70 S X from series Standard Line Black
S 235 286 132 K 95 S X	black	286 mm	132 mm	Rotatable, Height adjustable	S 235 286 132 K 95 S X from series Standard Line Black
S 235 290 132 K 70 S X	black	290 mm	132 mm	Rotatable, Height adjustable	S 235 290 132 K 70 S X from series Standard Line Black
S 235 286 132 K 125 S X	black	286 mm	132 mm	Rotatable, Height adjustable	S 235 286 132 K 125 S X from series Standard Line Black
S 225 281 140 K 100 S X 200 N	black	281 mm	140 mm	Rotatable, Height adjustable	S 225 281 140 K 100 S X 200 N from series Standard Line Black
S 215 267 122 K 70 S X	black	267 mm	122 mm	Rotatable, Height adjustable	S 215 267 122 K 70 S X from series Standard Line Black
S 215 261 112 K 85 S X 200 N	black	261 mm	112 mm	Rotatable, Height adjustable	S 215 261 112 K 85 S X 200 N from series Standard Line Black
S 201 253 126 K 125 S X	black	253 mm	126 mm	Rotatable, Height adjustable	S 201 253 126 K 125 S X from series Standard Line Black
S 201 249 117 K 70 S X 220 N	black	249 mm	117 mm	Rotatable, Height adjustable	S 201 249 117 K 70 S X 220 N from series Standard Line Black
S 181 234 100 K 70 S X	black	234 mm	100 mm	Rotatable, Height adjustable	S 181 234 100 K 70 S X from series Standard Line Black
S 181 234 100 K 70 S X 200 N	black	234 mm	100 mm	Rotatable, Height adjustable	S 181 234 100 K 70 S X 200 N from series Standard Line Black
S 181 234 100 K 125 S X	black	234 mm	100 mm	Rotatable, Height adjustable	S 181 234 100 K 125 S X from series Standard Line Black
S 151 220 62 K 70 S X	black	220 mm	62 mm	Rotatable, Height adjustable	S 151 220 62 K 70 S X from series Standard Line Black
