Standard Line Chrome

S 235 290 132 K 70 C X

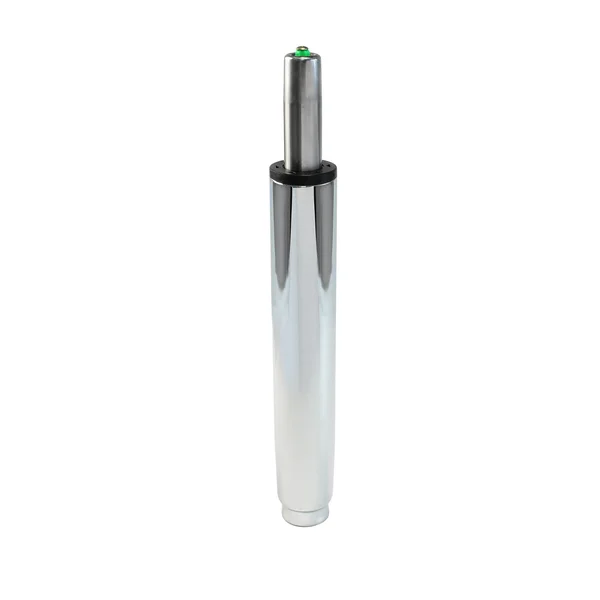

Name: X LINE chair column with gas lift, chrome
SKU: S 235 290 132 K 70 C X

Intro

Northcomp chair columns are designed as gas pressure columns for infinitely variable, comfortable adjustment of the seat height of office swivel chairs, task chairs, armchairs or stools. All chair columns are certified and tested by Bifma and TÜV in accordance with the EN Class 4 standard. They are characterized by a particularly long guide bush to provide more stability. We supply the matching, height-adjustable chair column with high comfort for long-lasting use.

Technical details

Download data sheet

X LINE chair column with gas lift, chrome

Colour
chrome
Total height lowest position mm
290 mm
Stroke
132 mm
Functions
Rotatable
Height adjustable
Weight limit
140 kg
Class
4
Diameter gas unit
28 mm
Cone length gas unit
33 mm
Cone length
70 mm
Total height Highest position mm
422 mm
Standpipe length
235 mm
Standpipe diameter
50 mm
Build-up height from foot Min.
217 mm
Installation height from foot Max.
350 mm
Material
Sheet steel
Pressure
320 N
Heightadjustable
yes
Rotatable
yes

All product variants

Product name	Colour	Total height lowest position mm	Stroke	Functions	Actions
S 235 290 132 K 70 C X	chrome	290 mm	132 mm	Rotatable, Height adjustable
S 181 234 100 K 125 C X	chrome	234 mm	100 mm	Rotatable, Height adjustable	S 181 234 100 K 125 C X from series Standard Line Chrome
S 201 249 117 K 70 SI X 200 N	silver	249 mm	117 mm	Rotatable, Height adjustable	S 201 249 117 K 70 SI X 200 N from series Standard Line Chrome
S 305 373 192 K 70 C X 200 N	chrome	373 mm	192 mm	Rotatable, Height adjustable	S 305 373 192 K 70 C X 200 N from series Standard Line Chrome
S 201 253 126 K 125 C X	chrome	253 mm	126 mm	Rotatable, Height adjustable	S 201 253 126 K 125 C X from series Standard Line Chrome
S 465 526 250 K 50 C X	chrome	526 mm	250 mm	Rotatable, Height adjustable	S 465 526 250 K 50 C X from series Standard Line Chrome
S 235 290 132 K 70 SI X	silver	290 mm	131 mm	Rotatable, Height adjustable	S 235 290 132 K 70 SI X from series Standard Line Chrome
S 235 290 132 K 70 C X 200	chrome	290 mm	132 mm	Rotatable, Height adjustable	S 235 290 132 K 70 C X 200 from series Standard Line Chrome
S 180 234 100 K 70 SI X	silver	234 mm	100 mm	Rotatable, Height adjustable	S 180 234 100 K 70 SI X from series Standard Line Chrome
S 181 234 100 K 70 C X 200 N	chrome	234 mm	100 mm	Rotatable, Height adjustable	S 181 234 100 K 70 C X 200 N from series Standard Line Chrome
S 256 308 157 K 70 C X 200 N	chrome	308 mm	157 mm	Rotatable, Height adjustable	S 256 308 157 K 70 C X 200 N from series Standard Line Chrome
S 201 245 121 K 85 C X 200	chrome	245 mm	121 mm	Rotatable, Height adjustable	S 201 245 121 K 85 C X 200 from series Standard Line Chrome
S 215 267 122 K 70 C X	chrome	267 mm	122 mm	Rotatable, Height adjustable	S 215 267 122 K 70 C X from series Standard Line Chrome
S 235 261 140 K 115 C X	chrome	261 mm	140 mm	Rotatable, Height adjustable	S 235 261 140 K 115 C X from series Standard Line Chrome
S 235 286 132 K 95 C X	chrome	286 mm	132 mm	Rotatable, Height adjustable	S 235 286 132 K 95 C X from series Standard Line Chrome
S 256 300 165 K 70 C X	chrome	300 mm	165 mm	Rotatable, Height adjustable	S 256 300 165 K 70 C X from series Standard Line Chrome
S 290 343 192 K 105 C X	chrome	343 mm	192 mm	Rotatable, Height adjustable	S 290 343 192 K 105 C X from series Standard Line Chrome
S 375 431 262 K 70 C X	chrome	431 mm	262 mm	Rotatable, Height adjustable	S 375 431 262 K 70 C X from series Standard Line Chrome
S 305 368 200 K 85 C X	chrome	373 mm	192 mm	Rotatable, Height adjustable	S 305 368 200 K 85 C X from series Standard Line Chrome
S 181 234 100 K 70 C X	chrome	234 mm	100 mm	Rotatable, Height adjustable	S 181 234 100 K 70 C X from series Standard Line Chrome
S 305 365 200 K 70 C X	chrome	365 mm	200 mm	Rotatable, Height adjustable	S 305 365 200 K 70 C X from series Standard Line Chrome
S 305 373 192 K 50 C X	chrome	373 mm	192 mm	Rotatable, Height adjustable	S 305 373 192 K 50 C X from series Standard Line Chrome
S 455 515 261 K 70 C X	chrome	515 mm	261 mm	Rotatable, Height adjustable	S 455 515 261 K 70 C X from series Standard Line Chrome
